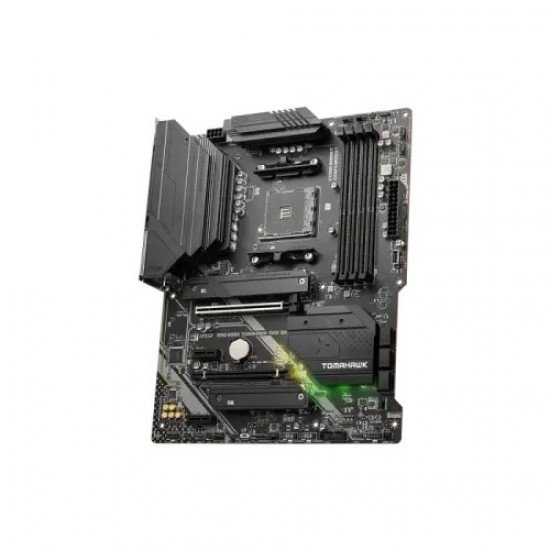

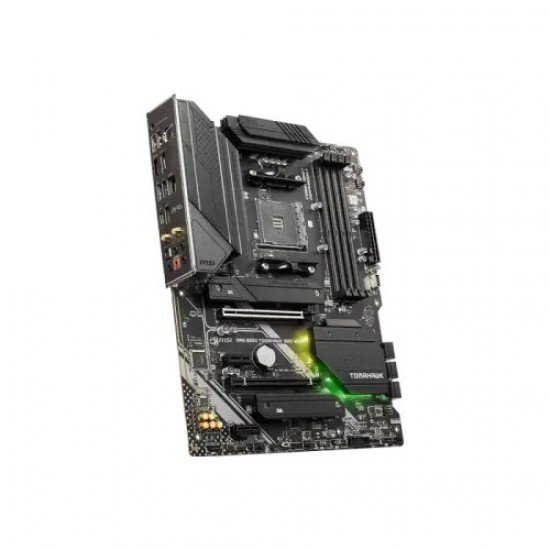

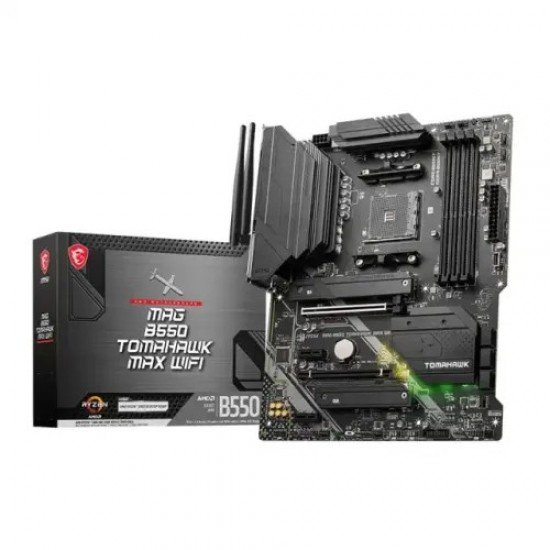

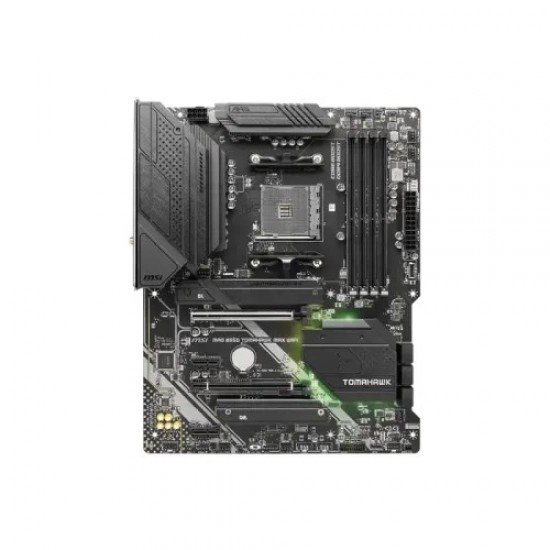

MSI MAG B550 TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard

-12 % Out Of Stock

MSI MAG B550 TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard

Stock: Out Of Stock
Brand: MSI
Model: MAG B550 TOMAHAWK MAX WIFI

Based on 1 reviews. - Write a review

TBA

Out Of Stock

Key Features

- Supported CPU: Ryzen 5000, 5000 G, 4000G, and 3000 Series for Socket AM4
- Supported RAM: 4x DDR4, up to 5100+(OC) MHz
- Graphics Output: 1x HDM, 1x DisplayPort
- Features: 2x M.2, 2.5G LAN and AMD Wi-Fi 6E

View More Info

Specification

Physical Specification
Slots	4
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODEbr> 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Maximum Memory	128GB
Basic Information
Supported CPU	Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
Chipset	AMD B550 Chipset
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Type	DDR4
Expansion Slots
PCI	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slots
Graphics
Graphics	1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz Support HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
Max Shared Memory	16 GB
Connector & Ports
HDMI	1x HDMI
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Display Port (s)	1x DisplayPort
USB (s)	AMD B550 Chipsetbr 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)	1x Realtek RTL8125B 2.5Gbps LAN controller
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA
Supported Storage	AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	3 Years

Description

MSI MAG B550 TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard

The MSI MAG B550 TOMAHAWK MAX WIFI is a premium ATX motherboard designed for AMD AM4 processors, offering exceptional performance, advanced connectivity, and reliable stability for gaming enthusiasts, content creators, and high-performance PC builders. Supporting AMD Ryzen 5000, 5000 G-Series, 4000G, and 3000 Series processors, this motherboard ensures optimal power delivery, high-speed computing, and seamless multitasking. Built around the AMD B550 chipset, the TOMAHAWK MAX WIFI provides PCIe 4.0 support for next-generation graphics cards and ultra-fast NVMe storage. It features two M.2 slots, including one supporting PCIe 4.0 x4 and SATA 6Gb/s, allowing users to install high-speed storage devices and enhance system responsiveness. Additionally, it offers six SATA 6Gb/s ports for additional drives, ensuring ample storage options for games, media, and applications. The motherboard also supports RAID 0, 1, and 10 configurations for both SATA and M.2 drives, providing flexible storage performance and redundancy options. Memory support includes four DDR4 DIMM slots with dual-channel architecture, accommodating up to 128GB RAM. With A-XMP OC modes, users can achieve memory speeds of up to 5100+ MHz, ensuring high-speed data transfer, fast loading times, and smooth multitasking. For connectivity, the motherboard comes with 2.5Gbps LAN and pre-installed Wi-Fi 6E, supporting MU-MIMO TX/RX and Bluetooth 5.2, enabling fast, stable wireless networking. Multiple USB ports, including USB 3.2 Gen2 Type-C, Gen1, and USB 2.0, provide versatile connectivity for peripherals and external devices. Display options include HDMI 2.1 and DisplayPort, supporting up to 4K resolution. The TOMAHAWK MAX WIFI features enhanced audio with the Realtek ALC897 codec, 7.1-channel high-definition sound, and S/PDIF support. Its robust thermal design, multiple fan headers, and RGB/ARGB connectors ensure efficient cooling and customizable aesthetics. With a 3-year warranty, this motherboard combines reliability, performance, and advanced features, making it an ideal choice for powerful AMD systems.

Features Of MSI MAG B550 TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard

Broad CPU Compatibility: Supports AMD Ryzen 5000, 5000 G-Series, 4000G, and 3000 Series processors on the AM4 socket, providing powerful performance for gaming, streaming, and professional workloads.
High-Speed Memory Support: Four DDR4 DIMM slots with dual-channel architecture, supporting up to 128GB RAM and overclocking up to 5100+ MHz via A-XMP, enabling smooth multitasking, faster data transfer, and enhanced system responsiveness.
Next-Generation PCIe & Storage: Includes 1 PCIe 4.0 x16 slot, 1 PCIe 3.0 x16 slot, 2 PCIe 3.0 x1 slots, and 2 M.2 slots (PCIe 4.0/3.0) with six SATA 6Gb/s ports, providing flexible, ultra-fast storage and expansion options.
Advanced Networking: Features high-speed 2.5Gbps LAN and pre-installed AMD Wi-Fi 6E with MU-MIMO TX/RX and Bluetooth 5.2 support, ensuring stable and fast wired or wireless connectivity for online gaming and data-intensive tasks.
High-Definition Audio: Realtek ALC897 7.1-channel codec with S/PDIF output delivers immersive and clear sound for gaming, music, and multimedia applications.
Customizable Cooling & RGB Support: Equipped with multiple fan headers, CPU and water-pump connectors, 4-pin RGB and 3-pin ARGB headers for efficient cooling and full system customization.
Durability & Reliability: Built with a robust thermal solution and premium components, backed by a 3-year warranty, ensuring stable power delivery, long-lasting performance, and dependable operation under heavy workloads.
