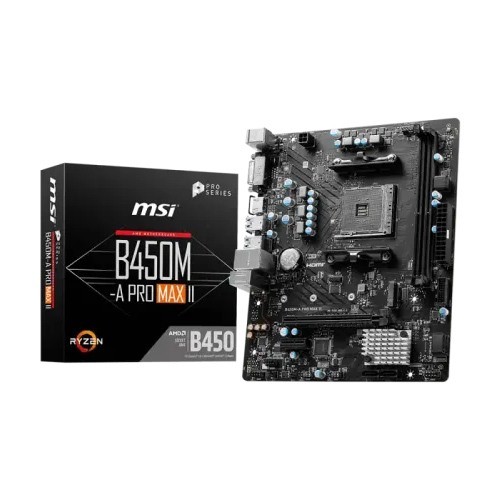

MSI B450M-A PRO MAX II AMD AM4 Motherboard

MSI B450M-A PRO MAX II AMD AM4 Motherboard

The MSI B450M-A PRO MAX II AMD AM4 Motherboard is a feature-rich and reliable motherboard designed for AMD desktop processors, making it an ideal choice for both gamers and professionals seeking stable performance and expandability. Supporting a wide range of CPUs, including AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, 3000, 3000 G-Series, 2000, 2000 G-Series, 1000 Series, and Athlon processors with Radeon Vega Graphics, this motherboard offers extensive compatibility for both current and previous-generation AMD systems. Built on the AMD B450 chipset with a Micro-ATX form factor (200mm x 236mm), it fits easily into compact to mid-sized cases without sacrificing functionality. For expansion, it provides one PCIe 3.0 x16 slot for high-performance graphics cards and one PCIe 2.0 x1 slot for additional expansion cards, giving users flexibility to enhance their systems. Storage options include one M.2 slot supporting PCIe 3.0 x4 or SATA devices (2242/2260/2280) and four SATA 6Gb/s ports, with RAID 0, 1, and 10 support for reliable and fast data management. Memory is handled efficiently with dual DDR4 DIMM slots, supporting up to 64GB of RAM in dual-channel mode. It supports a wide range of speeds from 2667 MHz to 4133 MHz via A-XMP overclocking, and is compatible with non-ECC and ECC UDIMM (non-ECC mode) memory, ensuring stable multitasking and professional workloads. Connectivity is extensive with HDMI 1.4 supporting up to 4K at 24Hz and DVI-D supporting 1920x1200 at 60Hz for integrated graphics, along with USB 3.2 Gen1 and USB 2.0 ports for peripherals. Networking is powered by a Realtek 8125 2.5Gbps LAN controller, providing fast and reliable connectivity. Audio is handled by the Realtek ALC897 codec, offering 7.1-channel high-definition sound for gaming and media. Additional features include multiple internal headers for fans, front-panel connectivity, and a TPM 2.0 header for enhanced security. With a 3-year manufacturing warranty, the MSI B450M-A PRO MAX II delivers durability, performance, and the essential features needed for building a robust AMD desktop system.

Features Of MSI B450M-A PRO MAX II AMD AM4 Motherboard

• CPU Compatibility: Supports AMD AM4 socket CPUs, including Ryzen 1000, 2000, 3000, 4000 G-Series, 5000 Series, and Athlon processors with Vega Graphics.
• Form Factor: Compact Micro-ATX (200mm × 236mm), fits small to mid-sized cases.
• Memory Support: DDR4 RAM, 2 DIMM slots, up to 64GB, dual-channel support, XMP overclocking up to 4133 MHz.
• Storage Options: 1× PCIe Gen3 x4 M.2 slot (NVMe SSD support) and 4× SATA 6Gb/s ports for SSDs and HDDs.
• Expansion Slots: 1× PCIe 3.0 x16 slot for graphics cards, 1× PCIe 2.0 x1 slot for expansion cards.
• Graphics Output (with APU): 1× HDMI (4K @ 24Hz), 1× DVI-D (1920×1200 @ 60Hz).
• Networking: 2.5 Gbps LAN (Realtek 8125) for fast and stable network connections.
• Audio: Realtek ALC897 Codec, 7.1-channel HD audio for gaming, multimedia, and professional use.
• Connectivity: Rear I/O USB 3.2 Gen1 and USB 2.0 ports, plus front-panel USB header support.
• Durable Build & Power Delivery: Core Boost design with premium components for stable power delivery and multi-core Ryzen CPU support.
