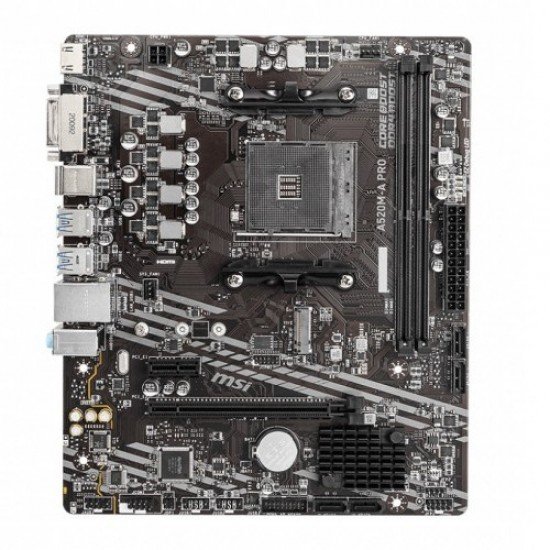

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard

The MSI A520M-A Pro AM4 Micro-ATX Motherboard is a reliable and high-performance motherboard designed to support AMD Ryzen processors, making it an ideal choice for both casual users and professionals building desktop PCs. Compatible with AMD Ryzen 5000 and 4000G Series, as well as Ryzen 3rd Generation processors, this motherboard offers excellent versatility and future-proofing for various computing needs. Built on the AMD A520 chipset, the A520M-A Pro provides a compact Micro-ATX form factor (9.3 in. x 7.9 in.), allowing it to fit comfortably in smaller cases while still offering plenty of connectivity and expansion options. Users can expand their systems through a PCIe 3.0 x16 slot for graphics cards and a PCIe 3.0 x1 slot for additional expansion cards. Storage is well-supported with four SATA 6Gb/s ports and an M.2 slot (Key M), compatible with PCIe 3.0 NVMe SSDs and SATA drives of various sizes (2242/2260/2280), providing fast and flexible storage options. The motherboard supports dual-channel DDR4 memory through two DIMM slots, with speeds ranging from 1866 MHz to 4600+ MHz (OC mode), and maximum capacity of 64GB. It supports non-ECC and ECC memory in non-ECC mode, making it suitable for both general computing and light workstation tasks. For connectivity, the motherboard includes multiple USB ports, including USB 3.2 Gen 1 and USB 2.0, HDMI 2.1 and DVI-D outputs for integrated graphics, and a Realtek RTL8111H Gigabit LAN controller for stable network connections. Audio is powered by the Realtek ALC892 codec, delivering 7.1-channel high-definition sound. Additional features include support for RAID 0, 1, and 10 configurations, TPM module support, and multiple internal headers for system fans, power connectors, and front-panel interfaces. Backed by a 3-year warranty, the MSI A520M-A Pro offers durability, reliability, and the essential features needed for building a stable and efficient AMD-based desktop system.

Features of MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard

• Wide Processor Compatibility: Supports AMD Ryzen 5000/4000G Series and 3rd Generation Ryzen processors, providing excellent versatility for gaming, productivity, and professional workloads.
• Robust Memory Support: Dual-channel DDR4 memory architecture with 2 DIMM slots, supporting up to 64GB RAM and overclocking speeds up to 4600+ MHz via A-XMP OC mode for smooth multitasking and high-performance applications.
• Enhanced Storage Options: Includes 1 M.2 slot (Key M) for PCIe 3.0 NVMe SSDs and 4 SATA 6Gb/s ports, supporting 2242/2260/2280 drives, offering fast, flexible, and reliable storage configurations.
• Premium Graphics & Expansion: Equipped with 1 PCIe x16 slot and 1 PCIe 3.0 x1 slot for graphics cards and expansion cards, supporting light gaming, workstation setups, and future upgrades.
• High-Quality Audio: Realtek ALC892 codec delivers 7.1-channel high-definition audio for immersive sound, suitable for gaming, media, and online conferencing.
• Advanced Connectivity: Features multiple USB ports including USB 3.2 Gen 1 and USB 2.0, HDMI 2.1 and DVI-D outputs, and Realtek Gigabit LAN controller for stable networking and peripheral integration.
• Reliability & Protection: PCB with 2OZ thickened copper, Core Boost, Turbo M.2, Audio Boost, TPM support, RAID 0/1/10 compatibility, and backed by a 3-year warranty, ensuring durable and secure system performance.
