- Stock: In Stock
- Brand: GIGABYTE
- Model: B550M Aorus Elite
Key Features
- AMD Ryzen 5000/4000G Series and AMD Ryzen 3rd Generation Processors
- Blazing Fast 2.5GbE LAN
- Q-Flash Plus Update BIOS
- Ultra Durable PCIe 4.0 x16 Slot
| Physical Specification | |
| Type | Dual-Channel Architecture |
| Slots | 4 x DDR4 memory slots |
| Supported Memory | 3rd Gen AMD Ryzen Processors: Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules |
| Max. Memory | support up to 128GB |
| Basic Information | |
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors |
| Chipset | AMD B550 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode - New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: - Supporting PCIe 3.0 x2 mode 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode |
| M.2 Socket | 1 x PCI Express x16 slot (PCIEX16), integrated into the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated into the Chipset: Supporting PCIe 3.0 x1 mode |
| Graphics | |
| Graphics | Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Max Shared Memory | 16 GB |
| Connector & Ports | |
| HDMI | x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| USB (s) | 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
| Others Information | |
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Warranty Information | |
| Manufacturing Warranty | 03 years warranty |

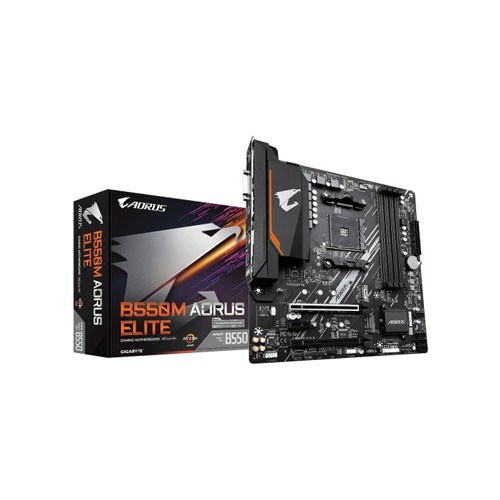

Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard
The Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard is designed to deliver exceptional performance, reliability, and flexibility for gamers and creators alike. Built with the AMD B550 chipset, it supports the latest AMD Ryzen 5000 and 3rd Gen processors, offering next-generation speed and performance. With high-speed memory support, PCIe 4.0 compatibility, RGB Fusion lighting, and durable components, this motherboard provides the perfect balance between innovation and value.
High-Performance CPU and Memory Support
The B550M Aorus Elite supports a wide range of AMD Ryzen 5000/4000G/3000 series processors, ensuring smooth performance for gaming and productivity. With 4 DDR4 slots supporting up to 128GB dual-channel memory and speeds of up to 4733MHz (OC), users can enjoy faster data access, superior multitasking, and optimized system responsiveness. Whether for gaming or heavy workloads, it delivers outstanding stability and speed.
Advanced Graphics and Expansion Options
This motherboard is ideal for gamers and professionals who require flexibility. It features PCIe 4.0 x16 support for the latest graphics cards, ensuring blazing-fast data transfer and excellent frame rates. The HDMI and DVI-D ports support resolutions up to 4K @ 60Hz, providing crystal-clear visuals. Combined with the Adreno GPU compatibility, users can enjoy both high performance and reliable visual output.
Superior Storage and Connectivity
Gigabyte ensures maximum flexibility with multiple M.2 NVMe slots and 4 SATA 6Gb/s ports, supporting RAID 0, 1, and 10 configurations. You can easily expand storage and achieve ultra-fast data access speeds. The Realtek GbE LAN chip guarantees stable wired connections for gaming and work, while multiple USB 3.2 Gen 1 and USB 2.0 ports offer broad connectivity for peripherals and accessories.
Crystal-Clear Audio and RGB Customization
Experience immersive sound with the Realtek ALC887 codec, delivering high-definition audio through 7.1-channel output. Perfect for music, movies, and gaming, this ensures rich sound detail and precision.
In addition, RGB Fusion support allows users to customize lighting across components, giving their PC build a unique and dynamic look.
Smart Features and Durable Build
The Gigabyte B550M Aorus Elite comes with a range of smart utilities, including EasyTune, Q-Flash Plus, Fast Boot, Smart Backup, and App Center. These tools make system customization, BIOS updates, and monitoring simple and efficient. Built with high-quality capacitors and solid power phases, the motherboard ensures longevity and stable performance under heavy loads.
Form Factor and Build Quality
With a compact Micro ATX (24.4cm x 24.4cm) form factor, the motherboard is suitable for small and mid-tower PC builds without compromising on expansion options. It features multiple fan headers and LED strip connectors, keeping your system cool and visually appealing during high-performance tasks.
Why Choose Gigabyte B550M Aorus Elite
-
Supports AMD Ryzen 5000 / 4000G / 3000 Series CPUs
-
DDR4 up to 4733MHz (OC) and 128GB capacity
-
Dual M.2 slots and 4 SATA ports with RAID support
-
PCIe 4.0 for next-gen GPUs
-
RGB Fusion & Smart Fan 5 for enhanced control
-
Backed by 3 Years Official Warranty
Enhance your PC build with the Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard a powerhouse of performance, reliability, and customization.
