| Key Features | ||
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |

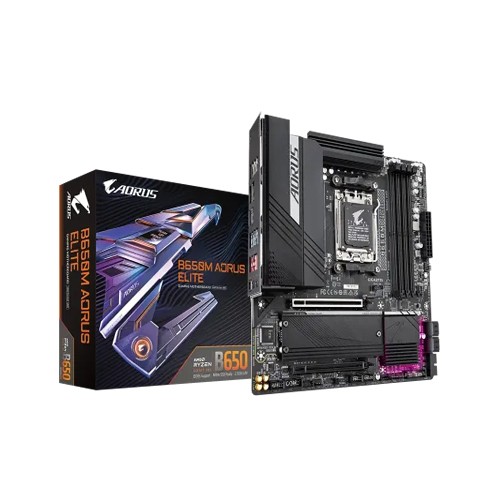

| Model | B650M AORUS ELITE | |
| Cooler Features | ||
| Specialty | Support for GIGABYTE Control Center (GCC) <br> * Available applications in GCC may vary by motherboard model. <br> Supported functions of each application may also vary depending on motherboard specifications. <br> Support for Q-Flash <br> Support for Q-Flash Plus | |
| General | ||
| Type | DDR5 | |
| Display | 2 x DisplayPorts | |
| Physical Specification | ||
| Supported Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules <br> Dual channel memory architecture <br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules <br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | |
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors | |
| BIOS | 1 x 256 Mbit flash <br> Use of licensed AMI UEFI BIOS <br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Audio | Realtek Audio CODEC <br> High Definition Audio <br> 2/4/5.1/7.1-channel <br> * You can change the functionality of an audio jack using the audio software. <br> To configure 7.1-channel audio, access the audio software for audio settings. <br> Support for S/PDIF Out | |
| Chipset | ||
| Chipset | AMD B650 | |
| Motherboard | ||
| Graphics | ntegrated Graphics Processor: <br> 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz <br> * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz <br> * Support for HDMI 2.1 version and HDCP 2.3. <br> ** Support native HDMI 2.1 TMDS compatible ports. Support for up to 3 displays at the same time | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector <br> 1 x 8-pin ATX 12V power connector <br> 1 x CPU fan header <br> 3 x system fan headers <br> 1 x addressable LED strip header <br> 1 x RGB LED strip header <br> 2 x M.2 Socket 3 connectors <br> 4 x SATA 6Gb/s connectors <br> 1 x front panel header <br> 1 x front panel audio header <br> 1 x USB Type-C header, with USB 3.2 Gen 2 support <br> 1 x USB 3.2 Gen 1 header <br> 2 x USB 2.0/1.1 headers <br> 1 x serial port header <br> 1 x reset button <br> 1 x reset jumper <br> 1 x Clear CMOS jumper | |
| Slots | 4 DIMMs | |
| Supported Storage | CPU: 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors | |
| USB Port | CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support <br> 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU + USB 2.0 Hub: <br> 4 x USB 2.0/1.1 ports on the back panel Chipset: <br> 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header <br> 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) <br> 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Connector & Ports | ||
| HDMI | 1x HDMI | |
Building a future-ready PC starts with choosing the right motherboard, and the GIGABYTE B650M AORUS ELITE DDR5 AMD AM5 Micro-ATX Motherboard is designed to deliver exceptional performance, reliability, and upgrade flexibility. Whether you're assembling a powerful gaming rig, a professional workstation, or a content creation setup, this motherboard provides a solid foundation for AMD Ryzen 7000 Series and newer AM5 processors.
With support for high-speed DDR5 memory, advanced PCIe connectivity, efficient thermal management, and multiple storage options, this motherboard ensures your system remains responsive and capable under demanding workloads. Its Micro-ATX form factor makes it suitable for compact builds without sacrificing essential features or expansion capabilities.
The AORUS series is known for premium engineering, and the B650M AORUS ELITE continues that tradition by offering stability, durability, and optimized power delivery. Users looking for a motherboard that balances performance, value, and future-proof technology will appreciate the extensive feature set packed into this board. From competitive gaming and multitasking to video editing and streaming, this motherboard helps unlock the full potential of modern AMD processors while providing room for future upgrades.
The GIGABYTE B650M AORUS ELITE DDR5 AMD AM5 Micro-ATX Motherboard is an excellent choice for users who want powerful performance, reliable stability, and future-ready technology in a compact form factor. Whether you're building a new gaming PC or upgrading an existing system, this motherboard provides the essential features needed for modern computing. Explore more Motherboards, gaming components, processors, memory, and PC upgrade solutions at Index IT. Order today and build a high-performance Gigabyte AMD Motherboard designed to handle gaming, productivity, and professional workloads with ease.
The latest price of GIGABYTE B650M AORUS ELITE DDR5 AMD AM5 Micro-ATX Motherboard in Bangladesh is 27,700৳ You can buy the GIGABYTE B650M AORUS ELITE DDR5 AMD AM5 Micro-ATX Motherboard at best price from our Website or visit any of our showrooms.
