- Stock: In Stock
- Brand: MSI

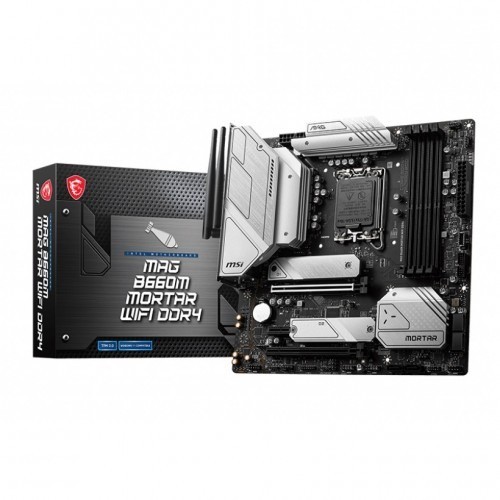

- Model: B660M MORTAR WIFI DDR4
Key Features
- Supported Processors: 14th, 13th & 12th Gen Intel Core, Pentium Gold & Celeron
- Supported socket: LGA 1700 socket
- Supported Memory: DDR4, up to 4800+(OC) MHz
- 2.5G LAN and Intel Wi-Fi Solution
| Physical Specification | |
| Slots | 4x DDR4 memory slots |
| Supported Memory | Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Maximum Memory | support up to 128GB |
| Basic Information | |
| Supported CPU | Supports 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processor socket LGA1700 |
| Chipset | Intel B660 Chipset |
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Audio | Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Type | DDR4 |
| Expansion Slots | |
| PCI | 2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot |
| M.2 Socket | 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory |
| Graphics | |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2 |
| Connector & Ports | |
| HDMI | HDMI 2.1 Port (BACK PANEL PORTS) |
| Display Port (s) | DisplayPort 1.4 (BACK PANEL PORTS) |
| USB (s) | Intel B660 Chipset 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
| LAN Port (s) | 2.5G LAN Port |
| Wireless Communication module | Intel Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 |
| Supported Storage | 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 1 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory |
| Audio | 7.1-Channel High Definition Audio Supports S/PDIF output |
| Internal I/O Ports | INTERNAL CONNECTORS: 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector BACK PANEL PORTS: USB 2.0 Port USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| Others Information | |
| Special Features | Supports 2-Way AMD CrossFire Technology |
| Warranty Information | |
| Warranty | 3 years warranty |
MSI MAG B660M MORTAR WIFI DDR4 Price in Bangladesh – Reliable Performance for Modern PC Builds
Building a high-performance PC requires more than just a powerful processor and graphics card. The motherboard acts as the foundation of your entire system, determining stability, connectivity, upgrade options, and overall user experience. The MSI MAG B660M MORTAR WIFI DDR4 is designed for users who want premium features, excellent durability, and advanced connectivity without overspending on unnecessary extras. Whether you're assembling a gaming rig, a productivity workstation, or a versatile home PC, this motherboard delivers the performance and reliability modern users demand.
Featuring Intel's B660 chipset, support for 12th Generation Intel processors, DDR4 memory compatibility, and built-in Wi-Fi connectivity, this motherboard offers an ideal balance between performance and value. Its Micro-ATX form factor makes it suitable for compact builds while still providing extensive expansion and storage options. MSI’s military-inspired MAG series is known for robust power delivery, efficient cooling solutions, and long-term stability, making it a trusted choice among gamers, creators, and PC enthusiasts alike.
If you're searching for a motherboard that combines fast networking, dependable performance, future-ready features, and easy installation, the MSI MAG B660M MORTAR WIFI DDR4 stands out as an excellent investment. It helps create a smoother computing experience while giving you the flexibility to upgrade your system as your needs evolve.
Why the MSI MAG B660M MORTAR WIFI DDR4 Is a Smart Choice for Your Next Build
- Built-In Wi-Fi Convenience: Enjoy wireless networking without purchasing additional adapters, reducing clutter and simplifying your setup.
- Optimized for Intel 12th Gen CPUs: Unlock the full potential of modern Intel processors for gaming, streaming, multitasking, and productivity workloads.
- DDR4 Memory Compatibility: Continue using cost-effective DDR4 RAM while achieving impressive system performance and responsiveness.
- Reliable Power Delivery: High-quality components and power design help maintain system stability during demanding workloads and gaming sessions.
- Fast Storage Support: Multiple M.2 and SATA options allow quicker boot times, faster application loading, and efficient data management.
- Compact Yet Expandable Design: The Micro-ATX form factor fits a wide range of cases while still providing essential expansion capabilities.
- Enhanced Cooling Features: Integrated heatsinks and thermal solutions help maintain lower temperatures and improve overall system reliability.
- Ideal for Gaming Setups: Designed with gamers in mind, offering stable performance, low-latency connectivity, and support for modern graphics hardware.
- Future Upgrade Flexibility: Ample connectivity options make it easier to add storage devices, peripherals, and expansion cards later.
- Trusted MSI Build Quality: MSI’s reputation for durable motherboards ensures long-term confidence and dependable daily performance.
What Buyers Are Saying About the MSI MAG B660M MORTAR WIFI DDR4
The MSI MAG B660M MORTAR WIFI DDR4 consistently receives positive feedback from PC builders and gamers who appreciate its balance of features, stability, and value. Many users highlight the straightforward installation process and the convenience of integrated Wi-Fi, eliminating the need for extra networking hardware. Buyers also praise its solid construction, efficient thermal design, and dependable performance during extended gaming sessions and productivity tasks.
Users frequently mention that the motherboard offers premium-level features at a competitive price point. The combination of DDR4 support, excellent connectivity, and strong compatibility with Intel processors makes it a popular choice for both first-time builders and experienced enthusiasts.
Upgrade Your System Today with MSI MAG B660M MORTAR WIFI DDR4
If you're planning a new PC build or upgrading your existing setup, the MSI MAG B660M MORTAR WIFI DDR4 delivers the performance, connectivity, and reliability needed for today's computing demands. Its combination of Intel platform support, wireless networking, efficient cooling, and expansion flexibility makes it an outstanding motherboard for gaming and professional workloads alike.
Explore the latest Motherboard collection at Index IT and find the perfect hardware for your next build. Order the MSI MAG B660M MORTAR WIFI DDR4 today to enjoy a stable, future-ready platform designed to maximize the value of your investment.
