| DVR / NVR / XVR Specification | |
| Auxiliary Interface | USB : 2 × USB 2.0 |
| Display | Interface : HDMI and VGA independent outputs (DS-7608NI-Q1 and DS-7616NI-Q1) Resolution : HDMI output resolution : 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA output resolution : 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Decoding Capacity : 1-ch @ 8 MP / 4-ch @ 1080p/8-ch @ 1080p |
| Network | nterface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface Ethernet Port : 1 Network Function : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS |
| Playback and Backup | Sync Playback : Yes ( 16-ch )H.265+/H.265/H.264/H.264+ Playback Function : live view, storage, and playback Backup Mode : USB Device/Network |
| Recording | Compression : H.265+/H.265/H.264/H.264+ Resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF Record Rate : 160 Mbps |
| Storage | HDD Mode : 1 SATA interface Up to 6TB capacity for each disk |
| Video and Audio | IP Camera Input : Up to 16 IP cameras can be connected HDMI/VGA simultaneous output (DS-7604NI-Q1) Two-Way Talk : 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Power | Power Supply : 12 VDC Power Consumption : Power : ≤ 18W Consumption (without hard disk ) : ≤ 10 W |
| Physical Specification | |
| Weight | disk) ≤ 1 kg (2.2 lb) |
| Dimension | 315 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
| Warranty Information | |
| Warranty | 01 year warranty |

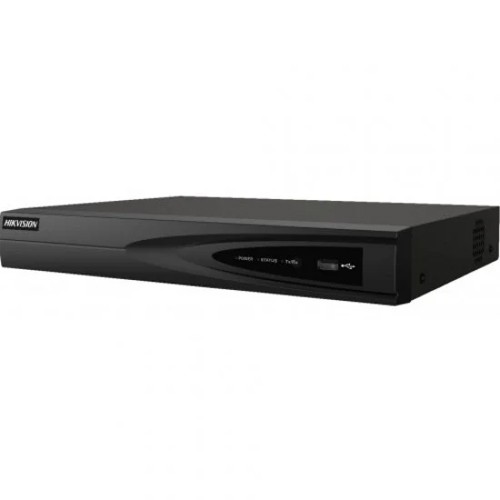

The Hikvision DS-7616NI-Q1 16 Channel Network Video Recorder (NVR) is a powerful and reliable surveillance solution designed for modern IP-based security systems. Built with advanced decoding, recording, and network management capabilities, this NVR is ideal for commercial, corporate, and large residential surveillance environments. It supports up to 16 IP cameras, allowing users to build a comprehensive monitoring system with high flexibility and scalability. This NVR delivers stunning video clarity with HDMI and VGA independent outputs, supporting up to 4K (3840×2160) resolution at 30Hz, along with Full HD and multiple display formats. Its strong decoding capacity allows playback of 1 channel at 8MP, 4 channels at 1080p, or 8 channels at 1080p, ensuring smooth and detailed video performance. The device uses advanced H.265+/H.265/H.264+/H.264 compression, significantly reducing storage consumption while maintaining excellent video quality. For recording, the DS-7616NI-Q1 supports resolutions up to 8MP with a high incoming bandwidth of 160 Mbps, ensuring stable video streams from multiple cameras. Storage is managed through a single SATA interface supporting up to 6TB hard drive capacity, providing sufficient space for long-term recording. Backup is easy via USB devices or network transfer. Network connectivity is optimized with a Gigabit Ethernet interface and wide protocol support, including Hik-Connect, DDNS, NTP, SMTP, NFS, iSCSI, and HTTPS, enabling secure remote monitoring from anywhere. The system also supports 16-channel synchronous playback, two-way audio communication, and smooth live viewing. Designed for efficiency, the NVR operates on 12V DC power, consumes minimal energy, and features a compact, lightweight build for easy installation. With a 1-year warranty, the Hikvision DS-7616NI-Q1 16 Channel NVR offers dependable performance, advanced security management, and professional-grade surveillance control for any modern security setup.
The Hikvision DS-7616NI-Q1 16 Channel Network Video Recorder (NVR) is designed to deliver powerful surveillance performance with smooth operation and reliable storage management. It is an ideal solution for medium to large IP camera security systems that require high-definition monitoring and stable recording. Below are its key benefits:
Supports Up to 16 IP Cameras: Allows flexible expansion of your surveillance network.
4K Ultra HD Display Output: Provides crystal-clear video playback through HDMI.
Advanced Compression Technology: H.265+ reduces storage usage while maintaining quality.
High Recording Bandwidth: 160 Mbps ensures stable recording from multiple cameras.
Wide Resolution Support: Records from QCIF up to 8MP resolution cameras.
Smooth Multi-Channel Playback: Supports 16-channel synchronous playback.
Secure Remote Monitoring: Access your system anytime via Hik-Connect and web browsers.
Dual Display Output: Independent HDMI and VGA outputs for flexible viewing.
Large Storage Support: SATA interface supports up to 6TB HDD.
Low Power Consumption: Energy-efficient design ensures long-term operation.
With these advantages, the Hikvision DS-7616NI-Q1 delivers professional-level surveillance performance with excellent reliability. This advanced NVR from Hikvision is ideal for commercial and residential security installations and is available at Index IT, your trusted source for authentic security solutions.
