| Brand |
Hikvision |
| Model |
Hikvision DS-7116HQHI-K1 |
| Type |
Turbo HD DVR |
| Video Input Channel (BNC) |
16-channel, BNC Interface (1.0Vp-p, 75 omega) |
| Video Compression/Format |
H.265 Pro+/ H.265 Pro/ H.265/ H.264+/ H.264 |
| Video Output (VGA) |
1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Output (HDMI) |
1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Recording Res. |
4MP, 3MP, 1080p, 720p, VGA, WD1, 4CIF, CIF |
| Max. Video Recording Res. |
1080p |
| Video Bit Rate |
32 Kbps to 6 Mbps |
| IP Video Input |
2-channel (up to 18-ch) |
| Analog & HD-TVI Video Input |
1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 |
| Audio Input Channel (RCA) |
1-channel, RCA (2.0 Vp-p, 1K omega) |
| Audio Compression |
G.711u |
| Audio Output Channel |
1-channel, RCA (Linear, 1K omega) |
| Two-way Audio |
1-channel, RCA (2.0 Vp-p, 1K omega) |
| Audio Bit Rate |
64 Kbps |
| Frame Rate |
Main stream: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF 15fps, 1080p/720p 15fps; VGA/WD1/4CIF/CIF 25fps (P)/30fps (N), 720p/VGA/WD1/4CIF/CIF 25fps (P)/30fps (N) |
| Stream Type |
Video/Video & Audio |
| Dual Stream Support |
Yes |
| Live View / Playback Resolution |
3 MP/ 1080p/ 720p/ VGA/ WD1/ 4CIF/ CIF |
| Synchronous Playback |
16-channel |
| Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Number HDD Interface (SATA) |
1 SATA |
| Max HDD Support (GB,TB) |
Up to 6TB capacity for each disk |
| Max. Storage Support |
6TB |
| eSATA |
No |
| Network Interface (RJ45) |
1, RJ45 10M/100M self-adaptive Ethernet interface |
| Serial Interface |
No |
| USB Port |
2 x USB2.0 |
| Remote Connections |
128 |
| CVBS Input |
Yes |

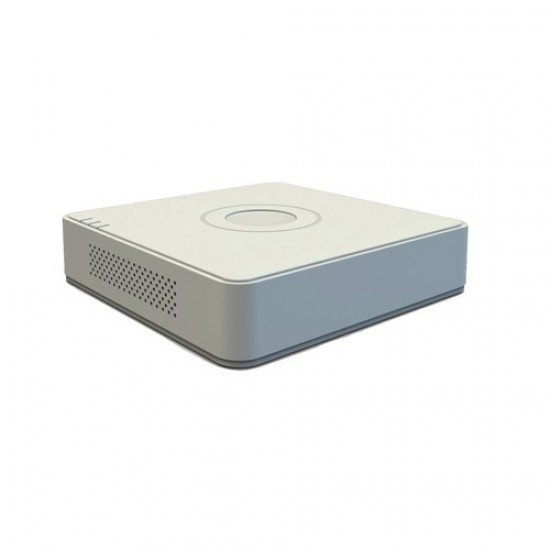

Hikvision DS-7116HQHI-K1 16 Channel HD 1080p HD DVR
The Hikvision DS-7116HQHI-K1 is a cutting-edge 16-channel High Definition (HD) Digital Video Recorder (DVR) designed to deliver top-notch video surveillance capabilities. With its advanced features and robust specifications, this DVR is an ideal solution for security applications requiring high-resolution monitoring. Equipped with Turbo HD technology, the DS-7116HQHI-K1 supports a variety of video inputs, including analog and HD-TVI, allowing users to integrate both traditional analog cameras and high-definition cameras seamlessly. The 16-channel BNC interface ensures comprehensive coverage, making it suitable for medium to large-scale surveillance setups. The DVR boasts impressive video recording capabilities, supporting resolutions up to 1080p for crystal-clear imagery. Its flexible video compression formats, including H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264, optimize storage space without compromising on video quality. This ensures efficient utilization of resources while maintaining high standards of surveillance Users can conveniently monitor and playback footage with multiple resolution options, ranging from 3 MP to 720p, providing flexibility in managing storage and bandwidth. The HDMI and VGA video outputs offer versatile display options, supporting resolutions such as 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, and 1024 x 768/60Hz. Additionally, the DS-7116HQHI-K1 prioritizes audio integration with one audio input channel, supporting G.711u compression. It also features two-way audio communication via a dedicated RCA channel. The DVR's compatibility with up to 6TB storage capacity per disk ensures ample space for extended video retention. With network connectivity through TCP/IP, PPPoE, DHCP, Hik-Connect, and more, users can access live feeds remotely. The mini 1U chassis design, along with low power consumption, makes it suitable for various environments. The Hikvision DS-7116HQHI-K1 16 Channel HD 1080p HD DVR combines advanced technology, versatile connectivity, and robust performance, making it an excellent choice for demanding surveillance applications where high-quality video and reliable functionality are paramount.
Special Benefits of Hikvision DS-7116HQHI-K1 16 Channel DVR
The Hikvision DS-7116HQHI-K1 is a powerful 16-channel HD DVR designed to provide high-quality video recording and seamless surveillance management for large-scale security setups. Its robust performance, flexible connectivity, and advanced features make it ideal for homes, offices, retail stores, and commercial environments that require reliable monitoring.
Special Benefits:
-
16-Channel Support: Connects up to 16 HD cameras for comprehensive coverage of large areas.
-
Full HD 1080p Recording: Ensures sharp and detailed video capture for accurate monitoring.
-
Hybrid DVR Functionality: Supports HD-TVI, AHD, CVI, and CVBS cameras for versatile integration.
-
High Storage Capacity: Compatible with large-capacity HDDs, allowing extended recording periods.
-
Synchronous Playback: Watch multiple channels simultaneously for efficient incident review.
-
Remote Monitoring: Access your cameras anytime, anywhere via Hik-Connect or web interface.
-
Energy Efficient & Reliable: Low power consumption ensures stable operation and long-term durability.
-
User-Friendly Interface: Simplifies navigation, configuration, and monitoring for quick setup and management.
Enhance your security network with the Hikvision DS-7116HQHI-K1 DVR and experience reliable, high-definition surveillance across multiple locations. This product is listed under our DVR category and demonstrates the trusted performance of Hikvision security solutions. Get it today from Index IT, your go-to source for genuine products and professional support.
