| Port Number | 24 × 10/100 Mbps PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port |
| Port Type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Working Mode | Standard mode (default); Extend mode |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Forwarding Mode | Store-and-forward switching |
| Ports For Long-Distance Transmission | Ports 17 to 24 |
| MAC Address Table | 4k |
| Internal Cache | 2.75 Mbits |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 6.547 Mpps |
| High Priority Ports | Ports 1 to 8 |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Port | Ports 1 to 24 |
| Max. Port Power | 30 W |
| PoE Power Budget | 230 W |
| Long Range | Ports 17 to 24: up to 300 m; and the speed rate of the port is 10 Mbps. |
| Dimension (W × H × D) | 335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |

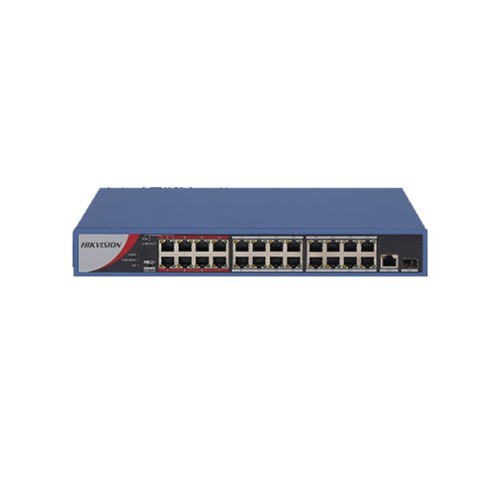

Hikvision DS-3E0326P-E/M(B) 24 Port Fast Ethernet Unmanaged POE Switch
Hikvision DS-3E0326P-E/M(B) is a versatile 24-port Fast Ethernet unmanaged PoE switch, designed to provide robust connectivity and power solutions for a variety of network applications. This switch is particularly ideal for environments requiring reliable connections for multiple devices, such as IP cameras, wireless access points, and VoIP phones.
Equipped with 24 PoE ports, each capable of delivering up to 30 W of power, the DS-3E0326P-E/M(B) supports a total PoE power budget of 230 W. This allows for the simultaneous powering of numerous devices without the need for additional power sources, streamlining installation and reducing cable clutter. Additionally, the switch features one gigabit RJ45 port and one gigabit fiber optical port, providing high-speed connectivity options for data-intensive applications.
The switch adheres to IEEE networking standards, including IEEE 802.3, IEEE 802.3u, and IEEE 802.3x, ensuring compatibility with a wide range of devices. With a MAC address table capacity of 4,000 entries and an internal cache of 2.75 Mbits, it efficiently manages network traffic, enhancing overall performance. The switching capacity of 8.8 Gbps and a packet forwarding rate of 6.547 million packets per second (Mpps) ensure smooth data transmission across the network.
Designed for durability, the DS-3E0326P-E/M(B) operates within a temperature range of -10 °C to 55 °C (14 °F to 131 °F) and can withstand storage temperatures of -40 °C to 85 °C (-40 °F to 185 °F). Its compact dimensions (335 mm × 44.5 mm × 226 mm) make it easy to install in various settings, whether desk-mounted or wall-mounted.
With its combination of advanced features, ease of use, and robust performance, the Hikvision DS-3E0326P-E/M(B) is an excellent choice for enhancing your network capabilities, providing both power and data connectivity in a single, efficient package.
