| Brand | Hikvision |
| Model | Hikvision DS-2CD1343G2-LIU |
| Usage | Outdoor |
| Type | IP Camera |
| Camera | Fixed |
| Mega Pixels | 4.0MP |
| Max. Camera Resolution | 2560 x 1440 |
| Image Sensor | 1/3 Inch Scan CMOS |
| Resolution | 2560 x 1440 |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Night Vision | Yes |
| Night Vision Mode | Black and White |
| Lens | 2.8mm |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| PTZ | No |
| Viewing Angle | Horizontal: 98°, Vertical: 54°, Diagonal: 114° |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Dual-Stream | Yes |
| Frame Rate | 50 Hz: 20 fps, 25 fps, 60 Hz: 20 fps, 24 fps |
| Digital Noise Reduction (DNR) | 3D DNR |
| Wide Dynamic Range (WDR) | 120 dB |
| Interface(s) | 1 x RJ45 10 M/100 M self-adaptive Ethernet port |
| Wi-Fi | No |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Password Protection | Yes |
| Watermark | Yes |
| Motion Detection | Yes |
| Human Detection | Yes |
| Dust Protection | Yes |
| Water Protection | Yes |
| Simultaneous Live View | Up to 6 channels |
| Video Type | H.265+/ H.265/ H.264+/ H.264 |
| Wavelength | 850 nm |
| Mic & Speaker | Only Mic |
| Audio Communication | No |
| Input Trigger | Motion detection |
| Ingress Protection Grade | IP67 |
| Working Distance | 30 Meter |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Form-Factor | Turret |
| Card Slot | No |
| Storage Type | No |
| Body Material | Metal + Plastic |
| Color | White |
| Dimensions | 110 x 89.2 mm |
| Weight (gm) | 340 gm |
| Power | 12 VDC +/- 25%, 0.4 A, max. 5 W, 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| Approx. Power Consumption | 6.5W |
| Operating Temperature | -30°C to 60°C |
| Storing/Storage Temperature | -30°C to 60°C |
| Operating Humidity | 95% or less (non-condensing) |
| Storing/Storage Humidity | 95% or less (non-condensing) |
| Warranty | 1 Year |

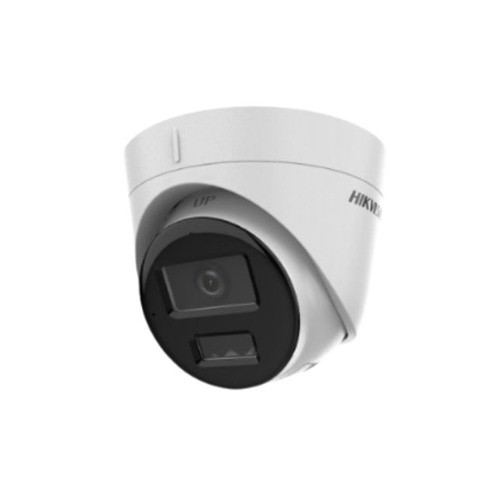

Hikvision DS-2CD1343G2-LIU 4MP Smart Hybrid Light Fixed Turret Network Camera
Hikvision DS-2CD1343G2-LIU is a high-performance 4MP Smart Hybrid Light fixed turret network camera designed for outdoor surveillance. With a robust 1/3 inch Progressive Scan CMOS image sensor, it delivers stunning image quality with a maximum resolution of 2560 x 1440 pixels, ensuring that every detail is captured clearly. The camera features a 2.8mm lens, providing a wide viewing angle of 98° horizontally, 54° vertically, and 114° diagonally, making it ideal for monitoring expansive areas.
Equipped with advanced Smart Hybrid Light technology, the DS-2CD1343G2-LIU enhances visibility in low-light conditions by combining infrared and white light illumination. This capability allows for effective night vision, with a range of up to 30 meters, ensuring reliable performance even in complete darkness. The camera also features a wide dynamic range (WDR) of 120 dB, which helps to produce clear images in challenging lighting situations, such as backlighting.
Security is a top priority with this camera, which includes multiple protective features such as password protection, watermarking, and various authentication methods to safeguard against unauthorized access. The camera is also rated IP67 for dust and water resistance, making it suitable for outdoor use in various weather conditions.
With a compact design measuring 110 x 89.2 mm and weighing approximately 340 g, the DS-2CD1343G2-LIU is easy to install and integrate into existing surveillance systems. It supports Power over Ethernet (PoE) for flexible installation options and operates efficiently in temperatures ranging from -30°C to 60°C. Backed by a 1-year warranty, this camera is an excellent choice for those seeking a reliable and feature-rich surveillance solution that combines advanced imaging technology with user-friendly functionality.
