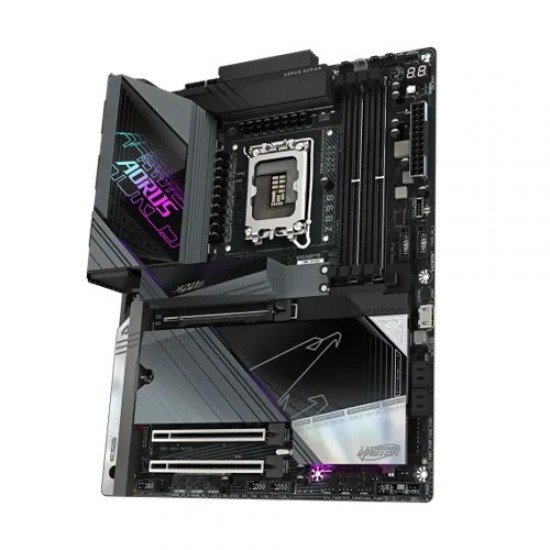

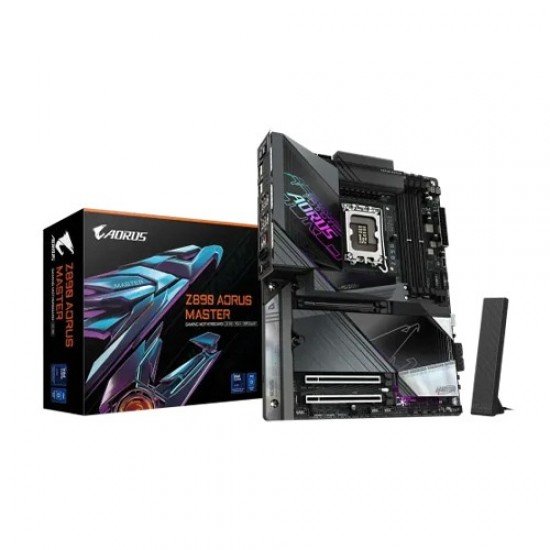

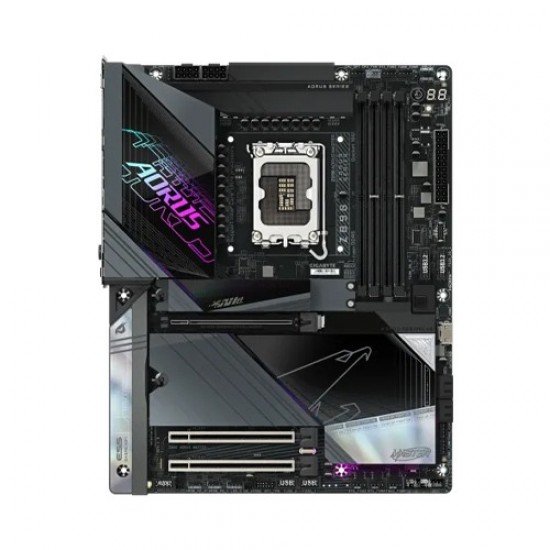

Name: Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard
Brand: GIGABYTE
Price: 80500.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard

-1 % In Stock

Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard

Stock: In Stock
Brand: GIGABYTE
Model: Z890 AORUS MASTER

Based on 1 reviews. - Write a review

80,500৳

81,000৳

Ex Tax: 80,500৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9500(O.C)
- Graphics Output: 1x HDMI, 1x DisplayPort, 2 x (USB4 Type-C port Supports DisplayPort),
- Features: 5x M.2, Intel Wi-Fi 7, Bluetooth 5.4

View More Info

Specification

Basic Information
Supported CPU	Intel Core Ultra Processors(Series 2)
Chipset	Intel Z890 Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek® ALC1220 CODEC * The front panel line out jack supports DSD audio. ESS ES9118 DAC chip Support for DTS:X® Ultra High Definition Audio 2/4/5.1-channel * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX16 slot shares bandwidth with the M2D_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2D_CPU connector. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
M.2 Socket	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module
Maximum Memory	256GB (64 GB single DIMM capacity) of system memory
Graphics
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.) * Support for DisplayPort 2.1 version and HDCP 2.3 - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version. (Graphics specifications may vary depending on CPU support.)
Connector & Ports
HDMI	1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Display Port (s)	2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
LAN Port (s)	Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel® Wi-Fi 7 BE200NGW - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors
Audio	1 x front panel audio header 2 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 4 x system fan/water cooling pump headers 4 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others Information
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Warranty Information
Warranty	3 Year Warranty

Description

Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard

The Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard is a premium, high-performance platform designed for gamers, content creators, and PC enthusiasts who demand cutting-edge technology and reliability. Built on the Intel Z890 chipset, it fully supports Intel Core Ultra Processors (Series 2), offering exceptional multitasking and gaming performance. Its ATX form factor (30.5cm x 24.4cm) ensures broad compatibility with most PC cases while providing ample room for expansion. Memory performance is exceptional with 4 DDR5 DIMM slots, supporting speeds up to DDR5 9500(O.C.) and a maximum capacity of 256GB, including XMP and CUDIMM modules. The motherboard offers versatile PCIe slots, including a PCIe 5.0 x16 slot for graphics cards or NVMe SSDs, along with multiple PCIe 4.0 slots for additional expansion cards. Storage options are extensive with five M.2 connectors and four SATA 6Gb/s ports, supporting both PCIe and SATA SSDs and RAID 0, 1, 5, and 10 for high-speed and reliable storage setups. Audio quality is crystal clear, powered by Realtek ALC1220 CODEC and ESS ES9118 DAC, supporting 2/4/5.1-channel audio and DTS:X Ultra. Connectivity includes Intel Wi-Fi 7, Bluetooth 5.4, 10GbE LAN, Thunderbolt 4 / USB4 Type-C, and HDMI 1.4 for versatile display options. Additional features include RGB LED headers, multiple fan and pump headers, Q-Flash Plus, and GIGABYTE Control Center for easy system monitoring. With a 3-year manufacturing warranty, the Gigabyte Z890 AORUS MASTER ensures reliability, making it a future-proof choice for building high-end gaming rigs or professional workstations.

Features Of Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard

Supported CPU: Compatible with Intel Core Ultra Processors (Series 2) on LGA 1851 socket, ensuring powerful performance for gaming, content creation, and professional workloads.
Memory Support: Equipped with 4 DDR5 DIMM slots, supporting speeds up to DDR5 9500(O.C.) and a maximum capacity of 256GB, including XMP and CUDIMM modules for extreme overclocking.
Graphics Output: Provides versatile display options with 1 HDMI 1.4 port, 1 DisplayPort, and 2 USB4 Type-C ports with Thunderbolt 4 support, capable of high-resolution output up to 5120x2880@60Hz.
Advanced Storage: Features 5 M.2 slots and 4 SATA 6Gb/s connectors, supporting PCIe 5.0/4.0 SSDs, SATA drives, and RAID 0, 1, 5, 10 configurations for fast and reliable storage solutions.
Connectivity: Includes Intel Wi-Fi 7, Bluetooth 5.4, and 10GbE LAN, delivering ultra-fast, stable wireless and wired networking performance.
Audio Excellence: Built-in Realtek ALC1220 CODEC and ESS ES9118 DAC with DTS:X Ultra support deliver rich 2/4/5.1-channel high-definition audio.
Extra Features: Supports GIGABYTE Control Center, Q-Flash Plus, multiple fan and RGB headers, and comes with a 3-year warranty, providing full system monitoring, customization, and peace of mind.
