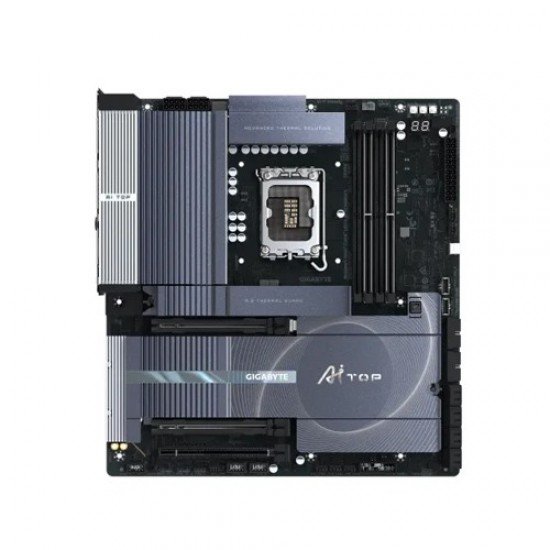

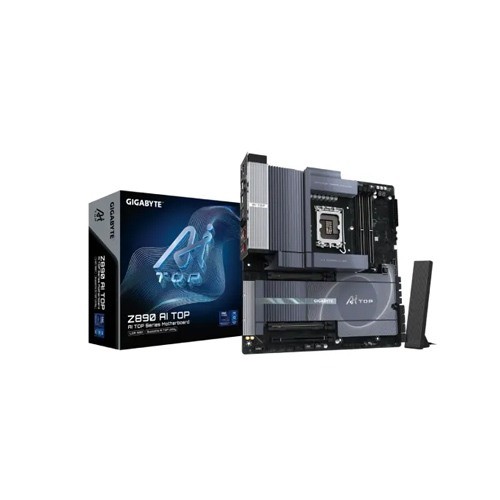

Name: Gigabyte Z890 AI TOP WIFI7 LGA 1851 EATX Motherboard
Brand: GIGABYTE
Price: 87600.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

Gigabyte Z890 AI TOP WIFI7 LGA 1851 EATX Motherboard

-2 % In Stock

Gigabyte Z890 AI TOP WIFI7 LGA 1851 EATX Motherboard

Stock: In Stock
Brand: GIGABYTE
Model: Z890 AI TOP

Based on 1 reviews. - Write a review

87,600৳

89,000৳

Ex Tax: 87,600৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9500(O.C)
- Graphics Output: 1x HDMI, 1 x Intel Thunderbolt 4 connector (USB4 Type-C port),
- Features: 4x M.2, Intel Wi-Fi 7, Bluetooth 5.4

View More Info

Specification

Basic Information
Supported CPU	Intel Core Ultra Processors (Series 2)
Chipset	Intel Z890 Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	E-ATX Form Factor; 30.5cm x 28.5cm
Audio	ESS ES9260 CODEC (rear panel audio) - High Definition Audio - 2-channel Realtek ALC897 CODEC (front panel audio)
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
M.2 Socket	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2L_SB) - 4 x SATA 6Gb/s connectors (SATA3 4~7) Chipset+ASMedia® ASM1164 chip: - 4 x SATA 6Gb/s connectors (SATA3 0~3)
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	Support for DDR5 9500(O.C)/ 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module
Maximum Memory	256GB
Graphics
Graphics	Integrated Graphics Processor+Intel® Thunderbolt 5 Controller: - 2 x Intel Thunderbolt 5 connectors (USB4 USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 7680x4320@60 Hz (single display output) Integrated Graphics Processor-Intel® HD Graphics support: - 1 x Front Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). * Support for DisplayPort 2.1 version and HDCP 2.3 - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. (Graphics specifications may vary depending on CPU or graphics card support.) Support for up to triple-display at the same time
Connector & Ports
HDMI	1 x HDMI
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB (s)	Chipset+Intel® Thunderbolt™ 5 Controller: - 2 x Intel® Thunderbolt™ 5 (USB Type-C®) ports on the back panel Support up to 80Gbps with Thunderbolt devices Support up to 40Gbps with USB4 devices *Support up to 20Gbps with USB 3.2 devices CPU: - 1 x USB4® USB Type-C® port onboard - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 3.2 Gen 2 Hub: - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	2 x Marvell AQtion AQC113C 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel Wi-Fi 7 BE200 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard
Supported Storage	- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors
Audio	2 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port) 2 x USB Type-C® headers, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x noise detection header Back Panel Connectors 1 x DisplayPort In port 1 x HDMI port (Note) 2 x audio jacks 2 x Intel® Thunderbolt 5 connectors (USB Type-C® ports) 2 x USB 3.2 Gen 1 ports 6 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x RJ-45 ports
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others Information
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Warranty Information
Warranty	3 Year Warranty

Description

Gigabyte Z890 AI TOP WIFI7 LGA 1851 EATX Motherboard

The Gigabyte Z890 AI TOP WIFI7 LGA 1851 EATX Motherboard is a premium motherboard designed for enthusiasts, gamers, and professionals who demand ultimate performance and connectivity. Built on the Intel Z890 chipset, it supports the latest Intel Core Ultra Processors (Series 2), offering unparalleled computing power for multitasking, gaming, and content creation. Its E-ATX form factor (30.5cm x 28.5cm) provides ample space for expansion and advanced cooling solutions. Equipped with 4 DDR5 DIMM slots, the motherboard supports up to 256GB of memory with speeds up to 9500(O.C.) MT/s, ensuring lightning-fast performance and stability. Storage is highly versatile, with 4 M.2 slots and 8 SATA 6Gb/s connectors, all supporting RAID 0, 1, 5, and 10, enabling high-speed data access and reliable backups. For graphics, it features 1 HDMI port and Intel Thunderbolt 4/5 USB Type-C connectors, supporting DisplayPort and Thunderbolt video outputs up to 7680x4320@60Hz, allowing triple-display setups for immersive visuals. Integrated networking includes dual 10GbE LAN ports, Intel Wi-Fi 7, and Bluetooth 5.4, delivering ultra-fast wired and wireless connectivity. Additional features include Q-Flash & Q-Flash Plus, Smart Backup, GIGABYTE Control Center (GCC) support, and TPM module compatibility for enhanced security. The motherboard also provides extensive USB connectivity, RGB headers, and high-quality audio with ESS ES9260 and Realtek ALC897 codecs. With a 3-year warranty and bundled Norton Internet Security, the Gigabyte Z890 AI TOP WIFI7 is an ideal choice for building high-end gaming rigs, professional workstations, or next-generation PCs that demand speed, reliability, and cutting-edge technology.

Features Of Gigabyte Z890 AI TOP WIFI7 LGA 1851 EATX Motherboard

Supports Intel Core Ultra Processors (Series 2): Latest LGA 1851 CPUs for high-performance computing and gaming.
High-Speed DDR5 Memory: 4 DIMM slots supporting up to 256GB, with memory overclocking up to 9500(O.C.) MT/s and XMP profiles.
Advanced Graphics Support: 1 HDMI port, Thunderbolt 4/5 USB Type-C connectors, supporting resolutions up to 7680x4320@60Hz and triple-display setups.
Versatile Storage Options: 4 M.2 slots and 8 SATA 6Gb/s connectors with RAID 0, 1, 5, 10 support for NVMe and SATA drives.
Cutting-Edge Networking: Dual 10GbE LAN ports, Intel Wi-Fi 7, and Bluetooth 5.4 for fast and reliable connectivity.
Extensive I/O and Expansion: Multiple USB 3.2 Gen 2/1 ports, USB Type-C headers, RGB and fan headers for full customization.
Robust Utility & Security: Supports Q-Flash Plus, Smart Backup, GIGABYTE Control Center, and TPM for system security and easy firmware updates.
