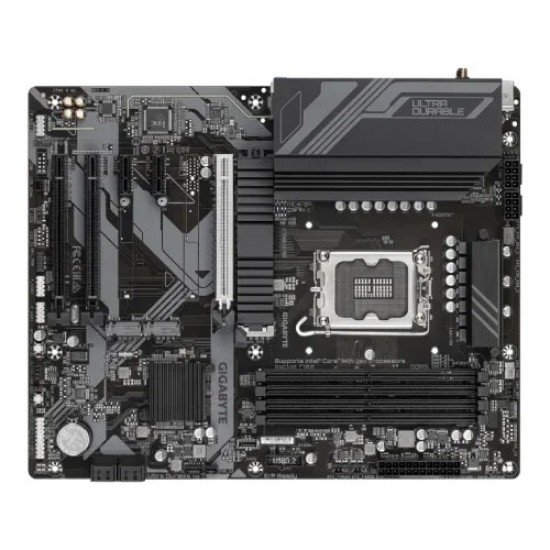

Name: GIGABYTE Z790 D AX DDR5 ATX Motherboard
Brand: GIGABYTE
Price: 29500.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

-2 % In Stock

GIGABYTE Z790 D AX DDR5 ATX Motherboard

Stock: In Stock
Brand: GIGABYTE
Model: Z790 D AX

Based on 1 reviews. - Write a review

29,500৳

30,000৳

Ex Tax: 29,500৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
- Supported RAM: 4 x DDR5 DIMMs 7600(OC), up to 256 GB
- Graphics Output: 1 x HDMI, 1 x DisplayPort
- Features: 2.5GbE LAN, WiFi-6E, Bluetooth 5.3

View More Info

Specification

Physical Specification
Slots	4 x DIMM sockets
Supported Memory	7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	128GB (32 GB single DIMM capacity)
Basic Information
Supported CPU	LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset	Intel Z790 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Type	DDR5
Expansion Slots
PCI	CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) Support for AMD CrossFire technology (PCIEX16 and PCIEX4)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Connector & Ports
HDMI	1 x HDMI
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Display Port (s)	1 x DisplayPort
USB (s)	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) 6 x SATA 6Gb/s connectors
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others Information
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Warranty Information
Warranty	3 years

Description

GIGABYTE Z790 D AX DDR5 ATX Motherboard

The GIGABYTE Z790 D AX DDR5 ATX Motherboard is a high-performance motherboard designed to support the latest Intel platforms, offering exceptional power, expandability, and connectivity for gamers, content creators, and PC enthusiasts. Built with the Intel Z790 Express chipset and featuring an LGA1700 socket, it fully supports Intel’s 12th, 13th, and 14th Generation Core processors, as well as Pentium Gold and Celeron CPUs, delivering reliable processing performance across a wide range of applications. The motherboard supports up to 128GB of DDR5 memory through four DIMM slots, compatible with high-speed modules up to 7600 MHz (OC), dual-channel memory architecture, and XMP profiles, ensuring ultra-fast data access for gaming and professional workloads. For graphics, it includes a PCIe 5.0 x16 slot for the primary GPU, along with additional PCIe 4.0 and 3.0 slots, supporting AMD CrossFire multi-GPU setups. Integrated Intel HD Graphics provide HDMI 2.0 and DisplayPort 1.2 outputs, supporting resolutions up to 4096x2160@60Hz. Audio capabilities are powered by Realtek High Definition Audio CODEC, supporting 2/4/5.1/7.1-channel output with S/PDIF connectivity, and customizable through GIGABYTE’s audio software. Storage options are extensive, with three M.2 slots and six SATA 6Gb/s connectors, along with RAID 0, 1, 5, and 10 support for both NVMe and SATA devices. The motherboard also offers robust connectivity, including 2.5GbE LAN, Wi-Fi 6E, and Bluetooth 5.2, along with multiple USB Type-C and Type-A ports for high-speed data transfer. Internal headers support additional USB, RGB, fan, and Thunderbolt expansions, while the motherboard features Q-Flash Plus, Smart Backup, and GIGABYTE Control Center for efficient system management. Built in ATX form factor (30.5cm x 24.4cm), the Z790 D AX DDR5 combines premium durability, versatile connectivity, and advanced features, making it an ideal foundation for high-performance PCs, whether for gaming, content creation, or professional computing. Its 3-year manufacturing warranty ensures long-term reliability and peace of mind. This motherboard is a perfect blend of cutting-edge technology and practical functionality, designed to meet the demands of modern computing enthusiasts.

Features Of GIGABYTE Z790 D AX DDR5 ATX Motherboard

Supported CPU: Compatible with 14th, 13th, and 12th Generation Intel Core processors, as well as Pentium Gold and Celeron CPUs via LGA1700 socket, delivering exceptional processing performance.
High-Speed DDR5 Memory: Supports up to 128GB DDR5 RAM across 4 DIMM slots, with speeds up to 7600 MHz (OC), dual-channel architecture, XMP profile support, and compatibility with ECC and non-ECC un-buffered memory modules.
Advanced Graphics Support: Features PCIe 5.0 x16 slot for high-performance GPUs, additional PCIe 4.0/3.0 slots, AMD CrossFire support, and integrated Intel HD Graphics with HDMI 2.0 and DisplayPort 1.2 outputs.
Comprehensive Storage Options: Equipped with 3 M.2 slots and 6 SATA 6Gb/s ports, supporting RAID 0, 1, 5, and 10 for NVMe and SATA devices for fast and reliable storage solutions.
Superior Connectivity: Includes 2.5GbE LAN, Wi-Fi 6E, and Bluetooth 5.2, multiple USB Type-C and Type-A ports, ensuring high-speed wired and wireless connections.
Enhanced Audio: Powered by Realtek High Definition Audio CODEC, supporting 2/4/5.1/7.1-channel output and S/PDIF, with customizable settings through GIGABYTE’s audio software.
Premium Features & Software: Supports GIGABYTE Control Center (GCC), Q-Flash Plus, Smart Backup, and bundled software like Norton Internet Security, offering easy system management, updates, and protection.
