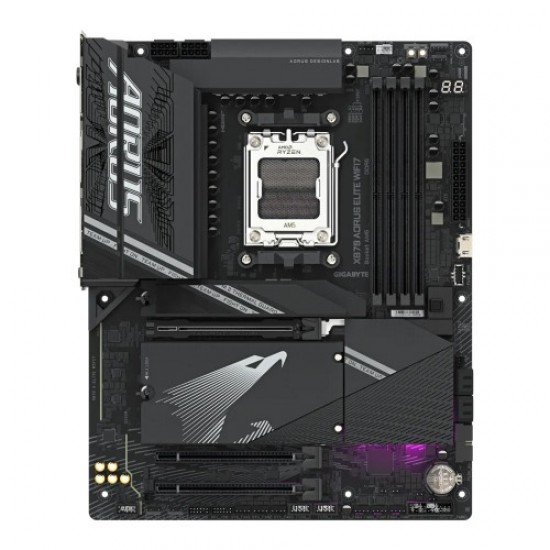

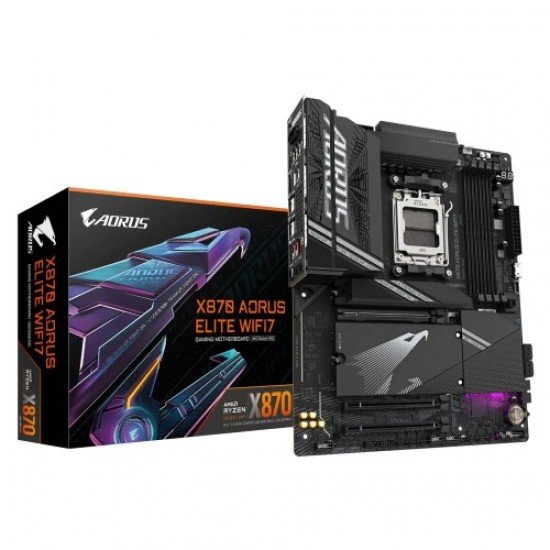

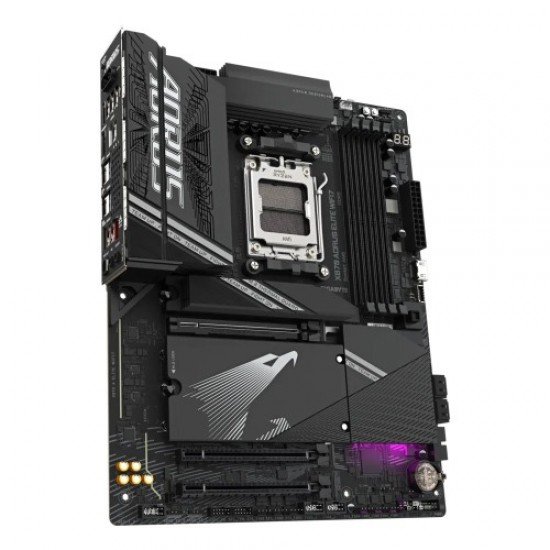

Name: GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard
Brand: GIGABYTE
Price: 45500.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard

-1 % In Stock

GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard

Stock: In Stock
Brand: GIGABYTE
Model: X870 AORUS ELITE WIFI7

Based on 1 reviews. - Write a review

45,500৳

46,000৳

Ex Tax: 45,500৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, Max 256GB
- Graphics Output: 2 x USB4 (Type-C), 1 x HDMI
- Features: Realtek 2.5GbE LAN, MediaTek Wi-Fi 7 MT7925

View More Info

Specification

Physical Specification
Supported Memory	Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memory	up to 256 GB (64 GB single DIMM capacity) of system memory
Basic Information
Supported CPU	AMD Socket AM5, support for: AMD Ryzen 9000, 8000, 7000 Series Processors
Chipset	AMD X870
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Type	DDR5
Expansion Slots
PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Graphics
Graphics	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.
Connector & Ports
HDMI	1 x HDMI port
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB (s)	CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 1 port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 7 x USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
Audio	Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

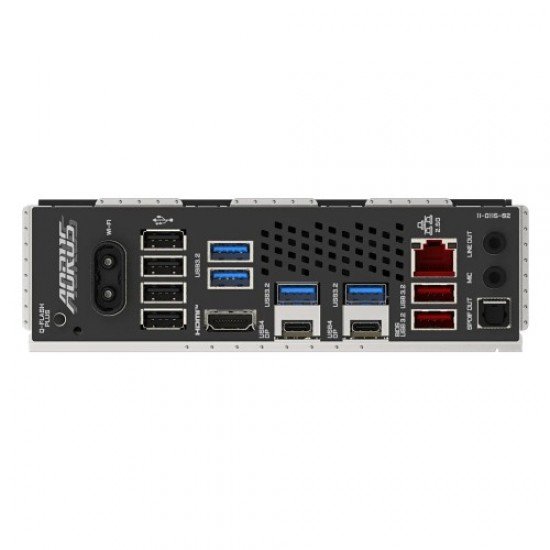

Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x HDMI port (Note) 2 x USB4® USB Type-C® ports (DisplayPort (Note)) 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others Information
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support Smart Backup
Warranty Information
Warranty	3 Years

Description

GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard

The GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard is a premium and future-ready motherboard designed for gamers, creators, and PC enthusiasts who want top-tier performance with next-generation connectivity. Built on the powerful AMD X870 chipset and AM5 socket, it supports the latest AMD Ryzen 7000, 8000, and 9000 Series processors, ensuring excellent computing power, efficiency, and long-term upgrade support. Featuring a full-size ATX form factor, this motherboard offers strong expansion flexibility with a PCIe 5.0 x16 slot for high-end graphics cards and ultra-fast NVMe SSDs when used with Ryzen 7000 and 9000 series CPUs. Storage options are extensive, including up to four M.2 slots and four SATA 6Gb/s ports, along with RAID support for both NVMe and SATA drives to deliver speed, capacity, and reliability. Memory performance is another major strength, with four DDR5 DIMM slots supporting up to 256GB of RAM and overclocked speeds up to 8000MT/s (OC). Support for AMD EXPO and XMP profiles allows easy memory optimization. For display output, the motherboard includes HDMI 2.1, supporting resolutions up to 4K@60Hz, making it suitable for systems using integrated graphics. Connectivity is truly next-gen with MediaTek Wi-Fi 7, Bluetooth 5.4, and a Realtek 2.5GbE LAN, delivering ultra-fast, low-latency networking. Dual USB4 Type-C ports, multiple USB 3.2 ports, and rich internal headers ensure excellent peripheral compatibility. Combined with Realtek ALC1220 audio, Q-Flash Plus, advanced cooling headers, and a 3-year warranty, the GIGABYTE X870 AORUS ELITE WIFI7 is a reliable and powerful foundation for modern AMD PC builds.

Features Of GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard

Next-Gen CPU Support: Compatible with AMD Ryzen 7000, 8000, and 9000 Series processors using the AM5 socket, offering excellent performance and future upgrade support.
High-Speed DDR5 Memory: Supports 4× DDR5 RAM slots with a maximum capacity of 256GB and overclocked speeds up to 8000MT/s, including AMD EXPO and XMP profiles.
PCIe 5.0 Expansion: Equipped with a PCIe 5.0 x16 slot for next-generation graphics cards and ultra-fast NVMe SSDs on supported Ryzen CPUs.
Advanced Storage Options: Features four M.2 slots and four SATA 6Gb/s ports with RAID 0/1/5/10 support for flexible and high-performance storage configurations.
Ultra-Fast Connectivity: Integrated MediaTek Wi-Fi 7, Bluetooth 5.4, and Realtek 2.5GbE LAN ensure fast, stable, and low-latency networking.
Modern I/O & Display: Includes 2× USB4 Type-C ports, multiple USB 3.2 ports, and HDMI 2.1 output supporting up to 4K@60Hz.
Premium Audio & Utilities: Powered by Realtek ALC1220 audio, S/PDIF output, Q-Flash Plus, and GIGABYTE Control Center for easy system management and updates.
