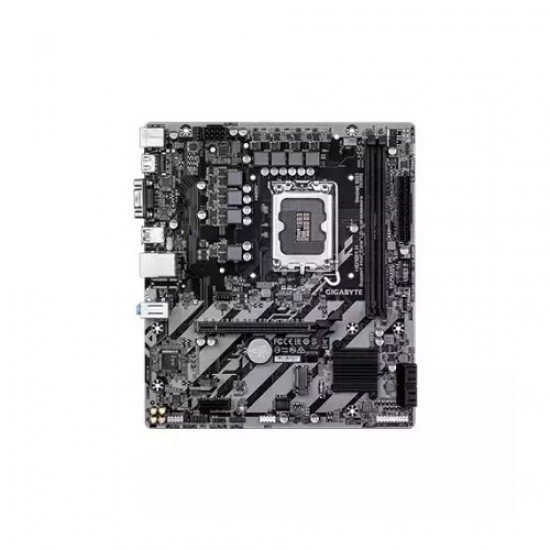

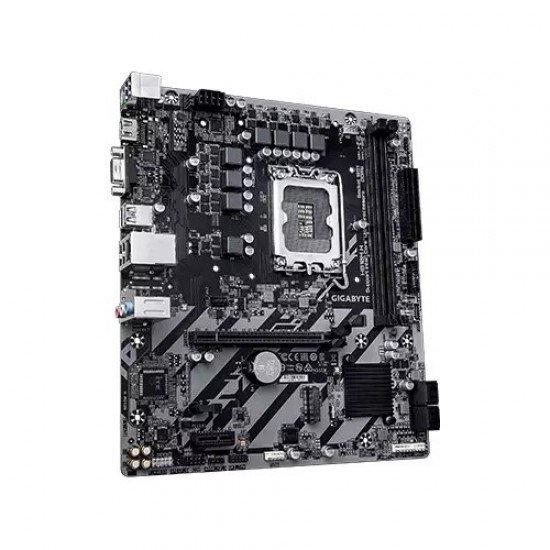

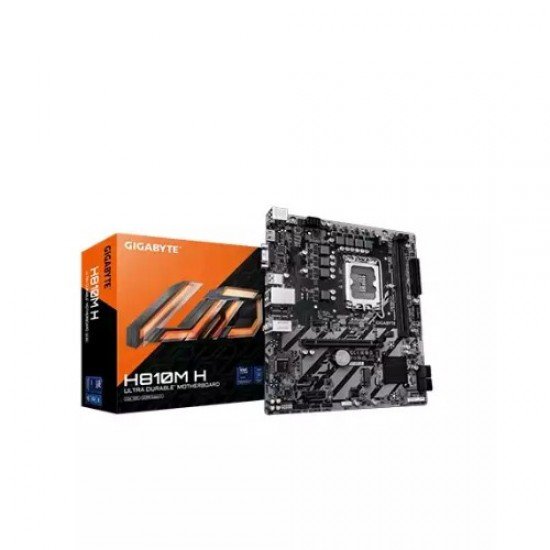

Name: Gigabyte H810M H LGA1851 DDR5 Intel Motherboard
Brand: Gigabyte
Price: 12360.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

Gigabyte H810M H LGA1851 DDR5 Intel Motherboard

-3 % In Stock

Gigabyte H810M H LGA1851 DDR5 Intel Motherboard

Stock: In Stock
Brand: Gigabyte
Model: H810M H

Based on 1 reviews. - Write a review

12,360৳

12,800৳

Ex Tax: 12,360৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- LGA1851 socket
- Intel H810 Express Chipset
- Memory Support DDR5
- 1 x 256 Mbit flash

View More Info

Specification

Physical Specification
Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Basic Information
Supported CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU
Chipset	Intel H810 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory	Support for DDR5 6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz (Graphics specifications may vary depending on CPU support.)
Input Devices
External I/O Ports	1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x D-Sub port 1 x USB 3.2 Gen 1 port 5 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Connectivity
USB	Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports (1 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel
Connector & Ports
HDMI	1 x HDMI port (Note)
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper
Network & Connectivity
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Physical Specification
Form Factor	Micro ATX Form Factor
Warranty Information
Warranty	03 years

Description

Gigabyte H810M H LGA1851 DDR5 Intel Motherboard

The Gigabyte H810M H LGA1851 DDR5 Intel Motherboard is a dependable Micro-ATX motherboard designed for users seeking stable performance, modern features, and long-term reliability with Intel’s latest platform. Powered by the Intel H810 Express Chipset and built on the LGA1851 socket, it fully supports Intel® Core™ Ultra Processors, making it ideal for office work, home PCs, and entry-level productivity systems. This motherboard supports DDR5 memory technology, delivering improved bandwidth and efficiency compared to previous generations. With 2 DDR5 DIMM slots, it supports up to 128GB of system memory in a dual-channel configuration and memory speeds of DDR5 6400/5600 MT/s. Support for XMP profiles allows users to easily optimize memory performance, while compatibility with ECC (non-ECC mode) and non-ECC memory adds flexibility. For display output, the Gigabyte H810M H utilizes Intel HD Graphics, offering both HDMI 2.1 with up to 4K resolution at 60Hz and a D-Sub port for legacy monitors. This makes it suitable for a wide range of display setups. Expansion and storage options include a PCIe 4.0 x16 slot for a graphics card or NVMe SSD, a PCIe 3.0 x1 slot, one M.2 socket, and four SATA 6Gb/s ports for storage devices. Networking is handled by a Realtek Gigabit LAN, ensuring stable wired connectivity. Additional features such as 256 Mbit AMI UEFI BIOS, RGB Gen2 headers, USB Type-C header, TPM support, and comprehensive fan control options enhance usability and system management. With a compact Micro-ATX form factor and a 3-year warranty, the Gigabyte H810M H is a practical and future-ready choice for modern Intel-based PC builds.

Features Of Gigabyte H810M H LGA1851 DDR5 Intel Motherboard

LGA1851 Socket Support: Designed to work seamlessly with the latest Intel® Core™ Ultra Processors, ensuring next-generation performance and efficiency.
Intel H810 Express Chipset: Provides stable system operation, essential connectivity, and optimized compatibility for everyday computing needs.
DDR5 Memory Support: Equipped with 2 DDR5 DIMM slots supporting up to 128GB dual-channel memory for faster multitasking and smoother performance.
Advanced BIOS Design: Features a 1 x 256 Mbit flash AMI UEFI BIOS, offering secure boot, easy configuration, and firmware stability.
Modern Display Outputs: Includes HDMI 2.1 for 4K displays and a D-Sub port for legacy monitor compatibility.
Flexible Expansion & Storage: PCIe 4.0 x16 slot, PCIe 3.0 x1 slot, M.2 connector, and four SATA 6Gb/s ports support multiple upgrade options.
Reliable Connectivity & Build Quality: Realtek Gigabit LAN, USB Type-C header, RGB Gen2 headers, and TPM support ensure a secure, connected, and customizable system experience.
