- Stock: In Stock
- Brand: Gigabyte
- Model: H310M S2H
Key Features
- Supports 9th and 8th Gen Intel Core Processors
- Chipset: Intel H310 Express Chipset
- 2 x DIMM, Max. 32GB DDR4
- 3 x PCIe slots
| Key Features | |
| Type | DDR4 |
| Physical Specification | |
| Max. Memory | 32 GB |
| Basic Information | |
| Supported CPU | Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with CPU |
| Chipset | Intel H310 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
| Others | PCI 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) |
| Memory | |
| Supported Memory | Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core i7/i5 processor. |
| Graphics | |
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. |
| Max Shared Memory | 1 GB |
| Motherboard | |
| Slots | 2 x DIMM sockets |
| Connector & Ports | |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for HDMI 1.4 version and HDCP 2.2. |
| USB (s) | 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Supported Storage | 4 x SATA 6Gb/s connectors |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz The DVI-D port does not support D-Sub connection by adapter. |
| Others Information | |
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install |

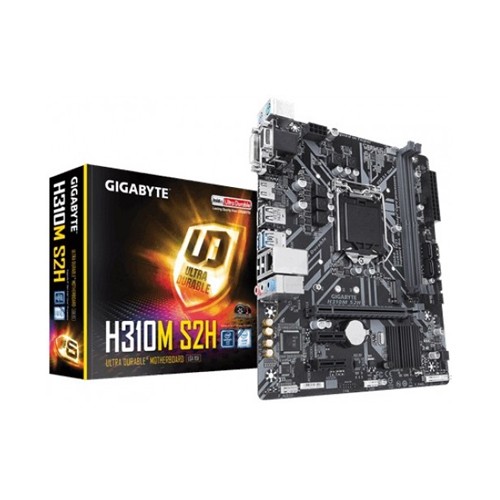

Gigabyte H310M S2H 9th Gen Micro ATX Motherboard
Looking for a reliable and budget-friendly motherboard to build or upgrade your PC? The Gigabyte H310M S2H 9th Gen Micro ATX Motherboard is designed to deliver stable performance, efficient multitasking, and modern connectivity without breaking your budget. Whether you're a student, office user, or casual gamer, this motherboard offers everything you need for a smooth computing experience. Powered by the Intel H310 Express chipset, this board supports both 8th and 9th Generation Intel processors, giving you flexibility and performance for everyday tasks and beyond. With DDR4 memory support up to 32GB, fast M.2 SSD compatibility, and multiple display outputs including HDMI with 4K support, it ensures your system stays fast, responsive, and future-ready. Its compact Micro ATX form factor makes it perfect for smaller builds while still offering essential expansion slots, USB connectivity, and high-quality audio. If you're building a dependable PC for work, study, or light gaming, this motherboard brings the right balance of performance, durability, and value—making it a smart choice for users in Bangladesh.
Key Benefits That Make Your PC Better
- Smooth Multitasking with DDR4 Memory: With support for up to 32GB DDR4 RAM and XMP profiles, you can enjoy faster performance in multitasking, browsing, and productivity applications without lag.
- Fast Storage & Boot Time: The built-in M.2 slot allows you to install high-speed SSDs, significantly reducing boot times and improving overall system responsiveness.
- 4K Display Support for Better Visuals: With HDMI support up to 4096x2160 resolution, you can enjoy crisp visuals for streaming, editing, and casual gaming experiences.
- Flexible Connectivity Options: Multiple USB ports, SATA connectors, and PCIe slots allow easy expansion, letting you connect more devices and upgrade your system effortlessly.
- Reliable Performance with Smart Features: Gigabyte’s smart utilities like EasyTune, Fast Boot, and Smart Backup help optimize system performance, protect data, and improve usability for everyday users.
Why Choose This Motherboard?
1. Trusted Gigabyte Quality: Built with durable components and backed by Gigabyte’s reliability, this motherboard ensures long-term stable performance.
2. Perfect for Budget Builds: It offers essential features like M.2 support, DDR4 memory, and 4K output at an affordable price—ideal for cost-conscious users.
3. Future-Ready Compatibility: Supports both 8th and 9th Gen Intel processors, giving you upgrade flexibility without replacing the entire system.
Upgrade your PC with the powerful and reliable Gigabyte H310M S2H motherboard today. Order now from IndexIT and enjoy the perfect balance of performance, value, and durability for your everyday computing needs!
