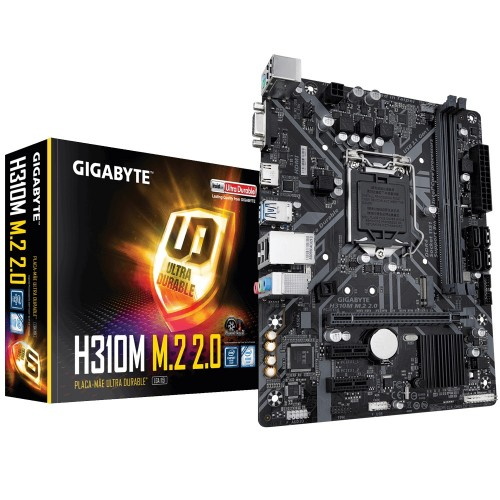

Gigabyte H310M M.2 9th Gen Micro ATX Motherboard

Gigabyte H310M M.2 9th Gen Micro ATX Motherboard

The Gigabyte H310M M.2 9th Gen Micro ATX Motherboard is a compact yet highly capable platform designed for professionals, gamers, and everyday PC users seeking reliable performance in a small form factor. Built on the Intel H310 Express chipset and supporting LGA1151 socket CPUs, this motherboard is compatible with 9th and 8th Generation Intel Core i9, i7, i5, i3 processors, as well as Intel Pentium and Celeron processors, delivering versatile computing power for a wide range of tasks. L3 cache support varies depending on the installed CPU, ensuring optimized performance for both intensive applications and everyday computing. Designed in a Micro ATX form factor (22.6cm x 17.4cm), the H310M M.2 fits easily into smaller cases while offering solid expandability. It includes a PCIe 3.0 x16 slot for modern graphics cards and two PCIe 2.0 x1 slots for additional expansion devices. Memory support includes two DDR4 DIMM slots with dual-channel architecture, supporting speeds from 2133 MHz to 2666 MHz and up to 32GB of system memory. It also supports ECC and non-ECC un-buffered modules, as well as Extreme Memory Profile (XMP) for optimized performance. Storage options are versatile, featuring an M.2 connector (2260/2280) for high-speed SSDs and four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support for data redundancy and faster storage performance. Graphics are powered by integrated Intel HD Graphics, with HDMI and D-Sub outputs supporting resolutions up to 4K (4096x2160@30Hz) and 1920x1200@60Hz, respectively. Connectivity is robust with a Realtek GbE LAN chip, multiple USB 3.1 Gen 1 and USB 2.0 ports, and Realtek ALC887 audio supporting 2/4/5.1/7.1-channel output along with S/PDIF. Additional features include support for Q-Flash, APP Center, EasyTune, AutoGreen, and a TPM header for secure hardware encryption. With its compact design, strong performance, and a 3-year manufacturing warranty, the Gigabyte H310M M.2 9th Gen Micro ATX Motherboard is an ideal choice for cost-effective yet powerful PC builds.

Features Of Gigabyte H310M M.2 9th Gen Micro ATX Motherboard

• Supports 9th and 8th Gen Intel Processors: Compatible with Intel Core i9, i7, i5, i3, Pentium, and Celeron processors in the LGA1151 socket, ensuring versatile performance for gaming, productivity, and multimedia tasks.
• Intel H310 Express Chipset: Delivers reliable system performance, stable data transfer, and support for essential motherboard features for both professional and everyday computing needs.
• Memory Support: 2 x DDR4 DIMM slots supporting dual-channel architecture, speeds up to 2666 MHz, and a maximum capacity of 32GB. Compatible with ECC and non-ECC un-buffered memory modules and supports Extreme Memory Profile (XMP) for optimized performance.
• Integrated Graphics Support: Intel HD Graphics with 1 x HDMI (up to 4K@30Hz) and 1 x D-Sub (up to 1920x1200@60Hz), ideal for multimedia, office work, and casual gaming without a dedicated graphics card.
• Storage Options: 1 x M.2 slot supporting SATA & PCIe x2 SSDs and 4 x SATA 6Gb/s connectors with RAID 0, 1, 5, and 10 support for faster and secure storage configurations.
• Connectivity & Expansion: Realtek GbE LAN for stable wired network performance, 4 x USB 3.1 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x PCIe 3.0 x16 slot, and 2 x PCIe 2.0 x1 slots for additional devices.
• Additional Features: Realtek ALC887 audio with 2/4/5.1/7.1-channel support, TPM header for hardware security, APP Center, EasyTune, AutoGreen, Q-Flash, and a 3-year manufacturing warranty for reliability.
