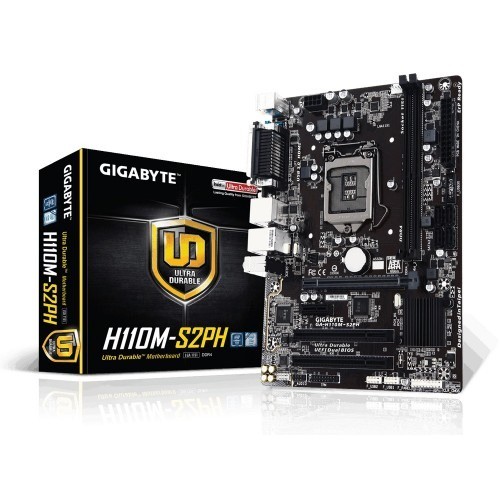

Gigabyte GA-H110M S2PH-DDR4 Motherboard

Gigabyte GA-H110M S2PH-DDR4 Motherboard

The Gigabyte GA-H110M S2PH-DDR4 Motherboard is a reliable and cost-effective solution designed for everyday computing, office productivity, and entry-level PC builds. Powered by the Intel® H110 Express chipset and featuring the LGA1151 socket, this motherboard supports a wide range of 6th Generation Intel® Core™ i7, i5, i3, Pentium®, and Celeron® processors, providing stable and efficient performance for all computing tasks. L3 cache varies depending on the installed CPU, ensuring balanced processing power for smooth operation. Equipped with 2 DDR4 DIMM slots, the GA-H110M S2PH-DDR4 supports up to 32 GB of system memory in a dual-channel configuration. Compatible with DDR4 2400/2133 MHz memory modules, ECC UDIMM (operating in non-ECC mode), and non-ECC UDIMM 1Rx8/2Rx8/1Rx16 modules, it provides flexibility for multitasking, seamless application performance, and enhanced system responsiveness. For display output, the motherboard includes an Intel® HD Graphics integrated processor with 1 D-Sub port supporting resolutions up to 1920x1200@60Hz and 1 HDMI port supporting up to 4096x2160@24Hz, accommodating a wide range of monitors. Its maximum shared memory of 1024 MB ensures smooth graphical performance for daily tasks. Audio performance is handled by the Realtek® ALC887 codec, supporting 2/4/5.1/7.1-channel high-definition audio. For 7.1-channel audio, an HD front panel audio module and enabling multi-channel audio through the driver are required. Networking is powered by the Realtek® GbE LAN chip, providing stable wired connectivity at 10/100/1000 Mbps. With its Micro ATX form factor, this motherboard easily fits into small and mid-size cases while offering reliable expandability. Backed by a 3-year warranty, the GA-H110M S2PH-DDR4 is an excellent choice for budget-conscious PC builders seeking performance, reliability, and versatile features.

Features Of Gigabyte GA-H110M S2PH-DDR4 Motherboard

• Supports 6th Generation Intel Core Processors: Compatible with i7, i5, i3, Pentium®, and Celeron® CPUs.
• Dual Channel DDR4 Memory: 2 DIMM slots supporting up to 32 GB for smooth multitasking.
• High-Quality Audio: 8-channel HD Audio with premium audio capacitors for clear sound.
• Audio Noise Guard: LED trace path lighting separates audio signals for minimal interference.
• Integrated Graphics: D-Sub and HDMI ports with maximum resolutions up to 4096x2160@24Hz.
• Reliable Networking: Realtek® GbE LAN chip for stable 10/100/1000 Mbps wired connections.
• Durable Design: Compact Micro ATX form factor with a 3-year manufacturing warranty.
