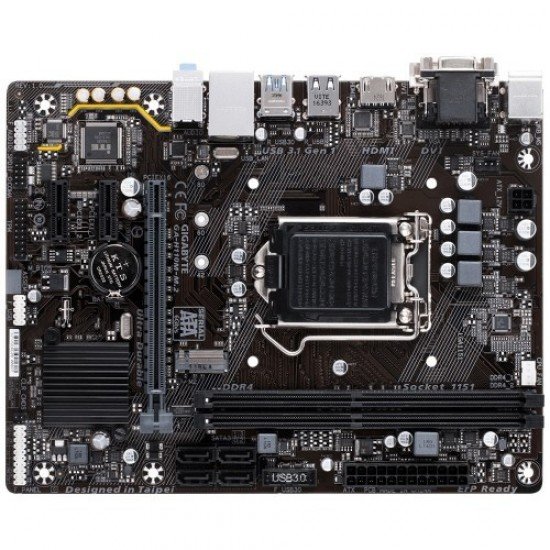

Gigabyte GA-H110M-M.2 DDR4 Motherboard
The Gigabyte GA-H110M-M.2 DDR4 Micro ATX Motherboard is a versatile and reliable platform designed for entry-level to mid-range Intel-based PCs. Built around the Intel H110 Express chipset and supporting LGA1151 socket processors, this motherboard is compatible with 6th and 7th Generation Intel® Core™ i7, i5, i3 processors, as well as Intel® Pentium® and Celeron® CPUs. This broad compatibility makes it a suitable choice for everyday computing, office work, light gaming, and multimedia applications. With its compact Micro ATX form factor (22.6cm x 17.4cm), the GA-H110M-M.2 fits easily into smaller cases without compromising on connectivity and expansion options. It features one PCI Express x16 slot for a dedicated graphics card and two PCIe x1 slots for additional expansion cards. Storage performance is supported through one M.2 Socket 3 connector for high-speed NVMe SSDs and four SATA 6Gb/s ports, allowing flexible and fast storage configurations. RAID configurations can also be set up for improved data redundancy. Memory support is provided via two DDR4 DIMM slots, accommodating up to 32GB of RAM in dual-channel architecture. The motherboard supports DDR4 speeds of 2133MHz and 2400MHz, along with XMP profiles for easy memory overclocking. Both ECC and non-ECC unbuffered DIMMs are supported in non-ECC mode. Graphics output includes a D-Sub port, DVI-D port, and an HDMI port, supporting resolutions up to 4096x2160@24Hz for HDMI and 1920x1200@60Hz for D-Sub and DVI-D. Users can enjoy high-quality visual output for multiple display setups. Connectivity options are robust, with Intel GbE LAN for reliable wired networking, four USB 3.1 Gen 1 ports, and six USB 2.0/1.1 ports. Audio is handled by three 3.5mm jacks and a front panel header. Additional features include multiple internal headers for fans, TPM support, and a Clear CMOS jumper. Backed by a 2-year manufacturing warranty, the Gigabyte GA-H110M-M.2 DDR4 motherboard offers a compact, reliable, and cost-effective solution for users building a functional and expandable Intel-based PC.
Features Of Gigabyte GA-H110M-M.2 Motherboard
- Supports 6th & 7th Gen Intel® Core Processors: Compatible with Intel® Core™ i7, i5, i3, Pentium®, and Celeron® CPUs using the LGA1151 socket, ensuring excellent performance for both office and home computing.
- Dual Channel DDR4 Memory Support: Equipped with 2 DDR4 DIMM slots supporting up to 32GB of RAM at 2133/2400 MHz, allowing smooth multitasking and faster system responsiveness.
- Ultra-Fast M.2 Slot for Storage: Includes one M.2 Socket 3 connector for high-speed NVMe SSDs, delivering faster boot times, reduced load times, and improved overall system performance.

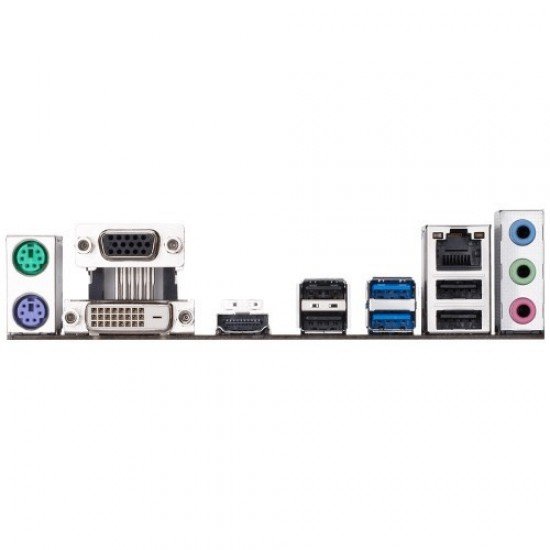

- Comprehensive Graphics Support: Features HDMI 1.4, DVI-D, and D-Sub ports to connect multiple monitors, supporting resolutions up to 4096x2160@24Hz for HDMI and 1920x1200@60Hz for DVI-D/D-Sub.
- Robust Connectivity Options: Comes with Intel® GbE LAN for reliable wired networking and a total of 10 USB ports (4 x USB 3.1 Gen 1, 6 x USB 2.0/1.1) to connect peripherals effortlessly.
- High-Quality Audio & Expansion Options: Integrated 3 audio jacks and front panel audio header for immersive sound. Expansion includes 1 PCIe x16 slot and 2 PCIe x1 slots for graphics cards or add-on cards.
- Compact Micro ATX Form Factor with Enhanced Features: Measuring 22.6cm x 17.4cm, it fits small cases easily. Includes TPM support, Clear CMOS jumper, and support for XMP memory profiles for optimized system performance.
