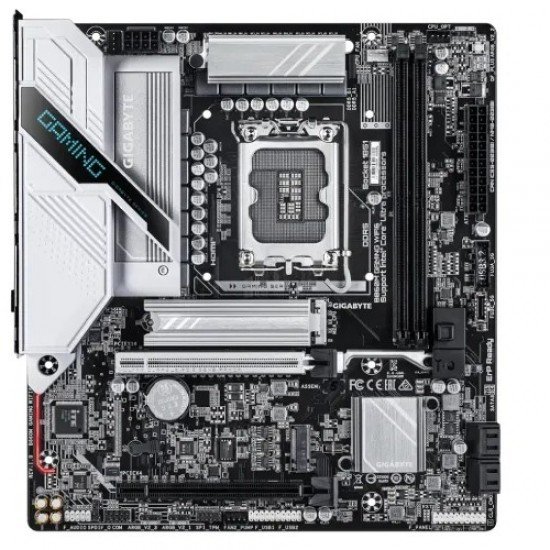

Name: Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard
Brand: GIGABYTE
Price: 25235.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard

-3 % In Stock

Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard

Stock: In Stock
Brand: GIGABYTE
Model: B860M GAMING WIFI6

Based on 1 reviews. - Write a review

25,235৳

26,000৳

Ex Tax: 25,235৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: Intel Core Ultra Processors (Series 2)
- Supported RAM: 2x DDR5
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 2x M.2, Intel Wi-Fi6 , Bluetooth 5.3

View More Info

Specification

Physical Specification
Slots	2 x DIMM
Supported Memory	Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	128GB
Basic Information
Supported CPU	Intel Core Ultra Processors(Series 2)
Chipset	Intel B860 Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 22.5cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Type	DDR5
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
M.2 Socket	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Graphics
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.)
Connector & Ports
HDMI	1 x HDMI
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Display Port (s)	1 x DisplayPort
USB (s)	Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors
Audio	1 x front panel audio header 3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 3 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others Information
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Warranty Information
Warranty	3 Year Warranty

Description

Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard

The Gigabyte B860M GAMING WIFI6 LGA 1851 Micro-ATX Motherboard is a powerful and compact solution built for modern gamers and PC users who want performance, reliability, and next-generation connectivity in a space-saving form factor. Designed around the Intel B860 chipset and supporting Intel Core Ultra Processors (Series 2) via the LGA 1851 socket, this motherboard delivers excellent efficiency, smooth multitasking, and stable gaming performance for everyday and demanding workloads. Supporting DDR5 memory, the board features 2 DIMM slots with dual-channel architecture and can handle up to 128GB RAM, including high overclocked speeds up to DDR5 9066MHz (O.C.). This ensures faster data transfer, lower latency, and improved system responsiveness, ideal for gaming and productivity. The motherboard also supports XMP profiles, allowing easy memory tuning. For graphics and expansion, the Gigabyte B860M GAMING WIFI6 includes a PCIe 5.0 x16 slot for modern GPUs and an additional PCIe 4.0 slot, providing flexibility for upgrades. Storage options are robust, featuring two M.2 slots (one PCIe 5.0 and one PCIe 4.0) along with four SATA 6Gb/s ports, supporting RAID 0, 1, 5, and 10 for speed and data security. Connectivity is modern and reliable with Realtek 2.5GbE LAN for fast wired networking and Wi-Fi 6 with Bluetooth 5.3, ensuring stable wireless performance for gaming and streaming. Display output includes HDMI 2.1 and DisplayPort 2.1, supporting up to 4K resolution for immersive visuals. Additional features such as Q-Flash Plus, GIGABYTE Control Center, RGB Gen2 headers, and enhanced audio powered by Realtek HD Audio make this motherboard user-friendly and customizable. Backed by a 3-year warranty, the Gigabyte B860M GAMING WIFI6 is a dependable, future-ready choice for compact gaming and performance PC builds.

Features Of Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard

Intel B860 Chipset & LGA 1851 Socket: Supports Intel Core Ultra Processors (Series 2), delivering improved performance, power efficiency, and platform stability for modern gaming and multitasking systems.
High-Speed DDR5 Memory Support: Equipped with 2 DDR5 DIMM slots supporting up to 128GB RAM and overclocking speeds up to 9066MHz (O.C.), ensuring faster load times and smoother performance.
Next-Gen PCIe 5.0 Expansion: Features a PCIe 5.0 x16 slot for the latest graphics cards, plus an additional PCIe 4.0 slot for expansion flexibility.
Dual M.2 Storage with RAID Support: Includes 2× M.2 slots (PCIe 5.0 + PCIe 4.0) and 4× SATA ports with RAID 0/1/5/10 for fast, secure storage solutions.
Modern Graphics Output Options: Comes with 1× HDMI 2.1 and 1× DisplayPort 2.1, supporting up to 4K resolution for gaming and multimedia.
Fast Networking & Wireless Connectivity: Realtek 2.5GbE LAN, Intel Wi-Fi 6, and Bluetooth 5.3 provide stable, high-speed wired and wireless connections.
User-Friendly & Reliable Design: Features Q-Flash Plus, RGB Gen2 headers, Realtek HD Audio, and 3-year warranty for easy setup, customization, and long-term reliability.
