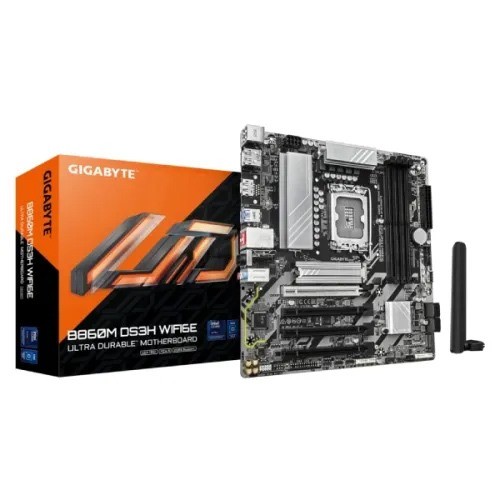

Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard

Special Price: 24,205৳ 25,000৳
Regular Price: 25,000৳
Status: In Stock
Model: B860M DS3H WIFI6E
Brand: : GIGABYTE

Key Features

  • Supported CPU: Intel Core Ultra Processors
  • Supported RAM: 4x DDR5
  • Graphics Output: 2x DisplayPort, 1x HDMI port
  • Features: 2x M.2 slots, Realtek 2.5GbE LAN
View More Info

Payment Options

  • Specification
  • Description
  • Questions (0)
  • Reviews (1)

Specification

Basic Information
Supported CPU LGA1851 socket: Support for Intel Core Ultra Processors
L3 cache varies with CPU
Chipset Intel B860 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Type DDR5
Expansion Slots
PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3)
M.2 Socket CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)
Graphics
Graphics Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
Connector & Ports
HDMI 1 x HDMI port
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Display Port (s) 2 x DisplayPort
USB (s) Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 3 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module Intel Wi-Fi 6E AX211 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)
- 4 x SATA 6Gb/s connectors
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU.
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others Information
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Smart Backup
Physical Specification
Slots 4 x DIMM
Supported Memory Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) /
7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 256 GB (64 GB single DIMM capacity) of system memory
Warranty Information
Warranty 3 Year

Description

High-Performance Micro ATX Motherboard for Next-Gen Computing Experience

The Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard is designed for users who demand stability, speed, and future-ready performance in a compact form factor. Whether you are building a powerful gaming PC, a productivity workstation, or a balanced everyday system, this motherboard ensures a smooth and responsive computing experience. With support for the latest LGA1851 socket architecture, it is engineered to handle next-generation processors efficiently, making it a strong foundation for modern PC builds. Integrated WiFi 6E technology provides ultra-fast and stable wireless connectivity, reducing latency during gaming, streaming, and large file transfers. This ensures that users experience minimal interruptions even in high-demand environments. Its Micro ATX design makes it ideal for compact builds without compromising essential features and expandability. The motherboard also focuses on durability and thermal efficiency, allowing long hours of usage without performance drops. For users upgrading from older systems, this board offers a noticeable boost in speed, connectivity, and overall responsiveness. It is a smart investment for anyone who values long-term reliability and future upgrade potential. If you are planning to build or upgrade your PC through Index IT’s motherboard category, this model stands out as a balanced choice between performance, connectivity, and value.

Why This Gigabyte B860M DS3H WIFI6E Board Elevates Your PC Build Experience

  • Next-Gen Processor Support: Designed for LGA1851 CPUs, it ensures your system is ready for upcoming high-performance processors, giving you long-term upgrade flexibility without needing a full motherboard replacement.
  • Ultra-Fast WiFi 6E Connectivity: Experience smoother online gaming, faster downloads, and stable streaming with reduced latency, making your daily digital tasks more efficient and frustration-free.
  • Compact Yet Powerful Design: The Micro ATX form factor allows you to build smaller systems without sacrificing essential features, perfect for space-saving setups and modern minimalist PC cases.
  • Enhanced System Stability: Engineered with high-quality components that ensure consistent performance even under heavy workloads, reducing crashes and improving long-term reliability.
  • Improved Thermal Efficiency: Advanced cooling design helps maintain optimal temperatures, allowing your system to perform at peak levels during gaming or professional workloads.
  • Future-Ready Expansion: Multiple connectivity and upgrade options give you the freedom to expand storage, memory, and peripherals as your needs grow over time.

What Buyers Are Saying About This Motherboard’s Performance

Users who have upgraded to the Gigabyte B860M DS3H WIFI6E motherboard often highlight its strong balance between performance and affordability. Many buyers appreciate the smooth installation process and compatibility with modern PC components, making it a hassle-free choice for both beginners and experienced builders. The WiFi 6E capability receives positive feedback for delivering noticeably faster and more stable internet connections compared to older standards. Gamers report improved responsiveness and reduced lag during online gameplay, while professionals value its reliability during multitasking and heavy workloads. Some users also mention that its compact Micro ATX design fits perfectly in smaller PC cases without sacrificing performance. Overall, the motherboard is seen as a dependable foundation for a modern PC build that delivers consistent results in everyday use and demanding applications alike.

Build Smarter with Index IT – Upgrade Your System Today

If you are planning to build a powerful and future-ready PC, the Gigabyte B860M DS3H WIFI6E motherboard is a reliable choice that brings performance, stability, and next-gen connectivity together in one package. At Index IT, Motherboard Collection, you can explore this model along with other high-quality options tailored for different budgets and performance needs. Choosing the right motherboard is the foundation of a stable system, and this model ensures you get long-term value with upgrade flexibility. Whether you are a gamer, content creator, or everyday user, this board helps you achieve smoother performance and better connectivity without complications. Don’t settle for outdated hardware when you can upgrade to something more efficient and future-ready. Visit Index IT today explore more pc components and take the next step toward building a faster, more reliable computing experience that matches your needs and ambitions.

What is the price of Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard?

The latest price of Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard in Bangladesh is 24,205৳ You can buy the Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
