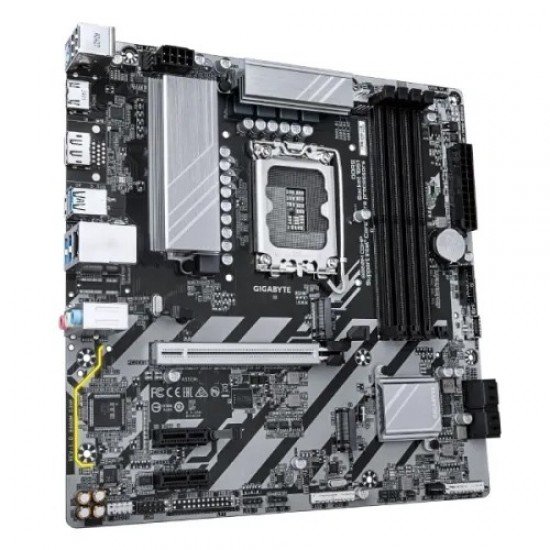

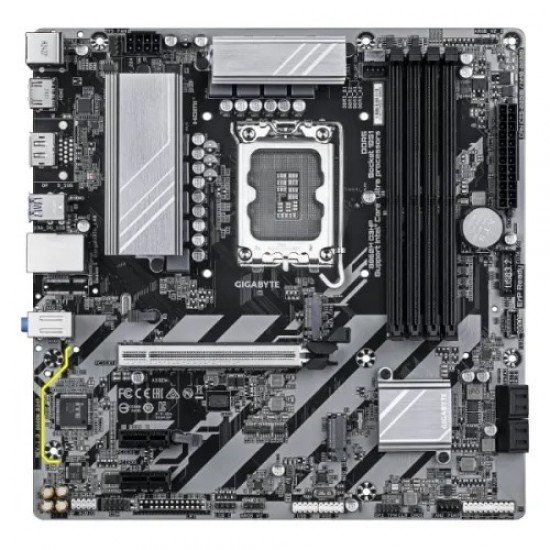

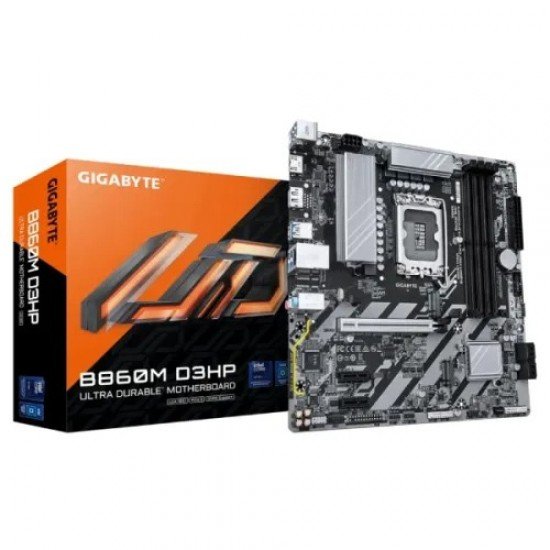

Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard

-4 % In Stock

Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard

Stock: In Stock
Model: B860M D3HP

Based on 1 reviews. - Write a review

21,115৳

22,000৳

Ex Tax: 21,115৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: Intel Core Ultra Processors
- Supported RAM: 4x DDR5, Max 256GB
- Graphics Output: 1x DisplayPort, 1x HDMI port
- Features: 2x M.2 slots, Realtek GbE LAN chip

View More Info

Specification

Physical Specification
Slots	4 x DIMM
Supported Memory	Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	up to 256 GB (64 GB single DIMM capacity) of system memory
Basic Information
Supported CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU
Chipset	Intel B860 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Type	DDR5
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
M.2 Socket	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.)
Connector & Ports
HDMI	1 x HDMI port
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Display Port (s)	1 x DisplayPort
USB (s)	Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) - 4 x SATA 6Gb/s connectors
Audio	3 x audio jacks

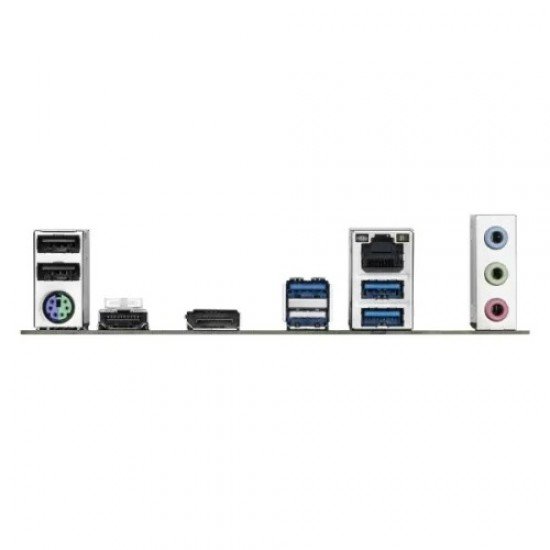

Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 3 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks Actual support may vary by CPU.
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others Information
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Smart Backup
Warranty Information
Warranty	3 Year

Description

Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard

The Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard is a versatile and high-performance platform designed for gamers, content creators, and general PC users seeking reliable computing in a compact form factor. Built on the Intel B860 Express chipset and featuring the LGA1851 socket, it fully supports Intel Core Ultra Processors, providing robust performance for multitasking, gaming, and productivity tasks. L3 cache support varies with the CPU, ensuring optimized efficiency across a range of workloads. This motherboard supports DDR5 memory across four DIMM slots, allowing a maximum of 256GB RAM with overclocking speeds up to DDR5 9066MHz (O.C.). Dual-channel memory architecture and support for Extreme Memory Profile (XMP) modules deliver high-speed data transfer, low latency, and improved overall system responsiveness. It also supports both ECC and non-ECC unbuffered DIMMs, ensuring flexibility for various user needs. For graphics and expansion, the B860M D3HP features a PCIe 5.0 x16 slot for modern GPUs or NVMe SSDs, along with two PCIe 3.0 x1 slots for additional expansion cards. Storage options are comprehensive, including two M.2 slots (PCIe 4.0) and four SATA 6Gb/s connectors, supporting RAID 0, 1, 5, and 10, offering both speed and data protection. Connectivity is well-equipped with Realtek GbE LAN, supporting 1 Gbps wired networking, and modern display outputs with 1 HDMI port and 1 DisplayPort, supporting resolutions up to 4K. USB connectivity is extensive, including USB Type-C, multiple USB 3.2 Gen 1, and USB 2.0 ports for peripherals and fast data transfer. The motherboard also includes features such as Realtek HD Audio, RGB/ARGB headers, Q-Flash, Smart Backup, and support for the GIGABYTE Control Center (GCC), enhancing usability, customization, and system management. Backed by a 3-year manufacturing warranty, the Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard is a reliable and future-ready solution for building high-performance, upgrade-friendly PCs in a compact layout.

Features Of Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard

High-Performance CPU Support: Equipped with LGA1851 socket, supporting Intel® Core™ Ultra Processors for powerful multitasking, gaming, and productivity applications.
Advanced DDR5 Memory Compatibility: Supports 4x DDR5 DIMM slots with maximum 256GB capacity and overclocking up to DDR5 9066(O.C) MHz, featuring dual-channel architecture and XMP profile support for fast and stable performance.
Graphics and Display Output: Integrated Intel HD Graphics support with 1 HDMI port (4K@60Hz) and 1 DisplayPort (4K@144Hz), allowing high-resolution video and triple-display setups depending on CPU support.
Flexible Expansion and Storage: Features 1 PCIe 5.0 x16 slot for graphics cards or NVMe SSDs, 2 PCIe 3.0 x1 slots, 2 M.2 slots (PCIe 4.0), and 4 SATA 6Gb/s connectors with RAID 0, 1, 5, 10 support.
Comprehensive Connectivity: Realtek GbE LAN chip ensures reliable wired networking, and USB Type-C, USB 3.2 Gen 1, and USB 2.0 ports offer fast data transfer and peripheral compatibility.
Enhanced Audio and Customization: Realtek HD Audio CODEC with 3 audio jacks provides clear sound output, while RGB/ARGB headers enable system lighting customization for a personalized setup.
Convenient Features & Software Support: Includes GIGABYTE Control Center (GCC), Q-Flash, Smart Backup, and a Trusted Platform Module (TPM) header for system security and easy management.
