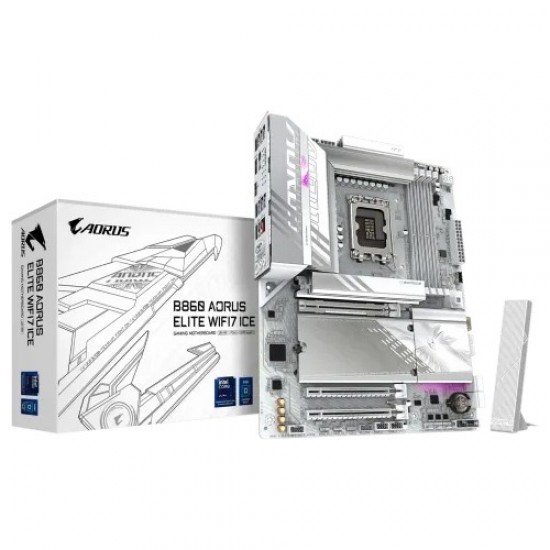

Name: Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard
Brand: GIGABYTE
Price: 36050.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard

-3 % In Stock

Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard

Stock: In Stock
Brand: GIGABYTE
Model: B860 AORUS ELITE WIFI7 ICE

Based on 1 reviews. - Write a review

36,050৳

37,000৳

Ex Tax: 36,050৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- CPU: Intel Core Ultra, LGA 1851
- RAM: 4x DDR5, up to 256GB, 9200(O.C)
- Graphics: 2x HDMI, 1x DisplayPort, 1x Thunderbolt 4 (USB4)
- Features: 3x M.2, Wi-Fi 7, Bluetooth 5.4

View More Info

Specification

Physical Specification
Slots	4 x DIMM
Supported Memory	Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
Maximum Memory	Up to 256 GB (64 GB single DIMM capacity)
Basic Information
Supported CPU	Intel Core Ultra Processors L3 cache
Chipset	Intel B860 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Type	DDR5
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_1, PCIEX1_2)
M.2 Socket	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Graphics
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version(Graphics specifications may vary depending on CPU support) Support for up to quad-display at the same time
Connector & Ports
HDMI	2 x HDMI
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Display Port (s)	1 x DisplayPort
USB (s)	CPU: - 1 x USB4® USB Type-C® port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB) - 4 x SATA 6Gb/s connectors
Audio	1 x front panel audio header 2 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors: 1 x USB4® USB Type-C® port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 1 x HDMI port (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others Information
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Warranty Information
Warranty	3 Year Warranty

Description

Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard

The Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard is a high-performance, feature-packed motherboard designed for gamers, content creators, and PC enthusiasts who demand reliability, speed, and modern connectivity in their desktop setups. Built on the Intel B860 Express chipset and compatible with Intel Core Ultra Processors via the LGA1851 socket, this motherboard delivers exceptional processing power, multitasking capability, and smooth gaming performance. The integrated L3 cache varies depending on the CPU, ensuring optimized performance across a wide range of applications. The motherboard supports DDR5 memory with four DIMM slots, enabling up to 256GB of RAM with high overclocking speeds up to 9200 MHz (O.C.). It supports both ECC and non-ECC memory modules as well as CUDIMM, offering stable and high-speed memory performance for demanding tasks. For storage, it features three M.2 connectors (including a PCIe 5.0 x4 slot) and four SATA 6Gb/s ports, with support for RAID 0, 1, 5, and 10, allowing users to configure flexible and fast storage solutions. Graphics connectivity is robust with HDMI 2.1, DisplayPort 2.1, and USB4 Type-C ports supporting high-resolution quad-display setups at up to 4K 144Hz, ideal for gaming, content creation, and productivity. Networking is future-ready with Realtek 2.5GbE LAN, Realtek Wi-Fi 7 RTL8922AE, and MediaTek Wi-Fi 7 MT7925 modules, along with Bluetooth 5.4, providing ultra-fast wired and wireless connectivity. The motherboard also includes advanced internal I/O ports such as multiple USB 3.2/2.0 headers, RGB and ARGB headers, Q-Flash Plus, and Trusted Platform Module (TPM) support. Special features like GIGABYTE Control Center (GCC), Smart Backup, and bundled Norton Internet Security software enhance system management and protection. Backed by a 3-year warranty, the Gigabyte B860 AORUS ELITE WIFI7 ICE is a future-proof, reliable, and versatile motherboard for high-performance PC builds.

Features Of Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard

High-Performance CPU Support: Compatible with Intel Core Ultra Processors via LGA1851 socket, delivering exceptional processing power, multitasking efficiency, and smooth gaming experiences.
Advanced DDR5 Memory: Supports 4x DDR5 DIMM slots with maximum capacity up to 256GB and overclocking speeds up to 9200 MHz (O.C.), including ECC, non-ECC, and CUDIMM modules for stable and high-speed performance.
Next-Gen Graphics & Display: Features 2x HDMI, 1x DisplayPort, and 1x USB4 Type-C port supporting DisplayPort output, enabling high-resolution quad-display setups up to 4K 144Hz for gaming, content creation, and professional workflows.
Extensive Storage Options: Includes 3x M.2 slots (including PCIe 5.0 x4) and 4x SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support for flexible, high-speed storage configurations.
Ultra-Fast Connectivity: Equipped with Realtek 2.5GbE LAN, Realtek Wi-Fi 7 RTL8922AE, MediaTek Wi-Fi 7 MT7925, and Bluetooth 5.4 for seamless wired and wireless network performance.
Robust Expansion & I/O: Offers multiple PCIe slots, USB 3.2/2.0 ports, RGB/ARGB headers, Q-Flash Plus, TPM support, and comprehensive internal/external connectivity for versatile system building.
Enhanced System Management & Security: Supports GIGABYTE Control Center (GCC), Smart Backup, and bundled Norton Internet Security software, ensuring easy management, monitoring, and protection.
