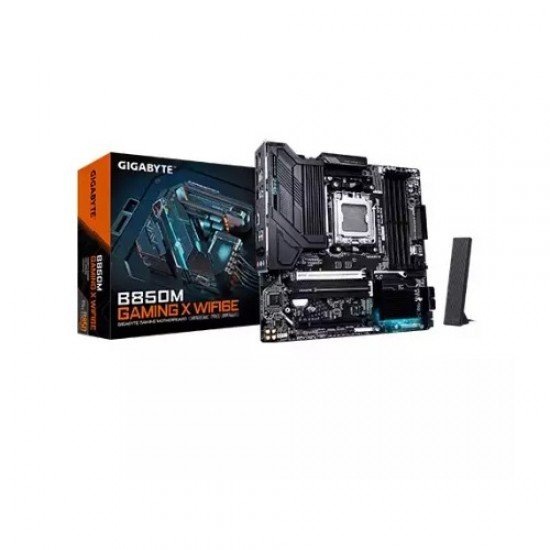

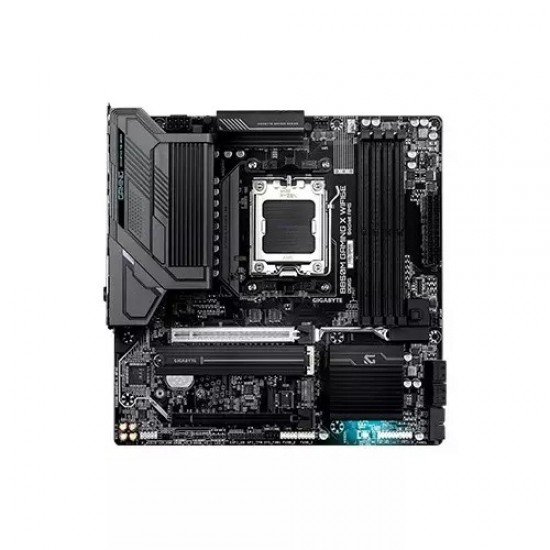

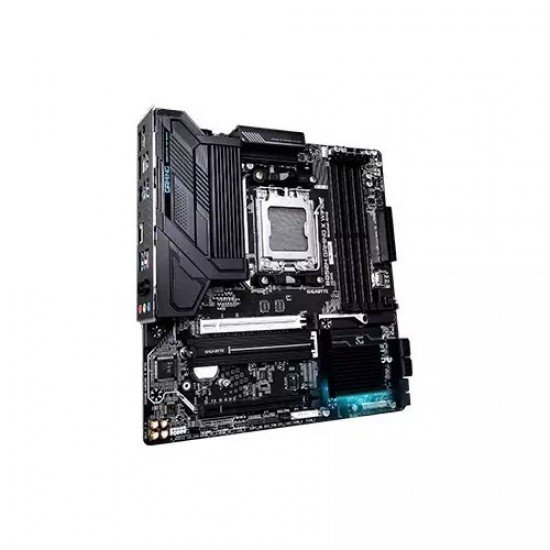

Name: Gigabyte B850M Gaming X WF6E AM5 Micro ATX Motherboard
Brand: Gigabyte
Price: 30900.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

Gigabyte B850M Gaming X WF6E AM5 Micro ATX Motherboard

-2 % In Stock

Gigabyte B850M Gaming X WF6E AM5 Micro ATX Motherboard

Stock: In Stock
Brand: Gigabyte
Model: B850M Gaming X WF6E

Based on 1 reviews. - Write a review

30,900৳

31,500৳

Ex Tax: 30,900৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Chipset: AMD B850
- BIOS: 1 x 256 Mbit flash
- Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
- Maximum Resolution: 3840x2160@144 Hz

View More Info

Specification

Basic Information
Supported CPU	AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.
Chipset	AMD B850
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Memory	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Graphics
Graphics	ntegrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same tim
External Features
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

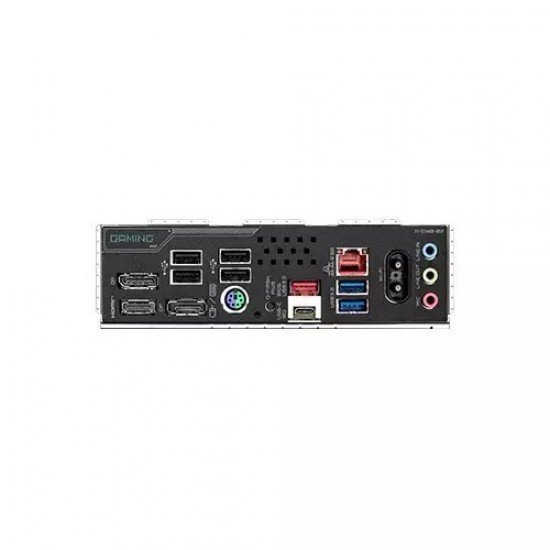

I/O Port	Back Panel I/O Ports: 1 x HDMI port (Note) 2 x DisplayPort (Note) 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 3 x audio jacks (Note) Actual support may vary by CPU Internal I/O Ports: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Connector & Ports
USB (s)	CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers
Supported Storage	x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated into the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors.RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Network & Connectivity
Bluetooth	v5.3 - Support for 11ax 160MHz wireless standard
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WiFi	Realtek Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier
Others Information
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Warranty	3-Years

Description

Gigabyte B850M Gaming X WF6E AM5 Micro ATX Motherboard

The Gigabyte B850M Gaming X WF6E AM5 Micro ATX Motherboard delivers a powerful and feature-rich foundation for modern gaming and productivity builds. Designed for the future of computing, it supports the latest AMD Socket AM5 processors, including the Ryzen 9000, 8000, and 7000 Series, ensuring exceptional performance for gaming, rendering, and multitasking. Powered by the AMD B850 chipset, this board offers strong stability, efficient power management, and enhanced system compatibility. With support for cutting-edge DDR5 memory, the motherboard can handle speeds up to 8200(O.C) and capacities up to 256GB across four DIMM slots. Dual-channel architecture, along with compatibility for AMD EXPO and XMP memory profiles, ensures optimized performance for gamers and content creators who demand high-speed, low-latency memory. Storage performance is another strength, featuring dual M.2 connectors integrated with the CPU. Depending on the processor, users can benefit from PCIe 5.0 x4 or PCIe 4.0 x4/x2 SSD support, enabling ultra-fast boot times and application loading. Additionally, four SATA 6Gb/s ports and RAID configurations (0/1/5/10) offer flexibility for high-speed storage setups. For graphics, the board includes integrated display support through 1 HDMI 2.1 port and 2 DisplayPort 1.4 outputs, capable of driving up to three displays simultaneously. Networking capabilities include Realtek 2.5GbE LAN, Wi-Fi 6E (RTL8852CE), and Bluetooth 5.3, ensuring smooth connectivity for online gaming, streaming, and wireless peripherals. The motherboard also offers extensive I/O options including USB Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0 ports, Q-Flash Plus button, audio jacks, and RGB headers. With reliable power delivery, a high-definition audio codec, wide OS support, and durable Micro ATX design, the Gigabyte B850M Gaming X WF6E is an excellent choice for building a high-performance, compact gaming system.

Features Of Gigabyte B850M Gaming X WF6E AM5 Micro ATX Motherboard

AMD B850 Chipset with AM5 CPU Support: Powered by the advanced AMD B850 chipset, this motherboard supports the latest Ryzen 9000, 8000, and 7000 Series processors, ensuring exceptional performance for gaming, multitasking, and productivity. It offers long-term upgradeability with full AM5 compatibility.
High-Speed DDR5 Memory Up to 8200(O.C): Equipped with 4x DDR5 DIMM slots supporting up to 256GB, it delivers ultra-fast speeds including 8200(O.C), 8000(O.C), 7600(O.C) and more. Dual-channel architecture along with AMD EXPO and XMP ensures stable and optimized memory performance.
Advanced M.2 & SATA Storage Support: The board includes two CPU-integrated M.2 slots, supporting PCIe 5.0 or 4.0 SSDs depending on the processor, plus 4 SATA 6Gb/s ports. NVMe RAID 0/1/5/10 support enables maximum storage speed and flexibility.
Triple-Display Support with HDMI & DisplayPort: Features 1 HDMI 2.1 and 2 DisplayPort 1.4 outputs, supporting up to 3840×2160@144Hz, enabling high-resolution triple-monitor setups for gaming and productivity.
Fast Networking with Wi-Fi 6E & 2.5GbE LAN: Comes with Realtek Wi-Fi 6E (RTL8852CE), Bluetooth 5.3, and 2.5GbE LAN, providing ultra-fast, low-latency wired and wireless connectivity.
Rich Connectivity & USB Options: Offers USB Type-C (USB 3.2 Gen 2), USB 3.2 Gen 1, USB 2.0, audio jacks, RGB headers, Q-Flash Plus button, and ample internal I/O ports for maximum expansion.
Compact & Durable Micro ATX Design: Built with a 24.4cm x 24.4cm Micro ATX form factor, it fits a wide range of cases and includes robust power delivery components, Realtek HD audio, and support for Windows 10/11 64-bit.
