| Physical Specification | ||
| Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode<br> AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> Chipset:<br> - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) | |
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for:<br> AMD Ryzen 9000 Series Processors/<br> AMD Ryzen 8000 Series Processors/<br> AMD Ryzen 7000 Series Processors | |
| Chipset | AMD X870 | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Memory | Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) /<br> 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules<br> 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory<br> Dual channel memory architecture<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | |
| Operating System | Support for Windows 11 64-bit | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:<br> - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz<br> * Support for DisplayPort 1.4 version and HDR.<br> Integrated Graphics Processor with AMD Radeon Graphics support:<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| Input Devices | ||
| External I/O Ports | 1 x Q-Flash Plus button<br> 2 x antenna connectors (2T2R)<br> 1 x HDMI port(Note)<br> 2 x USB4 USB Type-C ports (DisplayPort)<br> 1 x USB 3.2 Gen 2 Type-A port (red)<br> 3 x USB 3.2 Gen 1 ports<br> 4 x USB 2.0/1.1 ports<br> 1 x RJ-45 port<br> 3 x audio jacks | |
| Connectivity | ||
| USB | CPU+ASMedia USB4 controller:<br> - 2 x USB4 USB Type-C ports on the back panel<br> CPU:<br> - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br> - 1 x USB 3.2 Gen 1 port on the back panel<br> CPU+USB 2.0 Hub:<br> - 4 x USB 2.0/1.1 ports on the back panel<br> Chipset:<br> - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header<br> - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> - 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| RAID | 4 x SATA 6Gb/s connectors<br> RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:<br> AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> AMD Ryzen 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs<br> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x 4-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 4 x system fan headers<br> 3 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 4 x SATA 6Gb/s connectors<br> 3 x M.2 Socket 3 connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C header, with USB 3.2 Gen 2x2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)<br> 1 x power button<br> 1 x reset button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper | |
| Network & Connectivity | ||
| Bluetooth | - BLUETOOTH 5.4<br> - Support for 11be 160MHz wireless standard | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| WiFi | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)<br> - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| Physical Specification | ||
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Others Information | ||
| Special Features | Support for GIGABYTE Control Center (GCC)<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support for Smart Backup<br> I/O Controller<br> iTE I/O Controller Chip<br> H/W Monitoring<br> Voltage detection<br> Temperature detection<br> Fan speed detection<br> Water cooling flow rate detection<br> Fan fail warning<br> Fan speed control | |
| Warranty Information | ||
| Warranty | 03 years | |

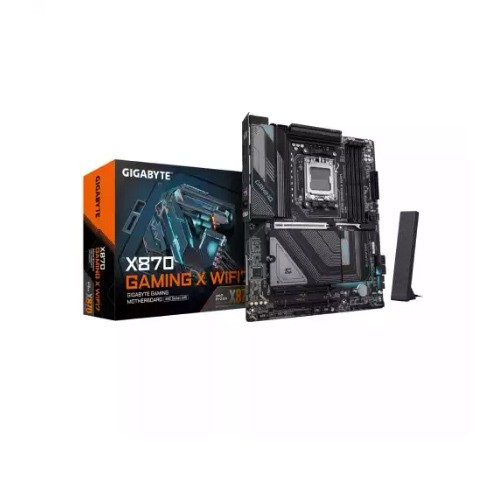

The Gigabyte X870 GAMING X WIFI7 AM5 DDR5 ATX Motherboard is a next-generation performance platform designed for gamers, creators, and power users who demand cutting-edge speed, stability, and future-ready technology. Powered by the advanced AMD X870 chipset, it supports the latest AMD Ryzen 9000, 8000, and 7000 Series processors, ensuring outstanding compute performance for gaming, productivity, and heavy workloads. With four DDR5 DIMM slots supporting speeds up to 8200+ MHz (OC) and a total capacity of 256GB, this motherboard delivers exceptional memory bandwidth, smooth multitasking, and powerful overclocking capabilities with AMD EXPO and Intel XMP profiles. For storage, the board includes three high-speed M.2 slots supporting PCIe 5.0 and PCIe 4.0 SSDs, along with four SATA 6Gb/s ports for flexible expansion. PCIe 5.0 graphics card support ensures maximum GPU performance, making it ideal for high-end gaming builds. The integrated graphics system provides HDMI and dual USB4 Type-C DisplayPort outputs, supporting resolutions up to 4K and 8K, perfect for content creators and multi-display setups. Connectivity is a major highlight with Realtek 2.5GbE LAN, WiFi 7, and Bluetooth 5.4, offering ultra-fast networking, low latency, and seamless wireless performance. The Realtek HD Audio codec brings immersive 7.1-channel sound quality, enhancing gaming and entertainment experiences. The motherboard includes multiple fan headers, RGB headers, water pump support, and comprehensive temperature sensors to maintain superior thermal control. Additional premium features include Q-Flash Plus, Smart Backup, and full compatibility with Windows 11 64-bit.
The latest price of Gigabyte X870 GAMING X WIFI7 AM5 DDR5 ATX Motherboard in Bangladesh is 37,000৳ You can buy the Gigabyte X870 GAMING X WIFI7 AM5 DDR5 ATX Motherboard at best price from our Website or visit any of our showrooms.
