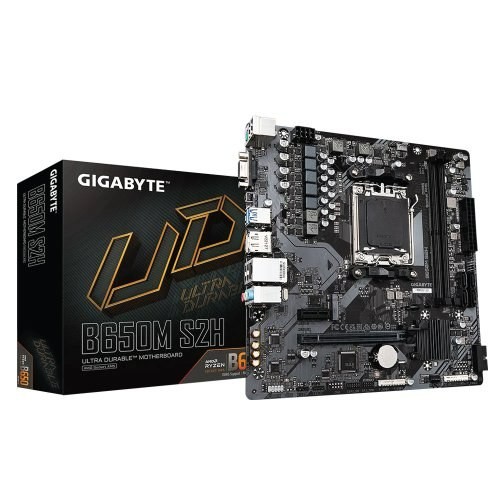

Name: GIGABYTE B650M S2H AM5 Micro-ATX Motherboard
Brand: Gigabyte
Price: 14200.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

GIGABYTE B650M S2H AM5 Micro-ATX Motherboard

-5 % In Stock

GIGABYTE B650M S2H AM5 Micro-ATX Motherboard

Stock: In Stock
Brand: Gigabyte
Model: B650M S2H

Based on 1 reviews. - Write a review

14,200৳

15,000৳

Ex Tax: 14,200৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: Ryzen 8000 & 7000 Series
- Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
- Graphics Output: 1 x DisplayPort, 1 x HDMI, 1 x D-Sub
- Features: Realtek GbE LAN chip

View More Info

Specification

Physical Specification
Slots	2 x DIMM
Supported Memory	Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Maximum Memory	up to 96 GB (48 GB single DIMM capacity)
Basic Information
Supported CPU	AMD Socket AM5, support for: AMD Ryzen™ 8000 & 7000 Series Processors
Chipset	AMD B650
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 23.0cm x 22.5cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Type	DDR5
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Graphics
Graphics	Integrated Graphics Processor: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
Connector & Ports
HDMI	1 x HDMI
RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Display Port (s)	1 x DisplayPort
USB (s)	CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: - 4 x SATA 6Gb/s connectors
Audio	3 x audio jacks
Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connectorV 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x RJ-45 port
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
D-Sub (s)	1 x D-Sub port
Others Information
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Warranty	3 Years

Description

GIGABYTE B650M S2H AM5 Micro-ATX Motherboard

The GIGABYTE B650M S2H AM5 Micro-ATX Motherboard is a dependable and future-ready solution for users building an AMD Ryzen-powered PC with modern performance and essential features. Built on the AMD B650 chipset and equipped with the AM5 socket, this motherboard supports AMD Ryzen™ 7000 and 8000 series processors, delivering excellent computing power for gaming, content creation, and everyday workloads. Designed in a compact Micro-ATX form factor (23.0cm x 22.5cm), the B650M S2H fits easily into smaller PC cases without compromising expandability. It features a PCIe 4.0 x16 slot for high-performance graphics cards and an additional PCIe 3.0 x1 slot for expansion needs. For fast storage, the motherboard includes a PCIe 4.0 M.2 slot supporting NVMe SSDs, along with four SATA 6Gb/s ports that support RAID 0, 1, and 10 configurations. Memory support is another highlight, with dual-channel DDR5 capability and support for speeds up to 6400MT/s (OC). With two DIMM slots supporting up to 96GB of RAM, users can enjoy smooth multitasking and future-proof performance. AMD EXPO™ and XMP profiles make memory tuning simple and efficient. For display output, the board provides HDMI, DisplayPort, and D-Sub options, ensuring compatibility with a wide range of monitors. Connectivity is further enhanced with multiple USB 3.2 Gen 1 and USB 2.0 ports, Realtek Gigabit LAN for stable networking, and high-definition 7.1-channel audio powered by a Realtek Audio Codec. Additional features like Q-Flash Plus, RGB headers, TPM support, and GIGABYTE Control Center make this motherboard a practical and user-friendly choice, backed by a 3-year manufacturing warranty.

Features Of GIGABYTE B650M S2H AM5 Micro-ATX Motherboard

AM5 Socket CPU Support: Compatible with AMD Ryzen™ 7000 and 8000 series processors, ensuring strong performance and future upgrade potential.
High-Speed DDR5 Memory: Supports 2 x DDR5 DIMMs up to 6400MHz (OC) with a maximum capacity of 96GB for fast multitasking.
PCIe 4.0 Expansion: Equipped with a PCIe 4.0 x16 slot for modern graphics cards and smooth gaming performance.
Advanced Display Outputs: Includes DisplayPort, HDMI, and D-Sub ports for flexible multi-display setups.
Fast Storage Options: Features one PCIe 4.0 M.2 slot and four SATA 6Gb/s ports with RAID 0/1/10 support.
Reliable Network Connectivity: Powered by a Realtek GbE LAN chip for stable and efficient wired internet performance.
User-Friendly Features: Q-Flash Plus, RGB headers, TPM support, and GIGABYTE Control Center enhance usability and system management.
