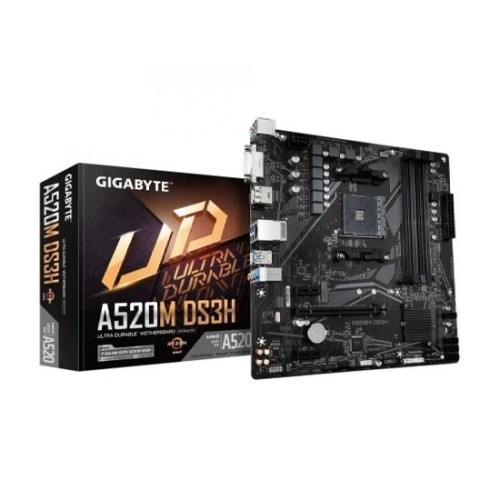

Name: Gigabyte A520M DS3H Micro-ATX AMD AM4 Motherboard
Brand: GIGABYTE
Price: 10100.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

Gigabyte A520M DS3H Micro-ATX AMD AM4 Motherboard

-4 % In Stock

Gigabyte A520M DS3H Micro-ATX AMD AM4 Motherboard

Stock: In Stock
Brand: GIGABYTE
Model: Gigabyte A520M DS3H Ultra Durable

Based on 1 reviews. - Write a review

10,100৳

10,500৳

Ex Tax: 10,100৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
- Ultra-Fast NVMe
- RGB FUSION 2.0 Supported
- 5+3 Phases Pure Digital VRM

View More Info

Specification

Physical Specification
Slots	4 x DDR4 DIMM
Supported Memory	3rd Gen AMD Ryzen Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	128 GB (32 GB single DIMM capacity)
Basic Information
Supported CPU	AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset	AMD A520
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Type	Dual-Channel Memory Architecture
Expansion Slots
PCI	CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Graphics
Graphics	1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for up to 3 displays at the same time
Max Shared Memory	16 GB
Connector & Ports
HDMI	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Display Port (s)	1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
USB (s)	CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)	Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
Audio	Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
DVI-D (s)	1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
Others Information
Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Warranty Information
Warranty	3 Years

Description

Gigabyte A520M DS3H Micro-ATX AMD AM4 Motherboard

The Gigabyte A520M DS3H Micro-ATX AMD AM4 Motherboard is a dependable and budget-friendly solution designed for users seeking stable performance, modern connectivity, and wide AMD CPU compatibility. Powered by the AMD A520 chipset and built on the AM4 socket, this motherboard supports AMD Ryzen 5000 Series, Ryzen 4000G Series, and 3rd Generation Ryzen processors, making it ideal for home PCs, office systems, and entry-level gaming builds. With its Micro-ATX form factor (24.4cm x 24.4cm), the A520M DS3H fits easily into compact PC cases while still providing excellent expandability. It features four DDR4 DIMM slots with dual-channel memory architecture, supporting up to 128GB RAM and overclocked speeds up to 4733MHz (OC) depending on the processor. Support for XMP memory profiles allows easy performance tuning and improved system stability. For display connectivity, this motherboard offers HDMI, DisplayPort, and DVI-D outputs, supporting up to three displays simultaneously. With maximum resolutions reaching 4K on HDMI and 5K on DisplayPort, it is well-suited for multitasking, productivity, and multimedia use with Ryzen processors featuring Radeon Graphics. Expansion options include a PCIe 3.0 x16 slot for graphics cards and two PCIe 3.0 x1 slots for additional expansion cards. Storage support is robust with an Ultra-Fast PCIe 3.0 NVMe M.2 slot and four SATA 6Gb/s ports, supporting RAID 0, 1, and 10 for flexibility and data security. Additional features such as Realtek Gigabit LAN, Realtek ALC887 HD audio, RGB Fusion support, and Q-Flash Plus for BIOS updates without a CPU make system building and maintenance simple. Backed by a 3-year manufacturing warranty, the Gigabyte A520M DS3H delivers excellent value for AMD AM4-based systems.

Features Of Gigabyte A520M DS3H Micro-ATX AMD AM4 Motherboard

Broad AMD CPU Support: Compatible with AMD Ryzen 5000, 4000G, and 3rd Generation Ryzen processors, offering reliable performance and upgrade flexibility on the AM4 platform.
5+3 Phases Pure Digital VRM: Ensures stable power delivery, better efficiency, and reliable operation even under demanding workloads.
High-Speed DDR4 Memory: Supports up to 128GB DDR4 RAM across four DIMM slots with speeds up to 4733MHz (OC) and XMP profile support.
Ultra-Fast NVMe Storage: Features a PCIe 3.0 x4 M.2 slot for high-speed NVMe SSDs, along with four SATA 6Gb/s ports supporting RAID 0/1/10.
Triple Display Support: Equipped with HDMI, DisplayPort, and DVI-D, supporting up to three displays simultaneously for productivity and multitasking.
RGB FUSION 2.0 Ready: Includes RGB and addressable LED headers with RGB Fusion 2.0 support for customizable lighting effects.
Essential GIGABYTE Features: Comes with Q-Flash Plus, APP Center utilities, Realtek Gigabit LAN, HD audio, and multiple USB 3.2 Gen 1 ports for a complete and user-friendly experience.
