| Basic Information | ||
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:<br> AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs<br> 2 x SATA 6Gb/s connectors<br> RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices<br> * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.<br> RAID 0 and RAID 1 support for SATA storage devices | |
| Chipset | AMD B850 | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm | |
| Audio | Realtek® ALC4080 CODEC<br> High Definition Audio<br> 2-channel | |
| Type | DDR5 | |
| Others | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 1 x system fan header<br> 2 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 2 x M.2 Socket 3 connectors<br> 2 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x speaker header<br> 1 x front panel audio header (routed from the adapter card on the rear panel)<br> 1 x USB Type-C® header, with USB 3.2 Gen 2 support<br> 1 x USB 3.2 Gen 1 header<br> 1 x USB 2.0/1.1 header<br> 1 x reset jumper<br> 1 x Clear CMOS jumper<br> 1 x chassis intrusion header | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support:<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version and HDCP 2.3, and HDR.<br> ** Support for native HDMI 2.1 TMDS compatible ports.<br> (Graphics specifications may vary depending on CPU support.) | |
| External Features | ||
| Expansion Slots | 1 x PCI Express x16 slot, integrated in the CPU:<br> AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode<br> AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> * The PCIEX16 slot can only support a graphics card or an NVMe SSD. | |
| Connectivity | ||

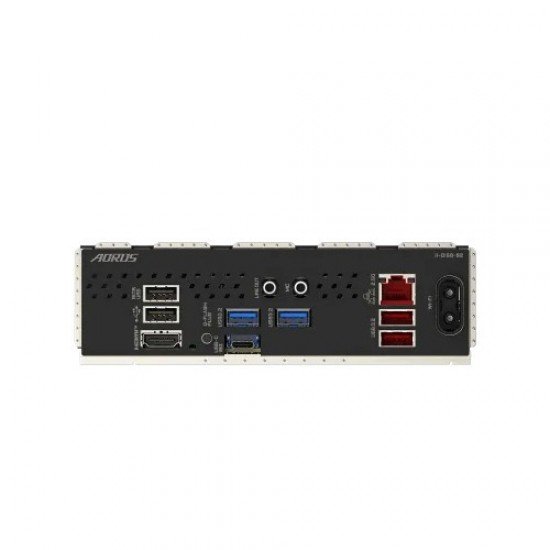

| USB Port(s) | CPU:<br> - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support<br> - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> Chipset:<br> - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header<br> - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| Connector & Ports | ||
| Wireless Communication module | Realtek® Wi-Fi 7 RTL8922AE<br> - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands<br> - BLUETOOTH 5.4<br> - Support for 11be 160MHz wireless standard<br> (Actual data rate may vary depending on environment and equipment.) | |
| Network & Connectivity | ||
| Bluetooth | Bluetooth 5.4 | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Others Information | ||
| Bundled Software | Norton® Internet Security (OEM version)<br> LAN bandwidth management software | |
| Special Features | Support for GIGABYTE Control Center (GCC)<br> * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support for Smart Backup | |
| Warranty Information | ||
| Warranty | 3 Years Warranty | |

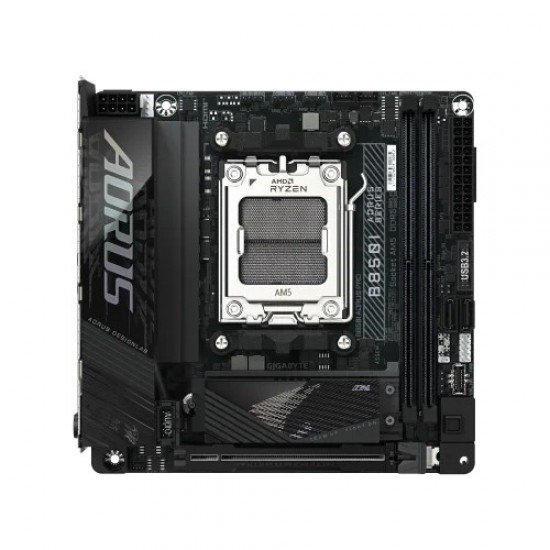

The GIGABYTE B850I AORUS PRO AMD AM5 DDR5 Mini-ITX Motherboard is a compact yet high-performance solution designed for gamers, content creators, and PC enthusiasts who want top-tier performance in a Mini-ITX form factor. Built on the AMD B850 chipset, it supports the latest Ryzen 7000, 8000, and 9000 series processors, ensuring exceptional processing power and efficiency for gaming, productivity, and multitasking. This motherboard features dual DDR5 memory slots supporting up to 128GB of high-speed RAM, with memory frequencies ranging from 4400 MT/s up to 8400 MT/s (OC), enabling ultra-fast data transfer and smooth multitasking. The dual-channel architecture ensures optimized performance for demanding applications. For graphics, the B850I AORUS PRO comes with an integrated AMD Radeon™ Graphics processor and HDMI 2.1 support with resolutions up to 4K at 60Hz, providing clear visuals and HDR support for gaming and multimedia. The motherboard also features a PCIe x16 slot supporting PCIe 5.0 and 4.0 for high-performance GPUs or NVMe SSDs. Storage options include two M.2 slots (CPU and chipset-integrated) supporting PCIe 5.0/4.0 NVMe SSDs, two SATA 6Gb/s ports, and RAID support (RAID 0, 1, 5, 10 for NVMe, RAID 0 and 1 for SATA). Wireless and networking capabilities are robust with Wi-Fi 7 (802.11be), Bluetooth 5.4, and Realtek 2.5GbE LAN, ensuring fast, stable connections. The motherboard also supports a wide range of USB ports, including USB Type-C Gen 2, USB 3.2 Gen 2, Gen 1, and USB 2.0, along with internal headers for front panel connectivity. Additional features include Q-Flash Plus, Smart Backup, and GIGABYTE Control Center support, providing easy BIOS updates and system management. With high-quality components, advanced connectivity, and a 3-year warranty, the GIGABYTE B850I AORUS PRO Mini-ITX motherboard offers exceptional performance and reliability for compact, high-end PC builds.
The latest price of GIGABYTE B850I AORUS PRO AMD AM5 DDR5 Mini-ITX Motherboard in Bangladesh is 42,000৳ You can buy the GIGABYTE B850I AORUS PRO AMD AM5 DDR5 Mini-ITX Motherboard at best price from our Website or visit any of our showrooms.
