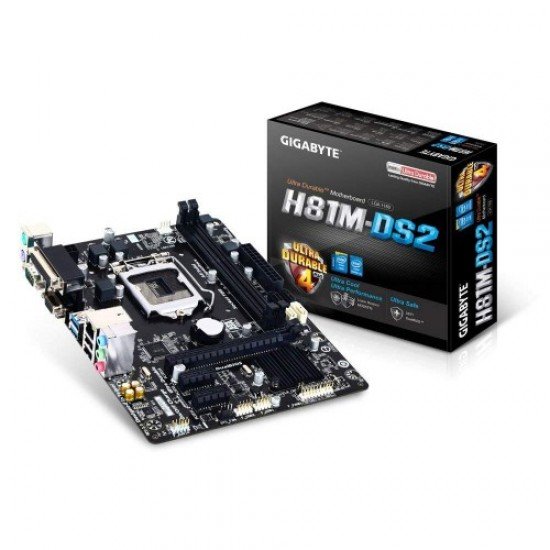

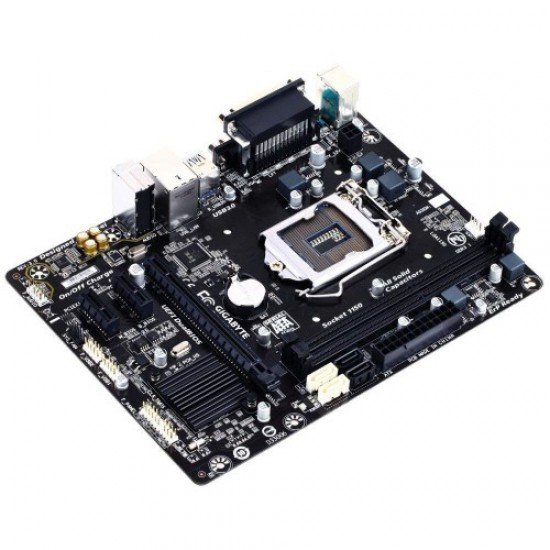

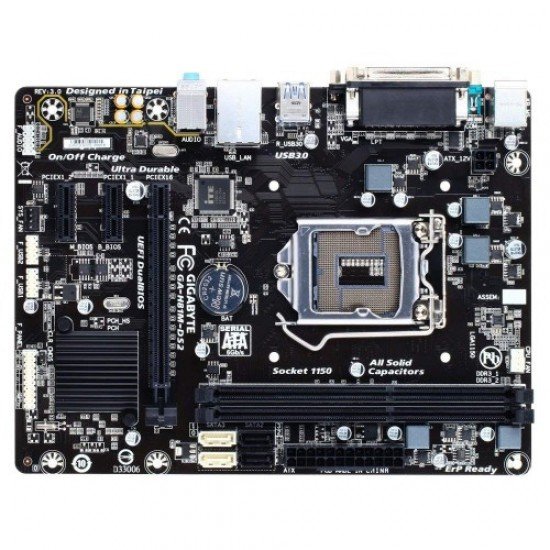

Gigabyte GA-H81M-DS2 Micro ATX Motherboard

Gigabyte GA-H81M-DS2 Micro ATX Motherboard

The Gigabyte GA-H81M-DS2 Micro ATX Motherboard is a reliable and budget-friendly solution designed for everyday computing, office productivity, and entry-level home PC builds. Built on the Intel® H81 Express chipset and featuring the LGA1150 socket, this motherboard supports 4th Generation Intel® Core™ i7, i5, i3, Pentium®, and Celeron® processors, delivering stable and efficient performance for daily tasks. L3 cache support varies by CPU, ensuring balanced performance based on the selected processor. Its compact Micro ATX form factor (22.6cm x 17cm) makes it an excellent choice for small to mid-size PC cases while still offering essential expandability. The GA-H81M-DS2 includes one PCI Express x16 slot for a dedicated graphics card and two PCI Express x1 slots for additional expansion cards. All expansion slots comply with the PCI Express 2.0 standard, providing reliable and consistent data transfer. Memory support features a dual-channel DDR3 architecture with two 1.5V DIMM slots, supporting DDR3 1600/1333 MHz non-ECC memory modules and a maximum capacity of 16GB. This setup ensures smooth multitasking, stable system performance, and responsiveness for everyday applications. For display output, the motherboard is equipped with a D-Sub port supporting resolutions up to 1920 x 1200, making it compatible with a wide range of monitors. Storage connectivity includes four SATA ports, consisting of two SATA 6Gb/s and two SATA 3Gb/s connectors, allowing flexible configurations with SSDs and HDDs. Additional features include USB 3.0 and USB 2.0 ports, Realtek® Gigabit LAN for reliable wired networking, and Realtek® ALC887 high-definition audio supporting up to 7.1-channel sound. With DualBIOS™ technology, licensed AMI EFI BIOS, and a 3-year manufacturing warranty, the Gigabyte GA-H81M-DS2 delivers long-term reliability, stability, and excellent value for budget-conscious PC builders.

Features Of Gigabyte GA-H81M-DS2 Micro ATX Motherboard

• 4th Generation Intel® CPU Support: Supports Intel® Core™ i7, i5, i3, Pentium®, and Celeron® processors on the LGA1150 socket, ideal for daily computing and office use.
• Intel® H81 Express Chipset: Provides stable system performance, efficient power management, and dependable compatibility for 4th Gen Intel platforms.
• Dual-Channel DDR3 Memory: Equipped with 2 x 1.5V DDR3 DIMM slots, supporting up to 16GB DDR3 1600/1333 MHz memory for smooth multitasking.
• Flexible PCI Express Expansion: Features 3 PCI Express slots (1 x PCIe x16, 2 x PCIe x1) compliant with PCIe 2.0, enabling graphics cards and add-on expansions.
• Versatile Storage Connectivity: Includes 2 x SATA 6Gb/s and 2 x SATA 3Gb/s ports, allowing fast and flexible SSD and HDD configurations.
• Reliable LAN & Audio: Realtek® Gigabit LAN ensures stable wired networking, while Realtek® ALC887 audio delivers immersive 7.1-channel HD sound.
• Enhanced Reliability & Warranty: DualBIOS™, AMI EFI BIOS support, USB 3.0 connectivity, and a 3-year manufacturing warranty ensure durability and peace of mind.
