| Key Features | ||
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Others | Support for GIGABYTE Control Center (GCC)<br> * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br> Support for Q-Flash<br> Support for Q-Flash Plus | |
| Physical Specification | ||
| Type | DDR4 | |
| Slots | 4 x DDR DIMM | |
| Supported Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules<br> Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | up to 128 GB (32 GB single DIMM capacity) | |
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors<br> L3 cache varies with CPU | |
| Chipset | ||
| Chipset | Intel® B760 Express Chipset | |
| Graphics | ||
| Graphics | 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz<br> * Support for DisplayPort 1.2 version and HDCP 2.3<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.0 version and HDCP 2.3. | |
| Input Devices | ||
| Expansion Slot | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)<br> 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) | |
| Motherboard | ||
| Audio | Realtek® Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.<br> Support for S/PDIF Out | |
| BIOS | 1 x 128 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 3 x system fan headers<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 2 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x S/PDIF Out header<br> 1 x USB Type-C® header, with USB 3.2 Gen 2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 2 x Thunderbolt™ add-in card connectors<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)<br> 1 x serial port header<br> 1 x reset button<br> 1 x Q-Flash Plus button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU:<br> 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)<br> Chipset:<br> 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)<br> 4 x SATA 6Gb/s connectors | |
| Connectivity | ||

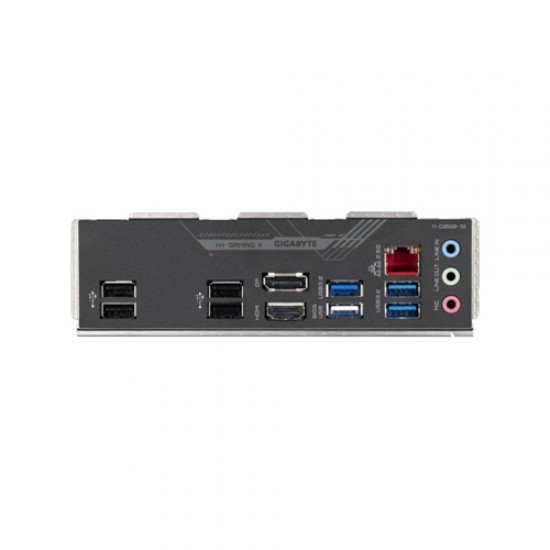

| Others | Back Panel Connectors:<br> 3 x USB 3.2 Gen 1 ports<br> 5 x USB 2.0/1.1 ports<br> 1 x HDMI 2.0 port<br> 1 x DisplayPort<br> 1 x RJ-45 port<br> 3 x audio jacks | |
| Connector & Ports | ||
| USB (s) | Chipset:<br> 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header<br> 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)<br> 1 x USB 2.0/1.1 port on the back panel<br> Chipset+2 USB 2.0 Hubs:<br> 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| Wireless Communication module | AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0)<br> WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands<br> BLUETOOTH 5.2<br> Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate<br> Intel® Wi-Fi 6E AX210 (PCB rev. 1.1)<br> WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands<br> BLUETOOTH 5.3<br> Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate<br> Intel® Wi-Fi 6E AX211 (PCB rev. 1.2)<br> WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands<br> BLUETOOTH 5.3<br> Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate<br> Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3)<br> WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands<br> BLUETOOTH 5.3<br> Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate<br> (Actual data rate may vary depending on environment and equipment.) | |
| Software | ||
| Operating System | Support for Windows 11 64-bit<br> Support for Windows 10 64-bit | |

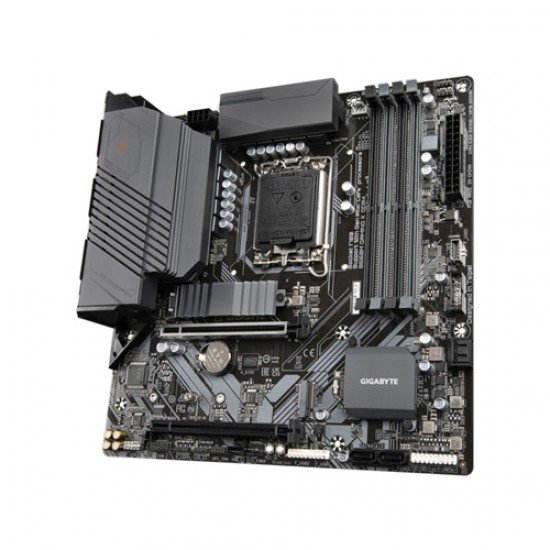

The Gigabyte B760M Gaming X DDR4 Micro ATX Motherboard is designed for users who demand stable performance, modern connectivity, and reliable power delivery for both gaming and productivity tasks. Built on the Intel B760 chipset, this motherboard supports 12th and 13th Gen Intel processors, making it a future-ready solution for upgrading or building a powerful PC system. Whether you are a gamer, content creator, or professional user, this motherboard ensures smooth multitasking and consistent performance under heavy workloads. Its DDR4 memory support allows you to enjoy high-speed computing while keeping upgrade costs efficient, making it an ideal balance between performance and affordability. The Micro ATX form factor also ensures compatibility with a wide range of PC cases, giving you flexibility in building compact or mid-sized systems. With advanced thermal design, enhanced power phases, and optimized layout, it delivers stable operation even during long gaming sessions. If you are looking for a reliable motherboard that combines performance, durability, and modern features, the Gigabyte B760M Gaming X DDR4 is a smart choice for your next PC build.
Upgrade your PC build with the Gigabyte B760M Gaming X DDR4 Gaming Motherboard today and experience smoother performance, better stability, and future-ready features. Order now to take your gaming and productivity to the next level with confidence and reliability.
The latest price of Gigabyte B760M Gaming X DDR4 Micro ATX Motherboard in Bangladesh is 20,200৳ You can buy the Gigabyte B760M Gaming X DDR4 Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
