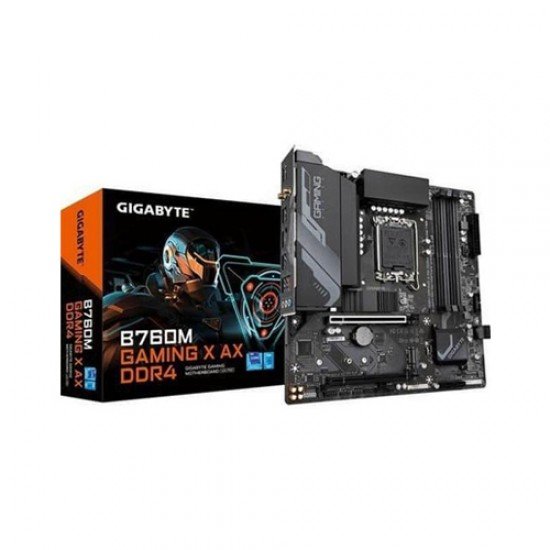

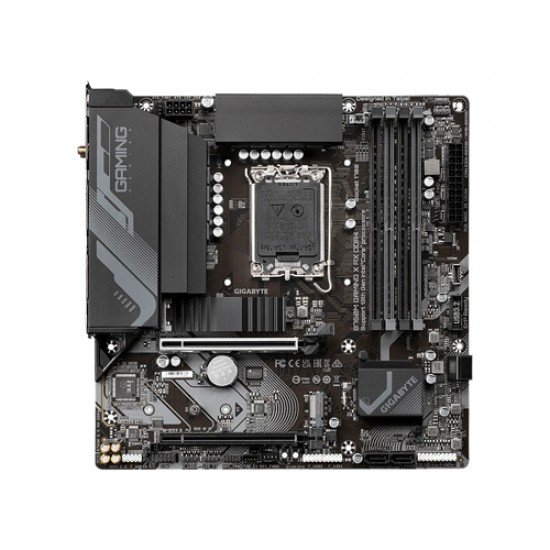

Name: Gigabyte B760M GAMING X AX DDR4 Micro ATX Motherboard
Brand: Gigabyte
Price: 20500.00 BDT
Availability: OutOfStock

Gigabyte B760M GAMING X AX DDR4 Micro ATX Motherboard

In Stock

Gigabyte B760M GAMING X AX DDR4 Micro ATX Motherboard

Stock: In Stock
Brand: Gigabyte
Model: B760M GAMING X AX DDR4

Based on 0 reviews. - Write a review

20,500৳

Ex Tax: 20,500৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: 12th/13th Gen Intel Processors (LGA1700)
- Supported RAM: 4x DDR4, Max 128GB 5333(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E AX211

View More Info

Specification

Key Features
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Others	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Physical Specification
Type	DDR4
Slots	4 x DDR DIMM
Supported Memory	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Max. Memory	up to 128 GB (32 GB single DIMM capacity)
Basic Information
Supported CPU	LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU
Chipset
Chipset	Intel® B760 Express Chipset
Graphics
Graphics	1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.
Input Devices
Expansion Slot	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Motherboard
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
Connector & Ports
USB (s)	Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Wireless Communication module	AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate Intel® Wi-Fi 6E AX210 (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6E AX211 (PCB rev. 1.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.)
Software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit

Description

Gigabyte B760M GAMING X AX DDR4 Micro ATX Motherboard

The Gigabyte B760M GAMING X AX is a Micro ATX motherboard that supports the 11th and 10th-generation Intel Core processors. It features two DDR4 memory slots with support for up to 64GB of memory, offering ample storage and quick access to data. The motherboard also has a high-quality audio subsystem with a Realtek ALC1200 codec, providing clear and detailed sound for gaming or multimedia content. The B760M GAMING X AX has an abundance of connectivity options, including 2.5G LAN, Gigabit LAN, USB 3.2 Gen1, and USB Type-C ports, allowing for a wide range of peripherals and devices to be connected. It also includes support for M.2 and U.2 NVMe solid-state drives, allowing for fast data transfer speeds and reduced load times. The B760M GAMING X AX is equipped with Gigabyte's advanced thermal design, ensuring stability and longevity even under intense workloads. The motherboard also features RGB Fusion 2.0, which allows users to customize the lighting of their system with RGB lighting strips, offering a personalized and eye-catching setup. In terms of expansion options, the B760M GAMING X AX has two PCI Express 4.0 x16 slots and three PCI Express 4.0 x1 slots, allowing for multiple graphics cards or other components to be added. The motherboard also includes support for Intel Optane Memory, which provides faster access to frequently used files and applications. In conclusion, the Gigabyte B760M GAMING X AX is a powerful and versatile Micro ATX motherboard, designed for gamers and content creators. With its impressive features, high-quality audio, and advanced thermal design, the B760M GAMING X AX is an excellent choice for building a top-performing system. more information to learn,n visit the official Index IT.

Buying Guideline of GIGABYTE B760M GAMING X AX Motherboard

Choosing the right motherboard is crucial for building a powerful and reliable PC. The GIGABYTE B760M GAMING X AX DDR4 Micro ATX motherboard offers a perfect balance of performance, features, and durability for gamers, creators, and everyday users.

Buying Guidelines:

Processor Compatibility: Ensure your CPU is compatible — supports 12th, 13th, and 14th Gen Intel processors.
Memory Support: Check DDR4 memory support and maximum capacity for your multitasking and gaming needs.
Form Factor: Designed as Micro ATX, suitable for compact cases while offering essential features.
Expansion Slots: Look at PCIe slots for graphics cards and other expansion needs.
Connectivity Options: Consider USB ports, LAN speed, and Wi-Fi capabilities for smooth connectivity.
Cooling Solutions: Verify the motherboard has adequate heatsinks and thermal designs for stable performance.
Future-Proof Features: PCIe 4.0 support, high-speed networking, and upgradeable BIOS for longevity.

This motherboard is ideal for gamers and PC enthusiasts who demand reliability and performance in a compact Micro ATX design. Explore all features and build your next powerful system from the Motherboard category, powered by GIGABYTE (Intel), now available at Index IT.
