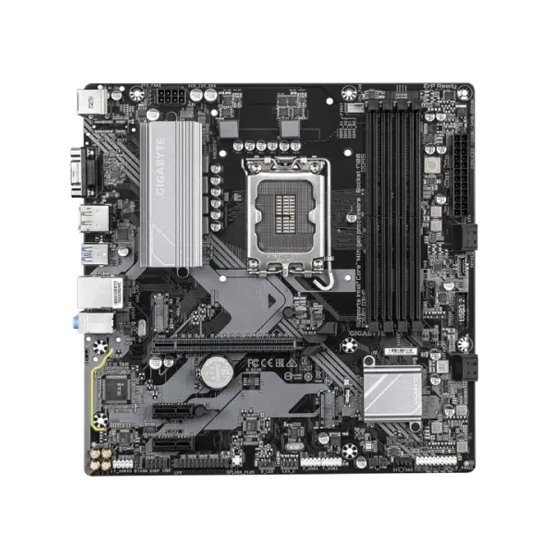

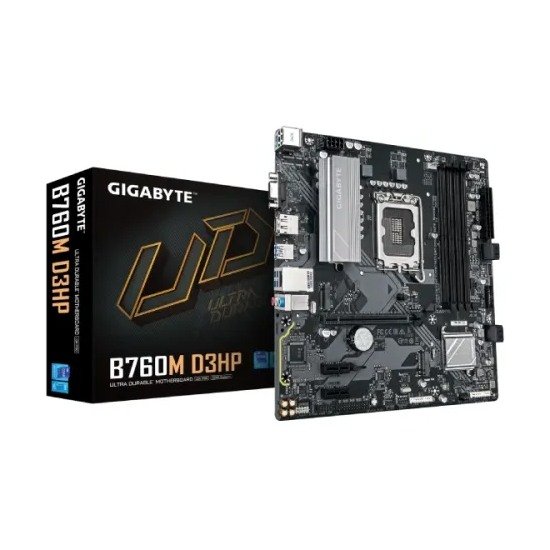

Name: GIGABYTE B760M D3HP WIFI6 DDR5 14th GEN Micro ATX Motherboard
Brand: Gigabyte
Price: 18200.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

GIGABYTE B760M D3HP WIFI6 DDR5 14th GEN Micro ATX Motherboard

-3 % In Stock

GIGABYTE B760M D3HP WIFI6 DDR5 14th GEN Micro ATX Motherboard

Stock: In Stock
Brand: Gigabyte
Model: B760M D3HP WIFI6 DDR5

Based on 1 reviews. - Write a review

18,200৳

18,800৳

Ex Tax: 18,200৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: 14th and 13th Generation Intel Core i9/i7 Processors (LGA1700)
- Supported RAM: 4 x DDR5 DIMM, Max. 5600(O.C), up to 192 GB
- Graphics Output: 1x DisplayPort, 1x HDMI
- Features: Realtek GbE LAN chip, Realtek Wi-Fi 6 RTL8851BE

View More Info

Specification

Physical Specification
Slots	4 x DDR5 DIMM
Supported Memory	14th and 13th Generation Intel Core i9/i7 Processors: - Support for DDR5 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memory	up to 192 GB
Basic Information
Supported CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU
Chipset	Intel B760 Express Chipset
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Type	DDR5
Graphics
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
External Features
Expansion Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Connectivity

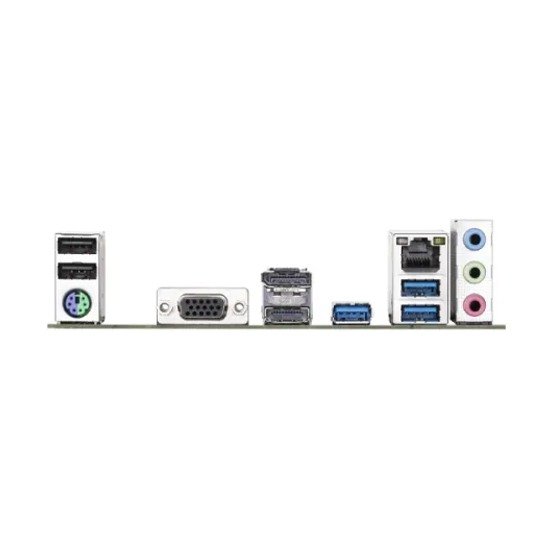

USB Port(s)	Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Connector & Ports
HDMI	1 x HDMI port*
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Wireless Communication module	Realtek Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
Network & Connectivity
LAN	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Ports & Slots
Display Port	1 x DisplayPort*
Others Information
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Warranty	3 Years

Description

GIGABYTE B760M D3HP WIFI6 DDR5 14th GEN Micro ATX Motherboard

The GIGABYTE B760M D3HP WIFI6 DDR5 14th GEN Micro ATX Motherboard is a reliable and future-ready platform designed for users seeking stable performance, modern connectivity, and long-term upgrade support. Built on the Intel B760 Express chipset and featuring the LGA1700 socket, this motherboard supports 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors, making it suitable for gaming, professional work, office productivity, and everyday computing. With its compact Micro ATX form factor (24.4cm x 24.4cm), the B760M D3HP WIFI6 fits easily into smaller PC cases while maintaining excellent expandability. It features a PCIe 4.0 x16 slot for modern graphics cards or NVMe expansion and two PCIe 3.0 x1 slots for additional cards. Memory support is a key strength, offering four DDR5 DIMM slots with support for up to 192GB of RAM. Depending on the processor, DDR5 speeds of up to 5600MT/s are supported, and Intel XMP profiles allow easy memory tuning. Storage options include two PCIe 4.0 M.2 slots for ultra-fast NVMe SSDs and four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support, ensuring flexibility and data security. Display connectivity is versatile with HDMI, DisplayPort, and D-Sub outputs, supporting high-resolution 4K displays through integrated Intel graphics. Networking is handled by a Realtek Gigabit LAN chip and built-in Realtek Wi-Fi 6, delivering fast and stable wired and wireless connectivity. Audio performance is powered by a Realtek High Definition Audio codec with 7.1-channel support and S/PDIF Out. With features like Q-Flash Plus, RGB headers, TPM support, and a user-friendly UEFI BIOS, this motherboard is a dependable and feature-rich solution backed by a 3-year manufacturing warranty.

Features Of GIGABYTE B760M D3HP WIFI6 DDR5 14th GEN Micro ATX Motherboard

Latest Intel CPU Support: Compatible with 14th and 13th Generation Intel Core i9 and i7 processors using the LGA1700 socket, ensuring strong performance and future upgrade potential.
High-Capacity DDR5 Memory: Supports 4 x DDR5 DIMM slots with speeds up to 5600MHz (OC) and a maximum capacity of 192GB for smooth multitasking.
PCIe 4.0 Expansion Slot: Features a PCIe 4.0 x16 slot for modern graphics cards or high-speed NVMe expansion.
Dual M.2 Storage Support: Equipped with two PCIe 4.0 M.2 slots and four SATA ports with RAID 0/1/5/10 support for flexible storage setups.
Advanced Display Outputs: Includes HDMI and DisplayPort outputs, supporting high-resolution 4K displays via integrated Intel graphics.
Reliable Connectivity: Powered by a Realtek GbE LAN chip and Realtek Wi-Fi 6 RTL8851BE for fast, stable wired and wireless networking.
User-Friendly Features: Q-Flash Plus, RGB and addressable LED headers, TPM support, and an intuitive BIOS enhance ease of use and system management.
