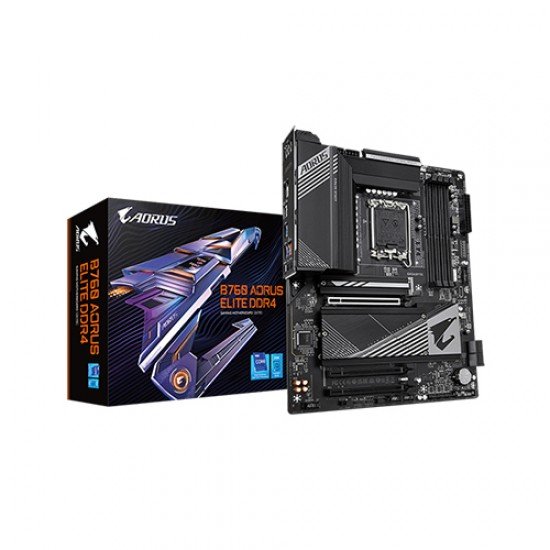

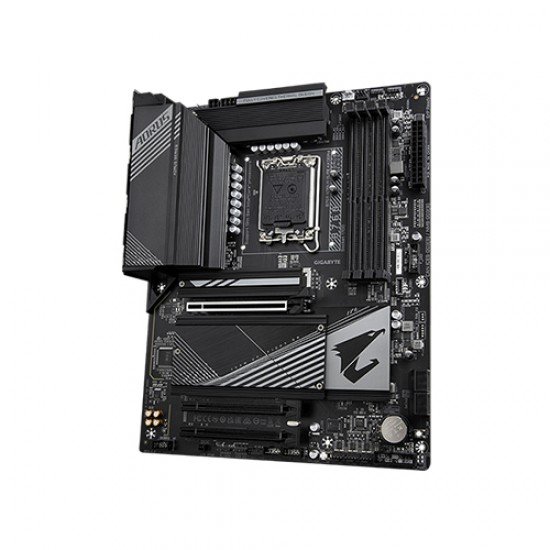

Name: Gigabyte B760 AORUS ELITE DDR4 Motherboard
Brand: Gigabyte
Price: 24500.00 BDT
Availability: OutOfStock

Gigabyte B760 AORUS ELITE DDR4 Motherboard

In Stock

Gigabyte B760 AORUS ELITE DDR4 Motherboard

Stock: In Stock
Brand: Gigabyte
Model: B760 AORUS ELITE

Based on 0 reviews. - Write a review

24,500৳

Ex Tax: 24,500৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: 12th/13th Gen Intel Processors (LGA1700)
- Supported RAM: 4x DDR4, Max 128GB 5333(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 2x M.2 slot, Realtek 2.5GbE LAN chip

View More Info

Specification

Key Features
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Physical Specification
Type	DDR4
Slots	4 x DDR DIMM
Supported Memory	Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules
Max. Memory	up to 128 GB (32 GB single DIMM capacity)
Basic Information
Supported CPU	LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Expansion Slots
PCI	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Chipset
Chipset	Intel® B760 Express Chipset
Graphics
Graphics	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Motherboard
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors
Connectivity
Others	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Pluso
Connector & Ports
USB (s)	Chipset: 2 x USB Type-C® ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit

Description

Gigabyte B760 AORUS ELITE DDR4 Motherboard

The Gigabyte B760 AORUS ELITE DDR4 Motherboard is a high-performance, feature-rich motherboard designed for gamers, PC enthusiasts, and professionals seeking reliability and cutting-edge technology. Built on the Intel B760 chipset, this motherboard supports Intel’s 12th and 13th Gen Core processors, ensuring powerful processing performance for gaming, content creation, and multitasking. Its support for DDR4 memory offers a perfect balance between speed and cost-effectiveness, allowing memory upgrades up to 128GB with high-frequency stability. The AORUS ELITE DDR4 comes with an optimized thermal design including advanced heatsinks and heat-pipe coverage, keeping your system cool during intense workloads. Connectivity and expandability are at the forefront with multiple PCIe slots, M.2 NVMe storage support, and USB 3.2 Gen 2 ports, providing lightning-fast data transfer and ample options for high-end graphics cards and storage solutions. The motherboard also integrates high-quality audio capacitors and the Realtek 8118 gaming LAN for an immersive and lag-free gaming experience. A robust BIOS interface ensures easy overclocking and system tuning, allowing users to customize performance based on their needs. With RGB Fusion 2.0, users can personalize their system with vibrant lighting effects that sync across compatible components. Whether you are building a new gaming rig or upgrading an existing system, the Gigabyte B760 AORUS ELITE DDR4 Motherboard offers durability, reliability, and performance that cater to modern PC requirements.

Advanced Key Features of Gigabyte B760 AORUS ELITE Motherboard

The Gigabyte B760 AORUS ELITE DDR4 Motherboard is designed for gamers, content creators, and PC enthusiasts who demand high performance, stability, and expandability. With robust power delivery, fast memory support, and advanced connectivity, it ensures your Intel system runs smoothly under heavy workloads and gaming sessions.

Intel 12th & 13th Gen CPU Support – Optimized for the latest Intel Core processors to maximize performance.
DDR4 Memory Support – Dual-channel memory architecture supporting high-speed RAM for seamless multitasking.
ATX Form Factor – Provides ample expansion options for GPUs, storage, and additional components.
M.2 & SATA Storage Support – Multiple M.2 slots and SATA connectors for fast NVMe SSDs and traditional drives.
Advanced Thermal Design – Heatsinks and thermal guards to maintain stable performance under heavy loads.
Integrated Networking – High-speed Ethernet and optional Wi-Fi for smooth online connectivity.
RGB Fusion 2.0 – Fully customizable RGB lighting for a visually striking PC build.
Robust Power Delivery – Reliable VRM design ensures stable power for demanding CPUs and GPU configurations.

Upgrade your Intel PC with the Gigabyte B760 AORUS ELITE DDR4 Motherboard and enjoy stable performance, fast connectivity, and ultimate customization for gaming and productivity. Order now and build your dream PC today!

This premium Motherboard from GIGABYTE (Intel) is perfect for gamers, PC builders, and tech enthusiasts. Explore more high-quality motherboards in our Motherboard category and find authentic Gigabyte (Intel) products at Index IT, your trusted source for genuine tech and unbeatable deals.
