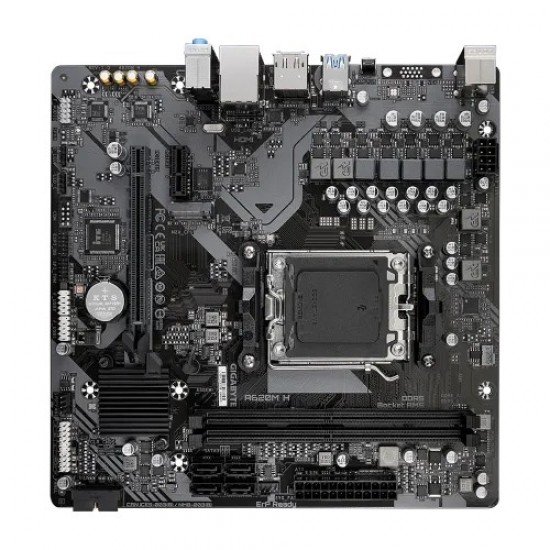

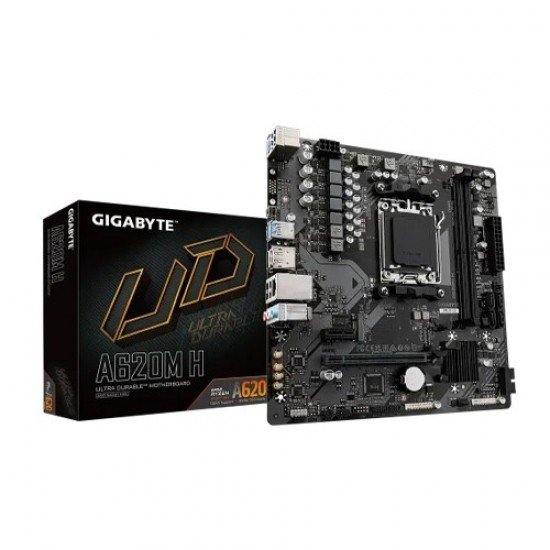

Name: GIGABYTE A620M H AM5 Micro-ATX Motherboard
Brand: GIGABYTE
Price: 11300.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

GIGABYTE A620M H AM5 Micro-ATX Motherboard

-6 % In Stock

GIGABYTE A620M H AM5 Micro-ATX Motherboard

Stock: In Stock
Brand: GIGABYTE
Model: A620M H

Based on 1 reviews. - Write a review

11,300৳

12,000৳

Ex Tax: 11,300৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: Ryzen 9000 / 8000 / 7000 Series Processors for Socket AM5
- Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
- Graphics Output: 2 x DisplayPort, 1 x HDMI port
- Features: 1 x DisplayPort, 1 x HDMI

View More Info

Specification

Basic Information
Supported CPU	AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Chipset	AMD A620
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 23.0cm x 22.5cm
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI	1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type	DDR5
Slots	2 x DIMM
Supported Memory	6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Maximum Memory	supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Graphics
Graphics	supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.
Connector & Ports
HDMI	1 x HDMI
RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Display Port (s)	1 x DisplayPort
USB (s)	CPU: 2 x USB 3.2 Gen 1 ports on the back panel 1 x USB 2.0/1.1 port on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage	1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others Information
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Warranty	3 Years

Description

GIGABYTE A620M H AM5 Micro-ATX Motherboard

The GIGABYTE A620M H AM5 Micro-ATX Motherboard is designed for gamers, PC enthusiasts, and content creators who need a compact yet high-performance solution. Equipped with the AMD A620 chipset and supporting AMD Socket AM5 processors, it delivers stability, fast data transfer, and reliable performance for modern computing needs. With support for Ryzen 7000, 8000, and 9000 series CPUs, this motherboard ensures future-proof compatibility with the latest AMD processors. Its DDR5 memory support across 2 DIMM slots allows for speeds from 4800 MHz up to 6400 MHz (OC) and a maximum capacity of 96 GB, perfect for multitasking, gaming, and professional applications. The board also supports AMD EXPO™ and XMP memory profiles, providing optimized overclocking and enhanced performance. For graphics and display, the A620M H features 1 HDMI 2.1 port and 1 DisplayPort 1.4, enabling high-resolution output up to 4096x2160@60 Hz or 3840x2160@144 Hz, ideal for gaming and multimedia. Storage options include 1 M.2 slot for NVMe SSDs and 4 SATA 6Gb/s ports with RAID 0, 1, and 10 support for flexible and high-speed storage setups. Connectivity is robust with Realtek GbE LAN, multiple USB 3.2 and USB 2.0 ports, and high-definition audio jacks powered by Realtek Audio CODEC. Additional features include PCIe x16 and PCIe x1 slots, addressable and RGB LED headers, TPM header for security, and GIGABYTE Control Center support, along with Q-Flash and Q-Flash Plus for BIOS management.

Features Of GIGABYTE A620M H AM5 Micro-ATX Motherboard

Supported CPU: AMD Ryzen 7000 / 8000 / 9000 Series Processors for Socket AM5
Memory Support: 2 x DDR5 DIMM slots, up to 6400 MHz (OC), max 96 GB
Graphics Output: 1 x HDMI 2.1, 1 x DisplayPort 1.4 for high-resolution displays
Storage: 1 x M.2 slot, 4 x SATA 6Gb/s ports with RAID 0/1/10 support
Expansion Slots: 1 x PCIe x16 (for GPU/NVMe), 1 x PCIe x1 for add-on cards
Connectivity: Multiple USB 3.2 / USB 2.0 ports, Realtek GbE LAN, 3 x audio jacks
Special Features: GIGABYTE Control Center (GCC), Q-Flash/Q-Flash Plus, RGB/LED headers, TPM support
