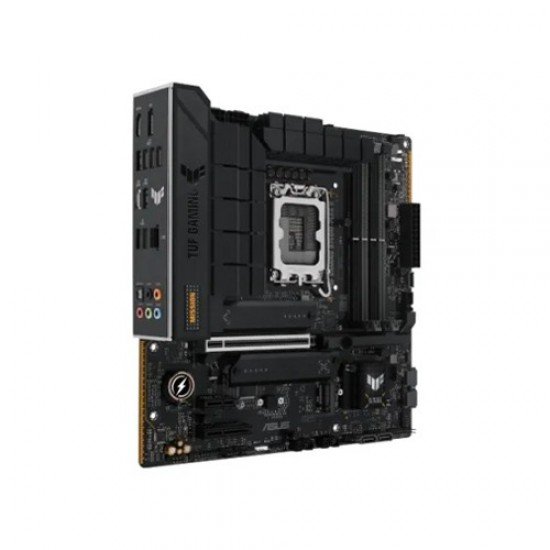

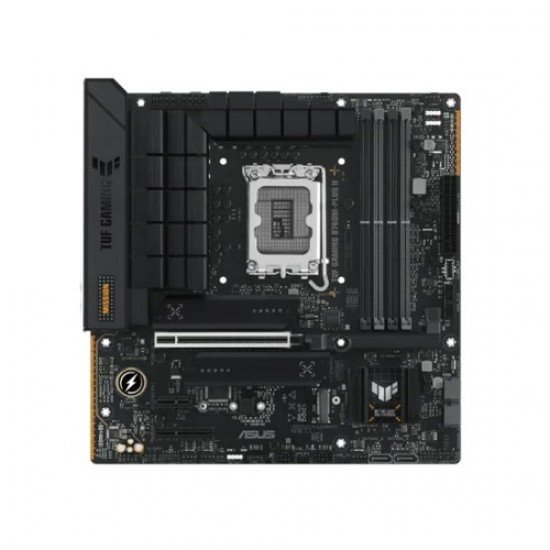

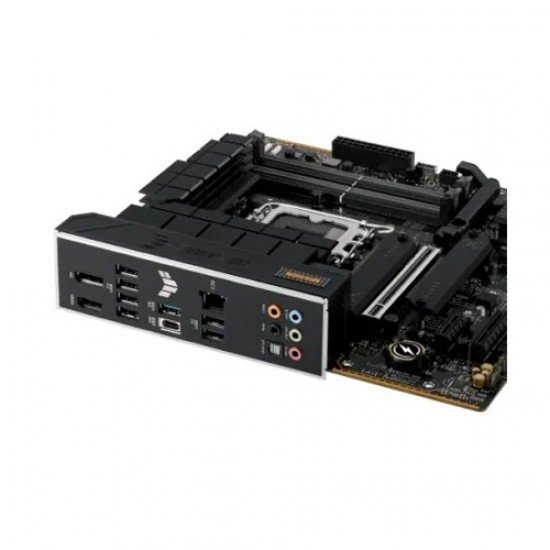

Name: ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard
Brand: Asus
Price: 22400.00 BDT
Availability: OutOfStock

ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard

In Stock

ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard

Stock: In Stock
Brand: Asus
Model: TUF GAMING B760M-PLUS II

Based on 0 reviews. - Write a review

22,400৳

Ex Tax: 22,400৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
- Supported RAM: 4x DDR5, Max 192GB, Support up to 7800+(OC)
- Graphics Output: 1 x DisplayPort, 1 x HDMI port
- Features: 3x M.2 Slot, 1x Realtek 2.5Gb Ethernet

View More Info

Specification

Physical Specification
Type	DDR5
Slots	4 x DIMM
Supported Memory	7800+ OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) ASUS Enhanced Memory Profile II (AEMP II)
Maximum Memory	192GB
Basic Information
Supported CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel B760 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI	Intel Core Processors (14th& 13th& 12th Gen) 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x4 slot 1 x PCIe 3.0 x1 slot
M.2 Socket	Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th& 13th& 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
Graphics
Graphics	1 x DisplayPort 1 x HDMI port Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution.
Connector & Ports
HDMI	1 x HDMI port
RAID	Intel Rapid Storage Technology supportsSATA RAID 0/1/5/10.
Display Port (s)	1 x DisplayPort
USB (s)	Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 8 ports) 1 x USB 10Gbps connector (supports USB Type-C®)* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 5 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet TUF LANGuard
Supported Storage	Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel®Core™Processors (14th& 13th& 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode) Intel®B760 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports
Audio	5 x Audio jacks
Internal I/O Ports	Back Panel I/O Ports 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 5 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (F-AUDIO) 1 x20-3 pin System Panel header with chassis intrusion function 1 x Thunderbolt™ (USB4®) header
Others Information
Bundled Software	ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - DIGI+ VRM - PC CleanerTUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Special Features	ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen 2 headers
Warranty Information
Manufacturing Warranty	3 years warranty

Description

ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard

The ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard is a powerful and durable option designed for gamers, creators, and performance-focused PC builders. Built with the reliability of the TUF series, it offers a perfect balance of strong hardware support, advanced connectivity, and stable power delivery to ensure smooth performance under heavy workloads or long gaming sessions. This motherboard supports 14th, 13th, and 12th Gen Intel Core processors with the LGA1700 socket, making it suitable for modern high-performance builds. With 4x DDR5 RAM slots, you can expand memory up to 192GB, and enjoy extremely fast speeds reaching up to 7800+(OC), ensuring better multitasking, improved rendering performance, and faster load times in demanding games and applications. Storage options are highly flexible, featuring three M.2 slots, allowing users to install multiple high-speed NVMe SSDs for faster booting and rapid game loading. The board also includes PCIe support for modern GPUs, making it ready for the latest graphics cards. For visuals without a dedicated GPU, it includes 1x DisplayPort and 1x HDMI port, supporting high-resolution displays for everyday use or troubleshooting. Networking is fast and stable with a Realtek 2.5Gb Ethernet port, providing low-latency online gaming and smooth data transfer. Additionally, the motherboard is built with military-grade components, including TUF capacitors and enhanced power stages, ensuring long-term durability and reliability. The TUF Gaming B760M-PLUS II also comes with modern connectivity options, including multiple USB ports, high-quality audio, and advanced cooling features to keep your system running at optimal temperatures. Its Micro-ATX design offers great compatibility with a wide range of cases, making it a versatile choice for compact or mid-size gaming builds. Overall, this motherboard delivers a perfect combination of performance, durability, and modern features—ideal for gamers and power users seeking a strong and reliable foundation for their next Intel-based system.

Features of ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard

Compatible with 14th, 13th, and 12th Gen Intel Core processors using the LGA1700 socket.
4x DDR5 RAM slots, supporting up to 192GB and speeds up to 7800+ MHz (OC).
Three M.2 slots for ultra-fast NVMe SSD storage.
PCIe expansion support for modern high-performance graphics cards.
DisplayPort and HDMI outputs for integrated graphics support.
2.5Gb Ethernet (Realtek) for fast and stable network performance.
Military-grade TUF components for improved durability and reliability.
Enhanced power delivery system for better CPU stability during heavy workloads.
Comprehensive cooling options, including multiple fan headers and VRM heatsinks.
High-quality audio chipset for clearer, more immersive sound.
Multiple USB ports, including USB 3.2 options for fast data transfer.
Micro-ATX form factor, suitable for compact and mid-tower builds.
