Name: ASUS Pro B660M-C D4-CSM mATX Motherboard
Brand: Asus
Price: 16500.00 BDT
Availability: OutOfStock

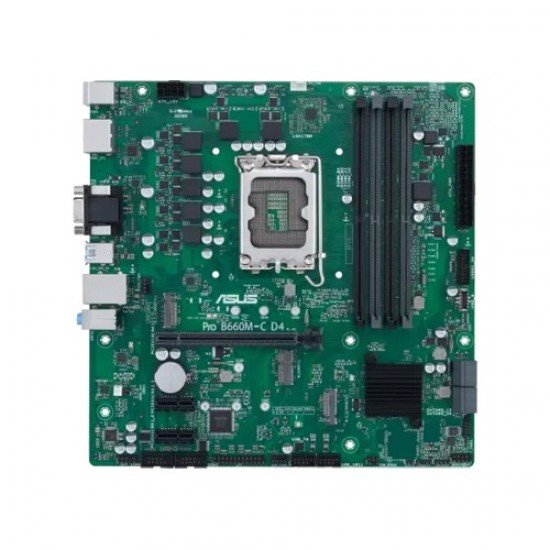

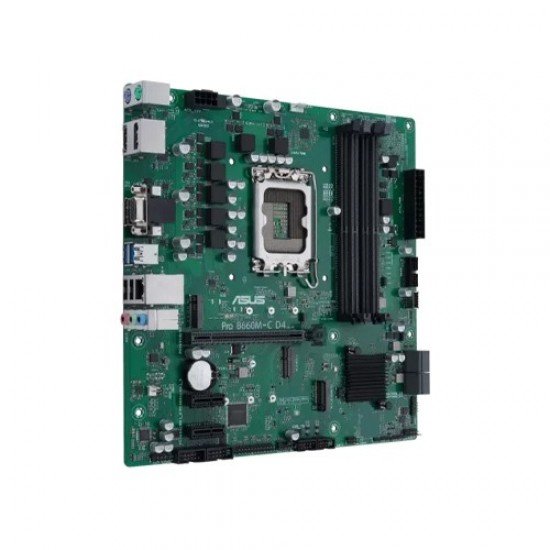

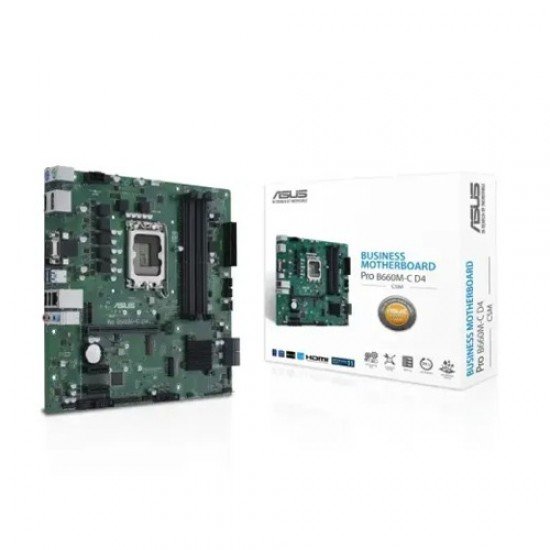

ASUS Pro B660M-C D4-CSM mATX Motherboard

In Stock

ASUS Pro B660M-C D4-CSM mATX Motherboard

Stock: In Stock
Brand: Asus
Model: Pro B660M-C D4-CSM

Based on 0 reviews. - Write a review

16,500৳

Ex Tax: 16,500৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: 14th, 13th & 12th Gen Core, Pentium Gold & Celeron (LGA1700)
- Supported RAM: 4x DDR4, Max 128GB
- Graphics Output: 2 x DisplayPort, 1 x D-Sub, 1 x HDMI
- Features: 1 x Intel 1Gb Ethernet

View More Info

Specification

Physical Specification
Type	DDR4
Slots	4 x DIMM slots
Supported Memory	5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem
Maximum Memory	128GB
Basic Information
Supported CPU	Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel B660 Chipset
BIOS	128Mb Flash ROM
Form Factor	microATX 24.4cm x 24.4cm
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-ret asking - Supports up to 24-Bit/192 kHz playback " * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI	Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 2 x PCIe 3.0 x1 slots
Graphics
Graphics	2 x DisplayPort 1 x D-Sub port 1 x HDMI port Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
Motherboard
Internal I/O Ports	Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header
Connector & Ports
HDMI	1 x HDMI

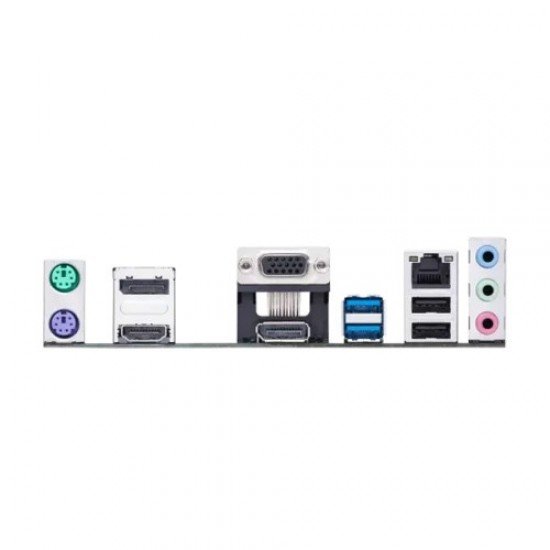

USB (s)	Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)	1 x Intel 1Gb Ethernet ASUS LANGuard
Wireless Communication module	M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately.
Supported Storage	Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Audio	3 x Audio jacks
D-Sub (s)	1 x D-Sub
Others Information
Bundled Software	ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE)
Special Features	ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - Q-LED Core - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection TPM IC onboard
Warranty Information
Manufacturing Warranty	3 Years

Description

ASUS Pro B660M-C D4-CSM mATX Motherboard

The ASUS Pro B660M-C D4-CSM mATX Motherboard is a reliable and business-ready platform designed to deliver stability, security, and long-term performance for professional environments. Built on the Intel B660 chipset and featuring the LGA1700 socket, it supports a wide range of processors including 14th, 13th, and 12th Gen Intel Core, as well as Pentium Gold and Celeron CPUs. This makes it a versatile choice for offices, workstations, and productivity-focused builds that require consistent speed and dependable operation. Equipped with 4 DIMM slots, the motherboard supports up to 128GB of DDR4 memory, allowing for smooth multitasking and efficient handling of demanding applications. The onboard graphics outputs—2 x DisplayPort, 1 x HDMI, and 1 x D-Sub—provide flexible multi-display support, making it ideal for professionals who work with multiple screens, such as designers, analysts, and financial traders. Connectivity and expandability are prioritized with essential features such as Intel 1Gb Ethernet, ensuring stable and secure wired network performance. Multiple PCIe slots and M.2 connectors offer the flexibility to add high-speed SSDs, expansion cards, and other peripherals to enhance productivity and system capabilities. As part of the ASUS Corporate Stable Model (CSM) program, the Pro B660M-C D4-CSM provides long-term availability, enterprise-grade reliability, and IT management tools, making it especially suitable for business deployments. Features such as enhanced security, remote management support, and improved system monitoring help maintain efficient IT operations. Its micro-ATX form factor ensures compatibility with a wide range of cases while offering a balanced combination of performance, durability, and value. Overall, the ASUS Pro B660M-C D4-CSM is an excellent motherboard for users who need a stable, secure, and professional-grade platform for everyday computing and business workloads.

Features of ASUS Pro B660M-C D4-CSM mATX Motherboard

LGA1700 Socket Support for 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors
B660 Chipset optimized for business and professional workloads
4 x DDR4 DIMM Slots supporting up to 128GB memory for smooth multitasking
Multiple Display Outputs including 2 DisplayPort, 1 HDMI, and 1 D-Sub for versatile multi-monitor setups
Intel 1Gb Ethernet for stable and reliable network connectivity
Business-Class Reliability under the ASUS Corporate Stable Model (CSM) program
Comprehensive Security Features such as hardware safeguards and enhanced protection
M.2 and PCIe Expansion Slots for high-speed SSDs and additional hardware upgrades
Efficient Power Design with high-quality components for long-term durability
Micro-ATX Form Factor offering compatibility with many modern PC cases
Advanced Cooling Options with multiple fan headers for better thermal control
Easy BIOS Management with user-friendly ASUS UEFI BIOS interface
Suitable for Workstations & Office PCs thanks to its performance stability and expandability
