Name: ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard
Brand: Asus
Price: 10300.00 BDT
Availability: OutOfStock

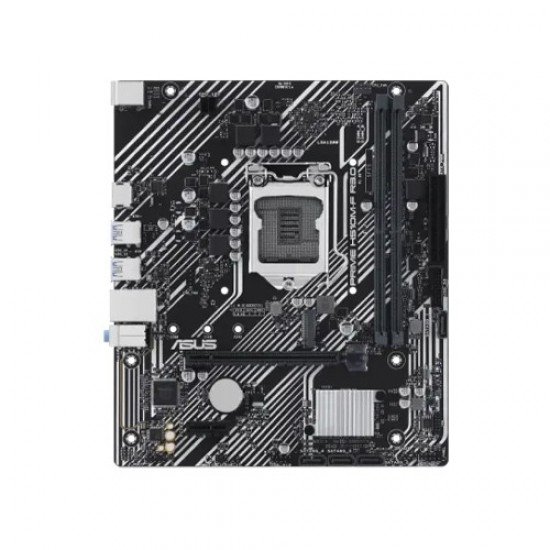

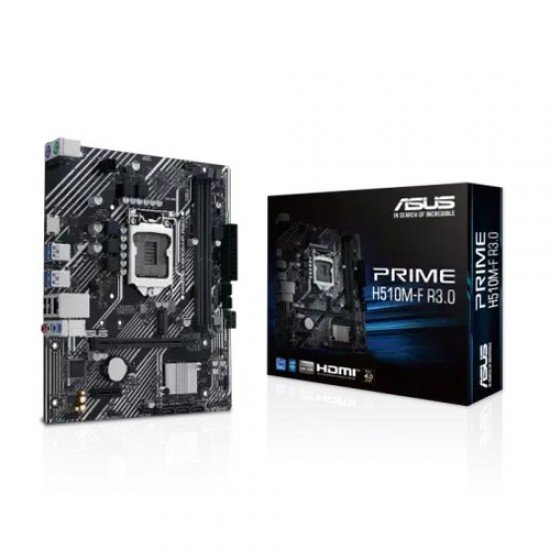

ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard

In Stock

ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard

Stock: In Stock
Brand: Asus
Model: PRIME H510M-F R3.0

Based on 0 reviews. - Write a review

10,300৳

Ex Tax: 10,300৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: 11th and 10th Gen Intel Processors (LGA1200)
- Supported RAM: 2x DDR4, Max 64GB 3200(O.C.)
- Graphics Output: 1x HDMI port
- Features: 1 x Realtek 1Gb Ethernet

View More Info

Specification

Physical Specification
Type	DDR4
Slots	2 x DIMM
Supported Memory	3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666. * 11th Gen Intel processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133.
Maximum Memory	Max. 64GB
Basic Information
Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports up to Intel 65W CPU Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel H470 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 8.9 inch x 7.7 inch ( 22.6 cm x 19.6 cm )
Expansion Slots
PCI	Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H470 Chipset 1 x PCIe 3.0 x1 slot
M.2 Socket	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Graphics
Graphics	Only Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Connector & Ports
HDMI	1x HDMI
USB (s)	Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 1Gb Ethernet port
Supported Storage	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers

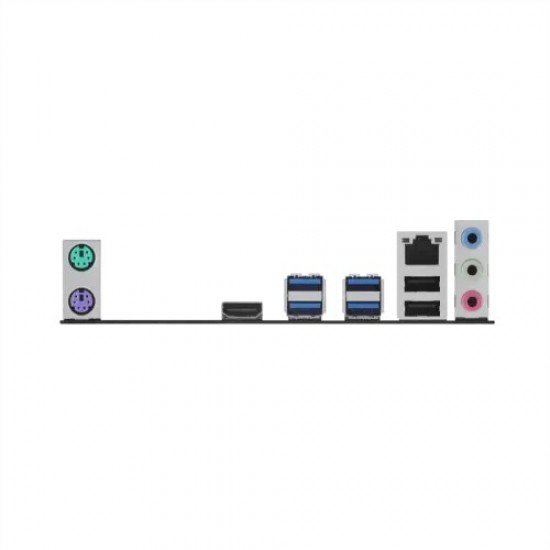

Internal I/O Ports	Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO) 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1 pin)
Others Information
Bundled Software	ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM - EZ update ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Warranty Information
Manufacturing Warranty	3 years

Description

ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard

The ASUS PRIME H510M-F R3.0 is a reliable and well-engineered LGA1200 Micro-ATX motherboard designed to deliver stable performance for everyday computing, office workloads, and entry-level gaming builds. Built with ASUS’s renowned PRIME series philosophy, it focuses on providing a balanced combination of durability, efficiency, and essential features—making it an excellent choice for users who want a dependable system without unnecessary extras. This motherboard supports both 11th and 10th Gen Intel Core processors, offering flexibility for a wide range of performance needs. With the H510 chipset, it ensures smooth system operations and compatibility with modern features. The board includes 2× DDR4 RAM slots, supporting up to 64GB of memory with speeds up to 3200 MHz (O.C.), allowing users to multitask efficiently and run memory-intensive applications with ease. The integrated HDMI output provides convenient display connectivity, making it suitable for systems using Intel’s onboard graphics. Whether you're setting up a compact office PC or a home workstation, the HDMI port ensures that you can quickly connect to modern monitors and enjoy crisp, stable visuals. Connectivity is reliable thanks to the Realtek 1Gb Ethernet port, which offers stable and consistent network performance—ideal for browsing, streaming, online productivity, or light gaming. The board also includes a user-friendly layout with ASUS’s advanced tuning features such as 5X Protection III, ensuring enhanced safety, surge protection, and long-term durability. Its Micro-ATX form factor makes it compatible with a wide range of compact cases while still offering essential expansion options. With thoughtful design, quality components, and optimized power delivery, the ASUS PRIME H510M-F R3.0 stands as a dependable foundation for building a budget-friendly modern PC.

Features of ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard

Supports 11th & 10th Gen Intel Processors for reliable and efficient performance.
LGA1200 socket ensures compatibility with a wide range of Intel CPUs.
2× DDR4 RAM slots supporting up to 64GB with 3200MHz (O.C.) capability.
Micro-ATX form factor fits easily into compact and mid-size PC cases.
HDMI display output for connecting modern monitors using integrated Intel graphics.
Realtek 1Gb Ethernet port provides stable wired network connectivity.
Enhanced power design for stable CPU performance and efficient power delivery.
PCIe expansion slot for adding a dedicated graphics card or other components.
High-quality audio components for clear and reliable sound output.
Multiple USB ports for easy connection of peripherals and external devices.
SATA ports for HDD and SSD storage expansion.
Cooling-friendly layout with fan headers to maintain optimal system temperatures.
ASUS 5X Protection III ensures overall durability with safeguards against electrical hazards.
User-friendly BIOS interface for easy system tuning and configuration.
