| Main Feature | |
| Mounting | 6 mounting holes |
| Basic Information | |
| Chipset | Intel® H510 |
| BIOS | UEFI BIOS |
| Form Factor | Micro-ATX (18*22.5cm) |
| Audio | Realtek 662/887/897 on board, Supports 6-channel audio-out |
| Memory | Dual Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz 1.2V |
| Others | 2 x USB 2.0 pinheader (supports additional 4 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader 1 x Com 1 x DEBUG1 |
| Expansion Slots | |
| PCI | 1 x PCI Express 4.0/3.0 x 16 slot (-11th Gen Intel ® processors support PCIe 4.0 x16 -10th Gen Intel ® processors support PCIe 3.0 x16) 1 x PCI Express x1 slot |
| Connector | |
| SATA | 3 x SATA III 1 x M.2 (PCIe NVMe Gen3 x4) |
| Network & Connectivity | |
| LAN | Realtek RTL8111 1000Mbps Ethernet on board Wake-On-LAN |
| Physical Specification | |
| Accessories | 1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
| Warranty Information | |
| Warranty | 3 years |

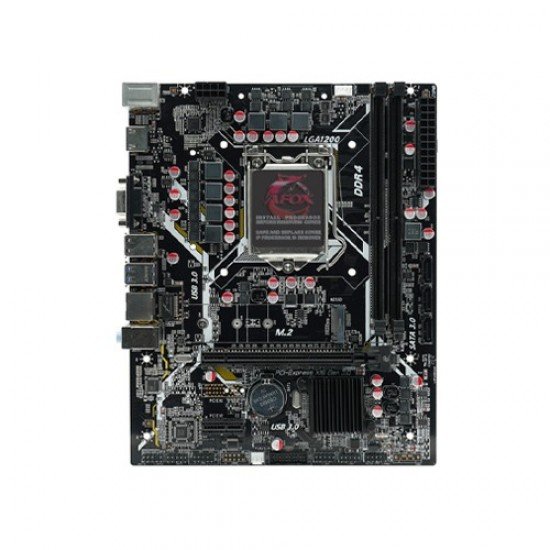

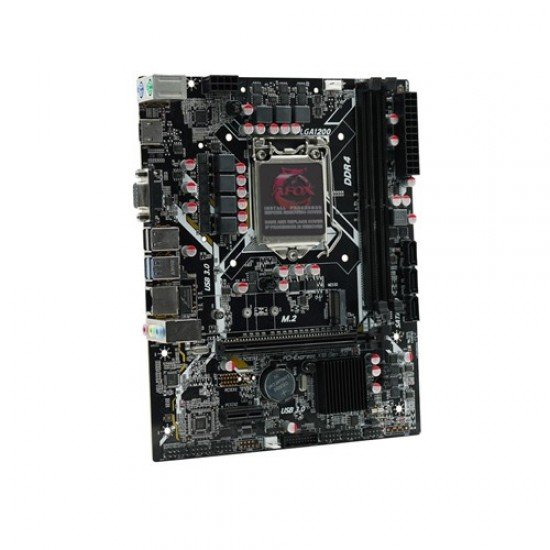

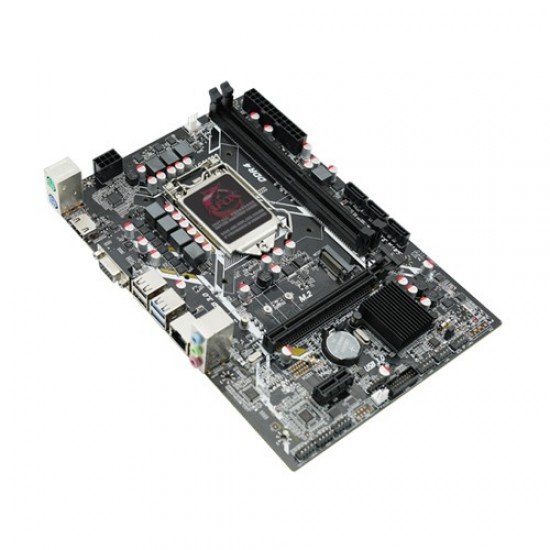

The AFOX IH510D4-MA6-V2 Motherboard is a reliable and efficient platform designed for users who need strong performance, stable operation, and versatile compatibility for modern computing tasks. Powered by the Intel® H510 chipset, this motherboard supports Intel 10th and 11th Generation Core™ i3, i5, i7, and i9 processors on the LGA 1200 socket, offering excellent flexibility whether you are building a home PC, office workstation, or light gaming setup. With support for CPUs up to 125 watts, it ensures sufficient power delivery and consistent performance for demanding applications. Equipped with dual-channel DDR4 memory, the board supports frequencies from 2133 MHz up to 3200 MHz (O.C.), allowing users to fine-tune performance and achieve faster multitasking. The maximum memory capacity of 64GB ensures smooth operation for productivity, browsing, streaming, and even moderate content creation workloads. This makes the motherboard suitable for both everyday users and professionals who require dependable system responsiveness. The AFOX IH510D4-MA6-V2 also features high-speed USB connectivity, enabling quick data transfers and seamless peripheral support for devices such as external drives, printers, and accessories. The board is built with attention to audio quality, including high-quality audio capacitors and an independent audio block with LED isolation lines. This design helps reduce noise interference to deliver clearer and more immersive sound whether you are gaming, watching movies, or using communication apps. With its compact design and essential feature set, the motherboard is ideal for budget-friendly PC builds without compromising reliability. It provides a solid foundation for users seeking performance, stability, and long-term durability in their computing experience. The AFOX IH510D4-MA6-V2 stands out as a practical and efficient motherboard that supports modern hardware while maintaining excellent value.
