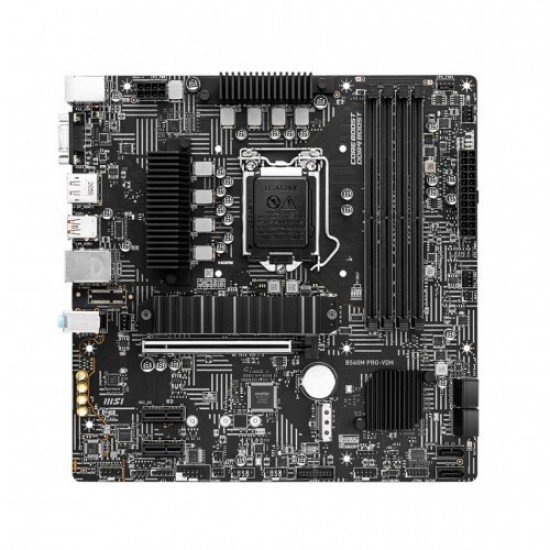

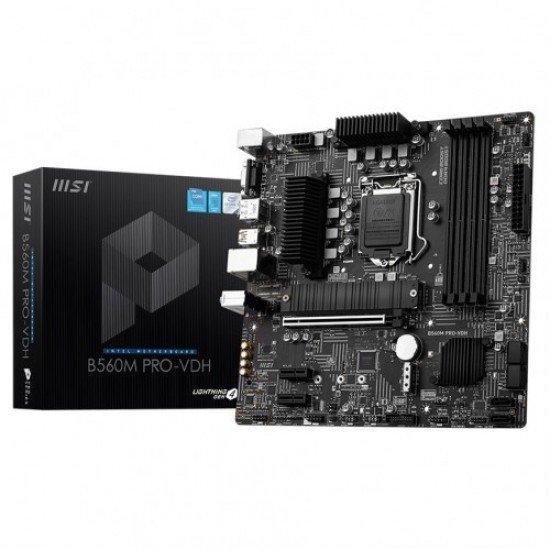

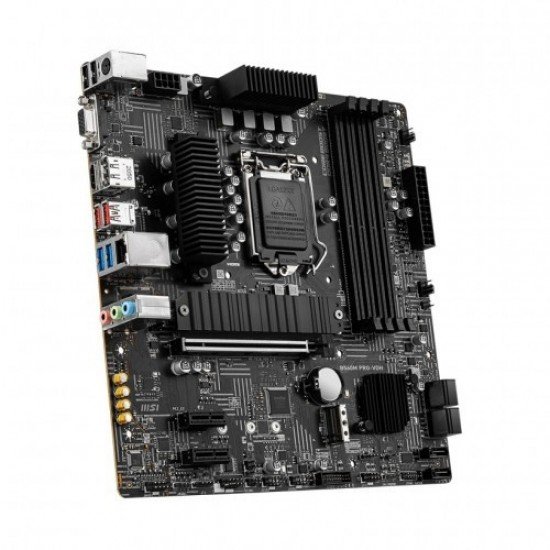

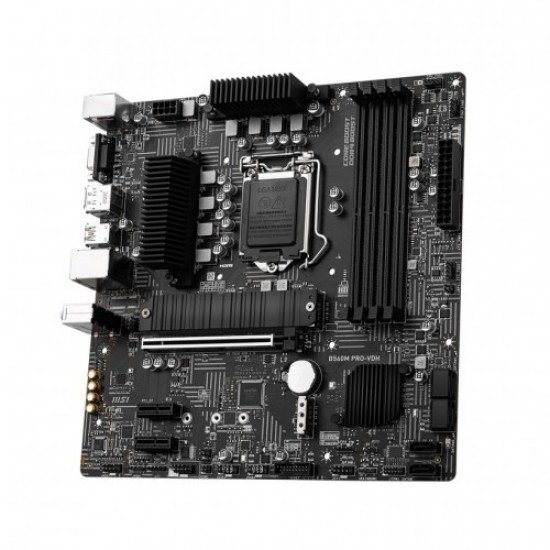

MSI B560M PRO-VDH 10th and 11th Gen Micro ATX Motherboard

MSI B560M PRO-VDH 10th and 11th Gen Micro ATX Motherboard

The MSI B560M PRO-VDH Micro-ATX motherboard is a high-performance solution designed for users building a compact yet powerful Intel-based PC. Compatible with 10th and 11th Gen Intel Core processors, along with Pentium Gold and Celeron CPUs, this motherboard ensures excellent versatility for gaming, productivity, and multimedia applications. Built on the Intel B560 chipset with the LGA1200 socket, it provides robust support for modern Intel processors and advanced features. This motherboard supports dual-channel DDR4 memory with four DIMM slots, allowing up to 128GB of RAM. Memory speeds can be pushed to 5066 MHz (OC) for a single module, offering exceptional performance for multitasking, content creation, and gaming. The Intel Extreme Memory Profile (XMP) is also supported, enabling easy overclocking for memory enthusiasts. Graphics options are abundant with integrated outputs, including HDMI 2.0b, DisplayPort 1.4, and VGA, supporting resolutions up to 4K @60Hz. Users can connect discrete GPUs through the PCIe x16 slot, which supports PCIe 4.0 for 11th Gen Intel CPUs, along with two additional PCIe x1 slots for expansion cards. Storage options are flexible with six SATA 6Gb/s ports and two M.2 slots, supporting both PCIe 4.0 x4 and PCIe 3.0 x4 SSDs, providing fast, reliable storage for OS drives and large datasets. Features like Intel Optane Memory and Intel Smart Response Technology enhance system responsiveness. Connectivity is modern and convenient, including USB 3.2 Gen2 Type-A ports, USB 3.2 Gen1, USB 2.0 ports, and 2.5Gbps LAN for stable network performance. Audio is powered by the Realtek AL897 Codec, offering 7.1-channel HD sound for gaming and multimedia. With comprehensive internal headers for fans, pumps, front-panel connectors, and TPM module support, the MSI B560M PRO-VDH is ideal for both casual users and system builders seeking a compact, high-performing, and reliable motherboard. It comes with a 3-year manufacturing warranty, ensuring peace of mind.

Features Of MSI B560M PRO-VDH 10th and 11th Gen Micro ATX Motherboard

• Wide CPU Compatibility: Supports 10th and 11th Gen Intel Core processors, Pentium Gold, and Celeron CPUs on the LGA1200 socket, making it ideal for compact gaming, productivity, and multimedia PCs.
• High-Speed DDR4 Memory: Features four DDR4 DIMM slots supporting up to 128GB RAM with overclocking speeds up to 5066 MHz (OC) via Intel XMP, ensuring smooth multitasking, fast loading times, and improved system performance.
• Next-Generation PCIe Support: Includes one PCIe x16 slot with PCIe 4.0 support for 11th Gen Intel CPUs and two PCIe 3.0 x1 slots, providing versatile expansion options for graphics cards and peripherals.
• Flexible Storage Options: Equipped with two M.2 slots supporting PCIe 4.0 x4/PCIe 3.0 x4 and six SATA 6Gb/s ports, allowing fast NVMe SSDs and additional drives, plus Intel Optane Memory and Smart Response Technology support for enhanced system responsiveness.

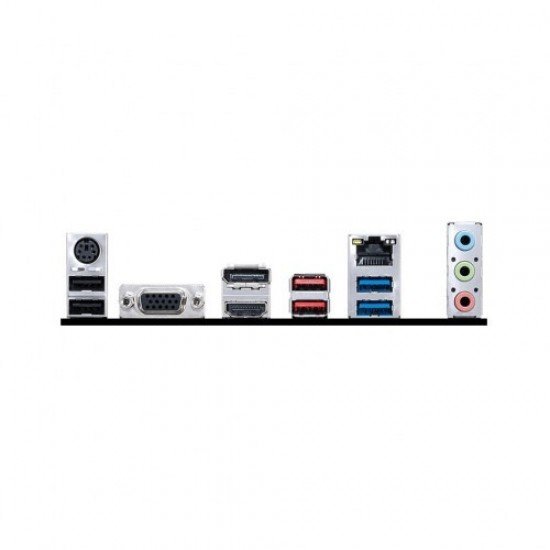

• Comprehensive Graphics Output: Integrated HDMI 2.0b, DisplayPort 1.4, and VGA outputs support resolutions up to 4K @60Hz, delivering crisp visuals for both gaming and professional workloads.
• Advanced Networking & Connectivity: Features 2.5Gbps LAN for stable wired connections, multiple USB 3.2 Gen2/Gen1 and USB 2.0 ports for fast peripheral connectivity.
• High-Definition Audio & Durability: Realtek AL897 7.1-channel HD audio with front-panel support ensures immersive sound, while internal fan headers, TPM support, and robust Micro-ATX design deliver long-lasting reliability.
