| DVR / NVR / XVR Specification | |
| Auxiliary Interface | SATA : 1 SATA interface Capacity : Up to 6 TB capacity for each disk USB Interface : Real panel: 2 × USB 2.0 Alarm In/Out : N/A |
| Network | Remote Connection : 128 Total Bandwidth : 128 Mbps128 Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF128 Network Interface : 1, RJ45 10M/100M/1000M128 self-adaptive Ethernet interface128 |
| Recording | Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution : When 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF Frame Rate : Main stream: When 1080p Lite mode is not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) Video Bitrate : 32 Kbps to 6 Mbps Dual-Stream : Support Stream Type : Video, Video & Audio Audio Compression : G.711u Audio Bitrate : 64 Kbps |
| Video and Audio | IP Video Input : 2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Analog Video Input : 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection Incoming Bandwidth : 96 Mbps HDTVI Input : 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 *: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1. AHD Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30 HDCVI Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30 CVBS Input : Support HDMI Output : 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ) 16-ch via coaxial cable Audio Output : 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Synchronous Playback : 16-ch |
| General | |
| Power | Power Supply : 12 VDC, 1.9 A |
| Physical Specification | |
| Others | Consumption : ≤ 15 W Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F) Working Humidity : 10% to 90% |
| Dimensions | 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch) ≤ 1 kg (2.2 lb) |
| Warranty Information | |
| Warranty | 01 year warranty |

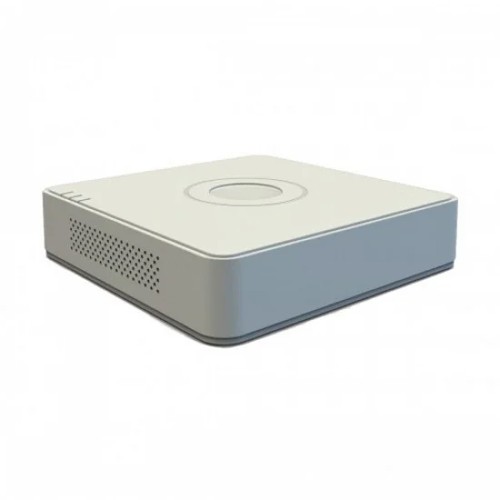

The Hikvision DS-7116HQHI-K1 16 Channel HD 1080p Turbo HD DVR is a high-performance surveillance solution engineered for both residential and commercial security systems. Priced at 17,750৳, this DVR delivers exceptional value for users seeking a reliable and advanced recording system. At IndexIT, we ensure that customers receive original Hikvision products along with expert support, smooth installation guidance, and fast nationwide delivery.
This 16-channel DVR supports Full HD 1080p video recording, offering clear and detailed footage suitable for monitoring offices, shops, warehouses, and large multi-area environments. With efficient H.265+ video compression technology, it maximizes storage capacity while maintaining superior video quality. IndexIT focuses on providing powerful surveillance solutions at the best competitive price, making the DS-7116HQHI-K1 an excellent addition for upgrading or expanding security infrastructure.
Featuring smart motion detection, mobile remote viewing through the Hik-Connect app, and smooth multi-channel playback, this DVR ensures easy management and strong security performance. The Hikvision DS-7116HQHI-K1, combined with IndexIT’s trusted service and wide range of security accessories, becomes a dependable investment for long-term monitoring and protection.
Below are the advanced key features that make this DVR a strong choice for modern surveillance systems. Each feature is designed to improve monitoring efficiency and ensure consistent performance.
16-channel HD 1080p input for extensive coverage
H.265+ video compression saves significant storage space
Supports multiple camera formats: HDTVI, AHD, CVI, CVBS, and IP
Smooth multi-channel real-time playback
Smart motion detection for event-based alerts
Remote viewing via the Hik-Connect mobile application
USB backup capacity for easy data transfer
Durable build with efficient heat management
Below is a clear breakdown of the major advantages that users gain from the Hikvision DS-7116HQHI-K1 DVR. These points highlight its reliability and long-term value.
Wide surveillance coverage suitable for large commercial or residential setups.
Highly efficient H.265+ compression reduces storage costs by optimizing video data.
Full HD 1080p recording ensures accurate capture of crucial details.
Mobile remote monitoring allows convenient access to live footage from anywhere.
Broad camera compatibility makes upgrades and system expansions easy.
Strengthen your surveillance setup with the Hikvision DS-7116HQHI-K1 16 Channel HD 1080p Turbo HD DVR, available at IndexIT—your trusted destination for genuine security products, expert guidance, and reliable after-sales support. IndexIT specializes in delivering high-quality surveillance solutions tailored for homes, offices, and commercial environments, ensuring long-term durability and exceptional performance. Enjoy clear HD video, real-time audio monitoring, and enhanced protection with intelligent motion-detection capabilities. Check the new HIKVISION DS-7232HGHI-K2 32-CH Turbo HD 720P DVR for security indoors. You can explore our wide range of HikVision CC cameras, security systems, HD CC cameras, IP cameras, and DVR devices, all designed to enhance your surveillance setup. Don’t compromise on safety. Choose IndexIT for authentic products, fast delivery, and expert guidance to safeguard your home or business today!
