| Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920(H) * 1080(V) |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens Mount | M16 |
| Adjustment Range | Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360° |
| Day & Night | Color |
| Video Frame Rate | 1080p@25fps/1080p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| Up the Coax | Support |
| White Balance | Auto/MWB |
| BLC | Support |
| AGC | Support |
| White Light | Up to 40 m |
| Operating Conditions | -40 °C – 60 °C (-40 °F – 140 °F) |
| Humidity | 90% or less (non-condensing) |
| Power Supply | 12 VDC ±25% (*Recommended: Use one power adapter for each camera) |
| Weather Proof | IP67 |
| Communication | Up the coax |
| Protocol | HIKVISION-C (Coaxitron) |
| Dimension | 223.1 mm × 77.1 mm × 82.6 mm (8.78″ × 3.04″ × 3.25″) |
| Weight | Approx. 436 g (0.96 lb.) |

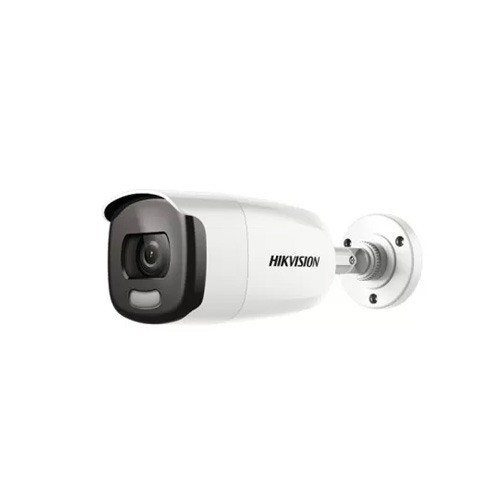

The HikVision DS-2CE12DFT-F 2 MP Full-Time Color Bullet CC Camera offers advanced surveillance capabilities with its cutting-edge features. Equipped with a powerful 2MP CMOS image sensor, it delivers high-resolution images with a pixel count of 1920(H) * 1080(V). The camera supports both PAL and NTSC signal systems, ensuring compatibility with various display devices. One standout feature is its Full-Time Color capability, providing vibrant and detailed color images around the clock. The camera operates seamlessly in diverse lighting conditions, from day to night. The day and night mode allows for full-color recording even in low-light environments, enhancing visibility and capturing crucial details. The camera's lens system with M16 mount and a wide adjustment range (Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°) provides flexible positioning for optimal coverage. With a video frame rate of 1080p at 25fps or 30fps, it ensures smooth and clear video playback. The HD video output and internal synchronization contribute to a hassle-free integration process. Additionally, the camera supports "Up the Coax" functionality, simplifying installation and configuration. Essential features like White Balance, BLC (Backlight Compensation), and AGC (Automatic Gain Control) enhance image quality in challenging lighting scenarios. The White Light feature extends visibility up to 40 meters, contributing to effective monitoring in low-light conditions. Built to withstand harsh weather conditions, the camera boasts an IP67 weatherproof rating, making it suitable for outdoor installations. The robust construction ensures reliable performance in temperatures ranging from -40 °C to 60 °C. With a dimension of 223.1 mm × 77.1 mm × 82.6 mm and a weight of approximately 436 g (0.96 lb.), this camera offers a compact and lightweight solution for a wide range of surveillance applications. The HikVision DS-2CE12DFT-F combines advanced imaging technology, versatile features, and robust design, making it an ideal choice for users seeking reliable and high-performance surveillance solutions.
In summary, the HikVision DS-2CE12DFT-F camera combines advanced imaging technology, versatile features, and a robust design, making it an excellent choice for users seeking a reliable and high-performance surveillance solution.
