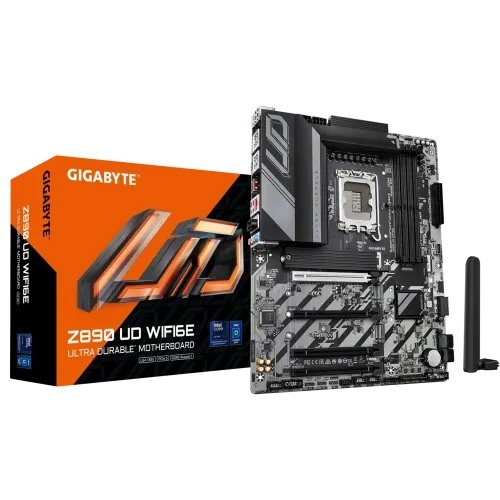

Name: Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard
Brand: GIGABYTE
Price: 31930.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard

-2 % In Stock

Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard

Stock: In Stock
Brand: GIGABYTE
Model: Z890 UD WIFI6E

Based on 1 reviews. - Write a review

31,930৳

32,500৳

Ex Tax: 31,930৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: Intel Core Ultra Processors (Series 2)
- Supported RAM: 4x DDR5, Max 256GB
- Graphics Output: 1x USB4 USB Type-C
- Features: 3x M.2 slots, Wi-Fi 6E

View More Info

Specification

Physical Specification
Slots	4 x DIMM
Supported Memory	Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module
Maximum Memory	up to 256 GB (64 GB single DIMM capacity) of system memory
Basic Information
Supported CPU	LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU
Chipset	Intel Z890 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Type	DDR5
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
M.2 Socket	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
Graphics
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version
Connector & Ports
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Display Port (s)	1 x DisplayPort
LAN Port (s)	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	ntel® Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x USB4® USB Type-C® port (DisplayPort (Note)) 1 x USB 3.2 Gen 2 Type-A port (red) 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
Others Information
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Warranty Information
Warranty	3 Year

Description

Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard

The Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard is a high-performance platform engineered to support Intel’s latest Core Ultra Series 2 processors, providing exceptional computing power for gamers, content creators, and professionals. Built on the advanced Intel Z890 Express chipset, this motherboard delivers reliable system stability, efficient power management, and high-speed data handling, making it ideal for demanding applications and multitasking environments. Supporting DDR5 memory, the Z890 UD WIFI6E features four DIMM slots capable of accommodating up to 256GB of RAM, with overclocked speeds up to 9200MHz (O.C.), enabling seamless multitasking and low-latency performance. The dual-channel memory architecture also supports ECC and non-ECC modules, along with Extreme Memory Profile (XMP) and CUDIMM memory for maximum flexibility and future scalability. For storage, the motherboard offers a comprehensive solution with four M.2 slots—including one PCIe 5.0 x4 connector and three PCIe 4.0 slots—plus four SATA 6Gb/s ports, supporting RAID 0, 1, 5, and 10 configurations. This ensures lightning-fast boot times, efficient data transfer, and expanded storage options for modern PCs. Graphics support is versatile with integrated Intel HD Graphics, a USB4 Type-C port with DisplayPort support, and a dedicated DisplayPort, allowing resolutions up to 3840×2160 at 144Hz. A PCIe 5.0 x16 slot provides full bandwidth for modern GPUs, making it ideal for high-end gaming and professional rendering. Connectivity features include Intel Wi-Fi 6E AX211, Bluetooth 5.3, and Realtek 2.5GbE LAN, delivering low-latency, high-speed networking. The motherboard is equipped with multiple USB ports, Thunderbolt™ add-in card support, audio jacks powered by Realtek, and extensive internal headers for fans, RGB, and system monitoring. Additional features like Q-Flash, Q-Flash Plus, Smart Backup, and support for GIGABYTE Control Center enhance usability and customization. With a 3-year warranty, the Gigabyte Z890 UD WIFI6E is a robust, future-ready motherboard designed for high-performance, versatile PC builds.

Features of Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard

Supported CPU: Compatible with Intel Core Ultra Processors (Series 2) via LGA1851 socket, delivering high-performance computing for gaming, content creation, and professional workloads.
Memory Support: 4 x DDR5 DIMM slots supporting up to 256GB RAM with overclocking up to 9200MHz (O.C.), dual-channel architecture, XMP, ECC, and CUDIMM memory support for ultimate multitasking efficiency.
Graphics Output: Integrated Intel HD Graphics support with 1 x USB4 Type-C port (DisplayPort) and 1 x dedicated DisplayPort, allowing up to 3840x2160@144Hz for high-resolution visuals.
Expansion Slots & Storage: 1 x PCIe 5.0 x16 slot, 2 x PCIe 4.0 x16 slots, and 3 x M.2 connectors plus 4 SATA 6Gb/s ports, supporting RAID 0/1/5/10 for flexible storage options and fast data transfer.
Networking & Connectivity: Intel Wi-Fi 6E AX211, Realtek Wi-Fi 6E RTL8852CE, Bluetooth 5.3, and Realtek 2.5GbE LAN for low-latency, high-speed wired and wireless connections.
Audio & Multimedia: High-definition audio powered by Realtek Audio CODEC with 2/4/5.1/7.1-channel support, multiple internal audio headers, and 3 x back panel audio jacks for immersive sound.
Special Features & Software: Q-Flash, Q-Flash Plus, Smart Backup, support for GIGABYTE Control Center (GCC), Thunderbolt™ add-in card support, and bundled Norton Internet Security for enhanced system management and customization.
