| Basic Information |
| Supported CPU |
LGA1700 socket: Support for the 14th Gen, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU |
| Chipset |
Intel Z790 Express Chipset |
| BIOS |
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
| Audio |
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out |
| Expansion Slots |
| PCI |
CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
| Memory |
| Type |
DDR5 |
| Slots |
4 x DIMM sockets |
| Supported Memory |
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory |
128GB (32 GB single DIMM capacity) |
| Graphics |
| Graphics |
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60
* Support for DisplayPort 1.2 version and HDCP 2.3 |
| Connector & Ports |
| HDMI |
1 x HDMI |
| Display Port (s) |
1 x DisplayPort |
| USB (s) |
Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) |
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module |
Intel Wi-Fi 6E AX211
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Supported Storage |
CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors |
| RAID |
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Audio |
2 x audio jacks |
| Internal I/O Ports |
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Others |
| Special Features |
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup |
| Bundled Software |
Norton Internet Security (OEM version)
LAN bandwidth management software |
| Warranty Information |
| Manufacturing Warranty |
3 years |

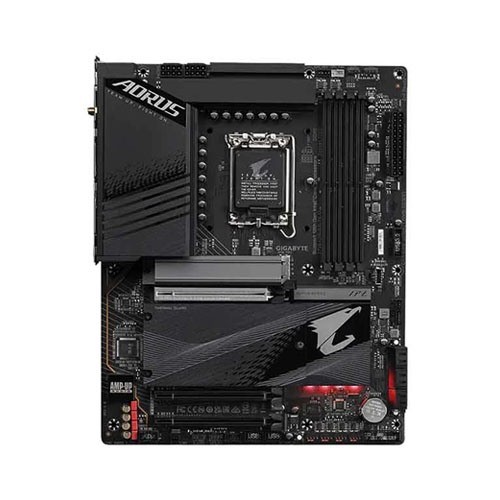

GIGABYTE Z790 AORUS ELITE AX ATX Motherboard
The GIGABYTE Z790 AORUS ELITE AX ATX Motherboard is a high-performance solution designed for gamers, content creators, and PC enthusiasts who demand stability, speed, and cutting-edge features. Engineered with the latest Intel Z790 chipset, this motherboard supports 12th and 13th-gen Intel processors, delivering superior computing power for multitasking, gaming, and professional workloads. Available at IndexIT in Bangladesh for a competitive price starting at 42,860৳, this motherboard combines performance, durability, and expandability in a single package.
Built for advanced performance, the Z790 AORUS ELITE AX features robust power delivery systems, multiple PCIe 5.0 slots, and DDR5 memory support, ensuring your system runs smoothly even under heavy workloads. The motherboard also includes high-speed connectivity options such as USB 3.2 Gen 2x2, Wi-Fi 6E, and 2.5GbE LAN for low-latency gaming and fast data transfer. Its elegant design is enhanced with RGB Fusion 2.0, allowing users to personalize the lighting to match their PC build aesthetic.
At IndexIT, we ensure that every product you purchase is genuine, backed by warranty, and comes with professional guidance for installation and setup. With the Z790 AORUS ELITE AX, users can enjoy an optimal balance of performance, style, and future-proof technology, making it an ideal choice for anyone looking to build or upgrade a high-performance PC.
Features of This Motherboard
The GIGABYTE Z790 AORUS ELITE AX is packed with next-generation features designed to enhance gaming, multitasking, and overall PC performance. Key highlights include:
-
Intel Z790 Chipset Support – Compatible with 12th and 13th Gen Intel CPUs for top-tier performance.
-
DDR5 Memory Compatibility – High-speed memory support ensures smoother multitasking.
-
PCIe 5.0 Slots – Future-proof graphics performance with faster bandwidth.
-
Wi-Fi 6E & 2.5GbE LAN – Ultra-fast and low-latency connectivity.
-
M.2 Thermal Guard – Protects storage devices from thermal throttling for consistent performance.
-
RGB Fusion 2.0 – Customizable lighting to match your build aesthetics.
-
Durable Power Design – Stable and efficient power delivery for gaming and heavy workloads.
High Benefits of This Motherboard
The GIGABYTE Z790 AORUS ELITE AX ATX motherboard offers numerous benefits that maximize performance, reliability, and user experience:
-
Exceptional Gaming Performance – Supports high-end GPUs and fast memory for smooth gameplay.
-
Future-Proof Technology – DDR5 and PCIe 5.0 ensure compatibility with next-gen hardware.
-
Stable Power Delivery – Durable components maintain performance under heavy workloads.
-
Customizable Aesthetics – RGB Fusion 2.0 allows personalized lighting effects.
-
Fast Storage & Data Access – Multiple M.2 NVMe slots ensure rapid game and app loading.
Upgrade Your PC Today with IndexIT – GIGABYTE Z790 AORUS ELITE AX
Experience unmatched performance and reliability with the GIGABYTE Z790 GAMING X AX ATX Motherboard, available exclusively at IndexIT. Known for providing genuine products, professional support, and warranty-backed service, Index IT ensures your PC build is both powerful and future-ready. This motherboard delivers superior gaming performance, fast connectivity, and advanced features for seamless multitasking, content creation, and gaming experiences. If you like this product and feel it matches your performance, then IndexIT also suggests checking out the GIGABYTE Z790 D AC 14th, 13th, and 12th Gen ATX Motherboard as well. It delivers powerful compatibility, smooth performance, and premium build quality—making it an excellent alternative to compare before making your final decision. Explore our wide range of GIGABYTE motherboards (Intel), Motherboards, GIGABYTE laptops, GIGABYTE PC bundles, and GIGABYTE motherboards (AMD)brand PCs, all curated for high performance and reliability. Don’t compromise on quality—choose IndexIT for authentic products, expert guidance, and fast delivery to elevate your computing experience today!
