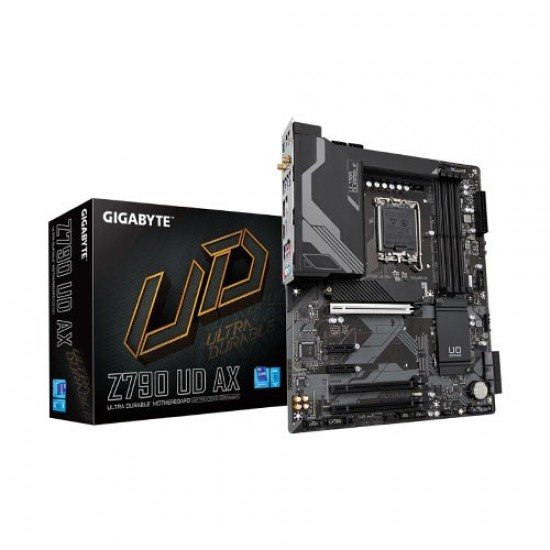

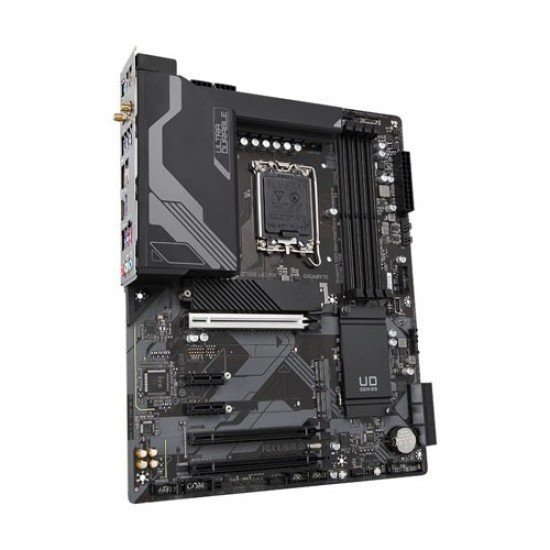

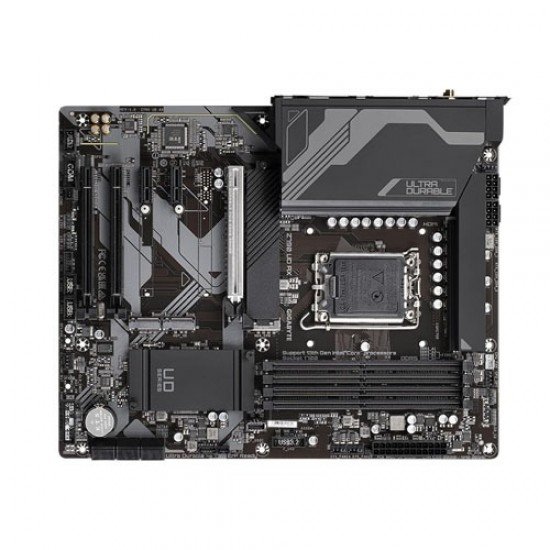

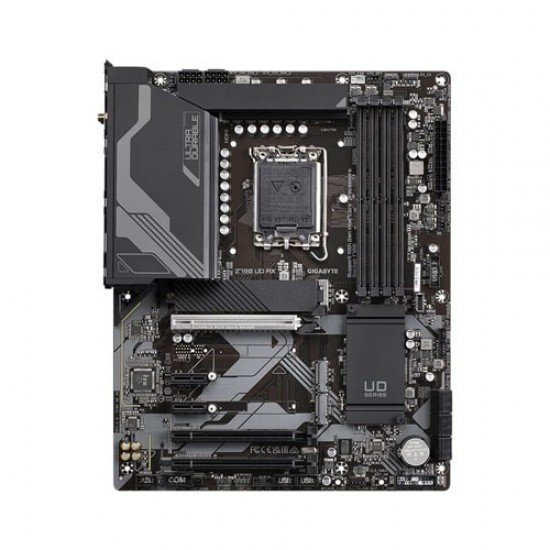

Name: GIGABYTE Z790 UD AX ATX Motherboard
Brand: Gigabyte
Price: 30900.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

-2 % In Stock

GIGABYTE Z790 UD AX ATX Motherboard

Stock: In Stock
Brand: Gigabyte
Model: Z790 UD AX

Based on 1 reviews. - Write a review

30,900৳

31,500৳

Ex Tax: 30,900৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
- Supported RAM: 4 x DDR5 DIMMs, up to 7600(O.C.)
- Graphics Output: 1 x HDMI, 1 x DisplayPort
- Features: 2.5GbE LAN & Wi-Fi 6E 802.11ax

View More Info

Specification

Physical Specification
Slots	4 x DIMM sockets
Supported Memory	7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	128GB (32 GB single DIMM capacity)
Basic Information
Supported CPU	LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset	Intel Z790 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Type	DDR5
Expansion Slots
PCI	CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) Support for AMD CrossFire technology (PCIEX16 and PCIEX4)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Connector & Ports
HDMI	1 x HDMI
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Display Port (s)	1 x DisplayPort

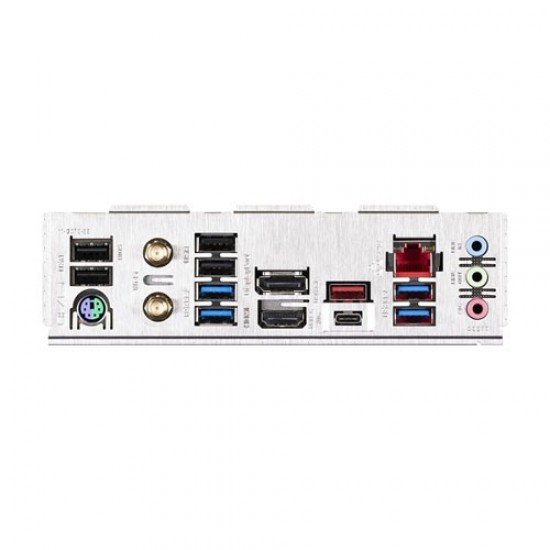

USB (s)	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) 6 x SATA 6Gb/s connectors
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others Information
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Warranty Information
Warranty	3 years

Description

GIGABYTE Z790 UD AX ATX Motherboard

The GIGABYTE Z790 UD AX ATX Motherboard is a powerful and future-ready platform designed for users who want maximum performance, speed, and connectivity from their Intel-based PC builds. Powered by the Intel Z790 Express chipset and featuring the LGA1700 socket, this motherboard fully supports 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors, making it ideal for high-end gaming, professional content creation, and heavy multitasking. Built in a full-size ATX form factor (30.5cm x 24.4cm), the Z790 UD AX offers excellent expandability. It features a PCIe 5.0 x16 slot for next-generation graphics cards, alongside additional PCIe 4.0 and PCIe 3.0 slots for capture cards, storage adapters, and other expansion needs. Memory support is a major highlight, with four DDR5 DIMM slots supporting speeds up to 7600MHz (OC) and a maximum capacity of 128GB. Intel XMP support allows easy memory overclocking for enhanced system responsiveness. Storage options are extensive, including three PCIe 4.0 M.2 slots for ultra-fast NVMe SSDs and six SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support for flexible storage configurations. For connectivity, the motherboard is equipped with Realtek 2.5GbE LAN for high-speed wired networking, along with built-in Wi-Fi 6E and Bluetooth 5.2 for fast and stable wireless connections. The Z790 UD AX also delivers immersive audio through a Realtek High Definition Audio codec with 7.1-channel support and S/PDIF Out. A wide range of USB ports, including USB Type-C with USB 3.2 Gen 2x2 support, ensures fast data transfer and broad device compatibility. Additional features such as Q-Flash Plus, Smart Backup, RGB headers, and GIGABYTE Control Center make this motherboard a reliable, user-friendly, and future-proof choice, backed by a 3-year manufacturing warranty.

Features Of GIGABYTE Z790 UD AX ATX Motherboard

Broad CPU Compatibility: Supports 14th, 13th, and 12th Gen Intel processors on the LGA1700 socket, ensuring long-term upgrade flexibility.
High-Speed DDR5 Memory: Four DDR5 DIMM slots support memory speeds up to 7600MHz (OC) with a maximum capacity of 128GB for smooth multitasking.
Next-Gen PCIe 5.0 Support: Equipped with a PCIe 5.0 x16 slot, delivering maximum bandwidth for modern and future graphics cards.
Advanced Storage Options: Includes three PCIe 4.0 M.2 slots and six SATA ports with RAID 0/1/5/10 support for speed and data security.
Powerful Connectivity: Features Realtek 2.5GbE LAN and built-in Wi-Fi 6E (802.11ax) with Bluetooth 5.2 for fast, reliable networking.
Versatile Display Output: Offers HDMI and DisplayPort outputs, supporting high-resolution displays through integrated Intel graphics.
Enhanced User Features: Q-Flash Plus, Smart Backup, RGB headers, and GIGABYTE Control Center provide easy system management and customization
