| Processor |
| CPU Socket |
LGA1700 Socket: Support For The 14th, 13th, And 12th Generation Intel Core, Pentium Gold And Celeron Processors
(Go To GIGABYTE's indexit For The Latest CPU Support List.)
L3 Cache Varies With CPU |
| Mainboard |
| Chipset |
Intel Z790 Express Chipset |
| Memory |
| Memory Platform |
14th And 13th Generation Intel Core I9/I7 Processors:
- Support For DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /
6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) /
5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/S Memory Modules
13th Generation Intel Core I5/I3 And 12th Generation Intel Core, Pentium Gold And Celeron Processors:
- Support For DDR5 4800/4400 MT/S Memory Modules
4 X DDR5 DIMM Sockets Supporting Up To 192 GB (48 GB Single DIMM Capacity) Of System Memory
Dual Channel Memory Architecture
Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode)
Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules
Support For Extreme Memory Profile (XMP) Memory Modules
(The CPU And Memory Configuration May Affect The Supported Memory Types,
Data Rate (Speed), And Number Of DRAM Modules, Please Refer To "Memory Support List" On GIGABYTE's indexit
For More Information.) |
| Storage |
| Storage Type |
CPU:
- 1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU)
Chipset:
- 1 X M.2 Connectors (Socket 3, M Key, Type 2280 PCIe 4.0 X4/X2 SSD Support) (M2P_SB)
- 1 X M.2 Connectors (Socket 3, M Key, Type 2280 SATA And PCIe 4.0 X4/X2 SSD Support) (M2M_SB)
- 4 X SATA 6Gb/S Connectors
RAID 0, RAID 1, RAID 5, And RAID 10 Support For NVMe SSD Storage Devices
RAID 0, RAID 1, RAID 5, And RAID 10 Support For SATA Storage Devices |
| Graphics |
| Graphics Chipset |
Integrated Graphics Processor-Intel HD Graphics Support:
- 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz
* Support For HDMI 2.1 Version And HDCP 2.3.
** Support For Native HDMI 2.1 TMDS Compatible Ports.
- 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz
* Support For DisplayPort 1.2 Version And HDCP 2.3
(Graphics Specifications May Vary Depending On CPU Support.) |
| Audio & Microphone |
| Audio Technology |
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-Channel
* You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure
7.1-Channel Audio, Access The Audio Software For Audio Settings.
Support For S/PDIF Out |
| Networking & Connectivity |
| Wireless Connectivity |
Intel Wireless- AC 9560 (PCB Rev. 1.0)
- WIFI 802.11 A, B, G, N, Ac, Supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5.1
- Support 11ac 160MHz Wireless Standard
(Actual Data Rate May Vary Depending On Environment And Equipment.) |
| LAN |
Realtek 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Ports |
| Connector |
Back Panel Connectors:
1 X PS/2 Keyboard/Mouse Port
1 X USB Type-C Port, With USB 3.2 Gen 2 Support
1 X USB 3.2 Gen 2 Type-A Port (Red)
4 X USB 3.2 Gen 1 Ports
2 X USB 2.0/1.1 Ports
2 X SMA Antenna Connectors (2T2R)
1 X HDMI Port
1 X DisplayPort
1 X RJ-45 Port
3 X Audio Jacks |
| Internal I/O Ports |
1 X 24-Pin ATX Main Power Connector
2 X 8-Pin ATX 12V Power Connectors
1 X CPU Fan Header
1 X CPU Fan/Water Cooling Pump Header
3 X System Fan Headers
1 X System Fan/Water Cooling Pump Header
2 X Addressable LED Strip Headers
3 X M.2 Socket 3 Connectors
4 X SATA 6Gb/S Connectors
1 X Front Panel Header
1 X Front Panel Audio Header
1 X S/PDIF Out Header
1 X USB Type-C Header, With USB 3.2 Gen 1 Support
1 X USB 3.2 Gen 1 Header
2 X USB 2.0/1.1 Headers
2 X Thunderbolt Add-In Card Connectors
1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 Module Only)
1 X Reset Button
1 X Q-Flash Plus Button
1 X Reset Jumper
1 X Clear CMOS Jumper |
| USB |
Chipset:
- 1 X USB Type-C Port On The Back Panel, With USB 3.2 Gen 2 Support
- 1 X USB Type-C Port With USB 3.2 Gen 1 Support, Available Through The Internal USB Header
- 1 X USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel
- 6 X USB 3.2 Gen 1 Ports (4 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header)
- 2 X USB 2.0/1.1 Ports On The Back Panel
Chipset+USB 2.0 Hub:
- 4 X USB 2.0/1.1 Ports, Available Through The Internal USB Headers |
| Technical Info |
| Supported OS |
Support For Windows 11 64-Bit
Support For Windows 10 64-Bit |
| Controller |
I/O Controller
ITE I/O Controller Chip |
| BIOS |
1 X 256 Mbit Flash
Use Of Licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Special Features |
| Features |
Support For GIGABYTE Control Center (GCC)
Support For Q-Flash
Support For Q-Flash Plus
Support For Smart Backup |
| Software |
Norton Internet Security (OEM Version)
LAN Bandwidth Management Software |
| Physical Specification |
| Form Factor |
ATX |
| Expansion Slots |
CPU:
- 1 X PCI Express X16 Slot, Supporting PCIe 5.0 And Running At X16 (PCIEX16)
* The PCIEX16 Slot Can Only Support A Graphics Card Or An NVMe SSD. If Only One Graphics Card Is To Be Installed,
Be Sure To Install It In The PCIEX16 Slot.
Chipset:
- 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X4 (PCIEX4)
- 2 X PCI Express X16 Slots, Supporting PCIe 3.0 And Running At X1 (PCIEX1_1, PCIEX1_4)
- 1 X PCI Express X1 Slot, Supporting PCIe 3.0 And Running At X1 (PCIEX1_3) |
| Dimension |
30.5cm X 24.4cm |
| Warranty Information |
| Warranty |
3 Years |

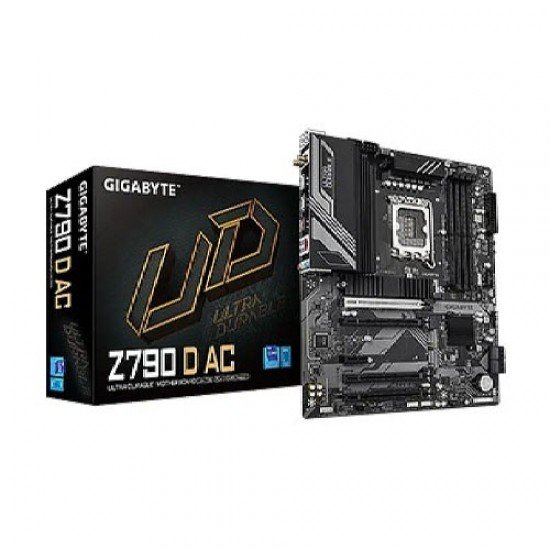

GIGABYTE Z790 D AC 14th, 13th, And 12th Gen ATX Motherboard
The GIGABYTE Z790 D AC 14th, 13th, And 12th Gen ATX Motherboard is a powerhouse platform designed for gamers, content creators, and PC enthusiasts seeking ultimate performance and versatility. Engineered to support Intel’s 14th, 13th, and 12th Generation Core processors, this motherboard leverages the robust Z790 chipset to deliver unparalleled processing capabilities, multitasking efficiency, and enhanced connectivity. Built on the ATX form factor, it combines durability with ample expansion slots, allowing users to integrate high-end GPUs, multiple storage drives, and advanced cooling solutions seamlessly. Equipped with support for DDR5 memory, the Z790 D AC ensures lightning-fast data transfer rates and exceptional stability, enabling users to run demanding applications, heavy multitasking workloads, and gaming at peak performance. Its advanced power delivery system and thermal design maintain optimal efficiency even under intensive workloads. Networking is taken to the next level with integrated Wi-Fi 6E and Intel 2.5GbE LAN, providing ultra-fast, low-latency internet connectivity for online gaming, streaming, and large file transfers. The motherboard’s storage capabilities are equally impressive, offering multiple M.2 slots with PCIe 5.0 support for ultra-fast NVMe SSDs, alongside high-speed SATA ports for traditional drives. Expansion possibilities include PCIe 5.0 x16 slots for next-gen GPUs and additional PCIe slots for cards like sound, capture, or network adapters. Robust USB connectivity, including USB 3.2 Gen 2x2 Type-C ports, ensures seamless peripheral integration. Additionally, the motherboard features comprehensive BIOS support, advanced thermal controls, RGB Fusion lighting, and durable components to provide reliability and aesthetics in one complete package. The
GIGABYTE Z790 D AC
motherboard stands out as a versatile and future-ready foundation for building a high-performance PC.
Features of GIGABYTE Z790 D AC 14th, 13th, And 12th Gen ATX Motherboard
Designed for gamers, creators, and enthusiasts, this motherboard combines cutting-edge performance, connectivity, and durability. Key features include:
- Processor Support: Compatible with Intel 14th, 13th, and 12th Gen Core processors.
- Memory: Supports DDR5 memory with high-frequency overclocking capability.
- Expansion Slots: PCIe 5.0 x16 for GPUs, additional PCIe slots for expansion cards.
- Storage: Multiple M.2 slots with PCIe 5.0 support and high-speed SATA ports.
- Networking: Integrated Wi-Fi 6E and Intel 2.5GbE LAN for fast, stable connectivity.
- USB Connectivity: USB 3.2 Gen 2x2 Type-C and multiple high-speed ports.
- Thermal Design: Advanced heatsinks and fan headers for optimal cooling.
- Audio: High-quality onboard audio with noise reduction and enhanced clarity.
- BIOS & Software: User-friendly BIOS interface and GIGABYTE utility software.
- Durability: Premium components and enhanced PCB design for stability and longevity.
