| Processor | |
| CPU Socket | LGA1700 Socket: Support For The 14th, 13th, And 12th Generation Intel Core, Pentium Gold And Celeron Processors (Go To GIGABYTE's indexit For The Latest CPU Support List.) L3 Cache Varies With CPU |
| Mainboard | |
| Chipset | Intel Z790 Express Chipset |
| Memory | |
| Memory Platform | 14th And 13th Generation Intel Core I9/I7 Processors: - Support For DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) / 6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/S Memory Modules 13th Generation Intel Core I5/I3 And 12th Generation Intel Core, Pentium Gold And Celeron Processors: - Support For DDR5 4800/4400 MT/S Memory Modules 4 X DDR5 DIMM Sockets Supporting Up To 192 GB (48 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules (The CPU And Memory Configuration May Affect The Supported Memory Types, Data Rate (Speed), And Number Of DRAM Modules, Please Refer To "Memory Support List" On GIGABYTE's indexit For More Information.) |
| Storage | |
| Storage Type | CPU: - 1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU) Chipset: - 1 X M.2 Connectors (Socket 3, M Key, Type 2280 PCIe 4.0 X4/X2 SSD Support) (M2P_SB) - 1 X M.2 Connectors (Socket 3, M Key, Type 2280 SATA And PCIe 4.0 X4/X2 SSD Support) (M2M_SB) - 4 X SATA 6Gb/S Connectors RAID 0, RAID 1, RAID 5, And RAID 10 Support For NVMe SSD Storage Devices RAID 0, RAID 1, RAID 5, And RAID 10 Support For SATA Storage Devices |
| Graphics | |
| Graphics Chipset | Integrated Graphics Processor-Intel HD Graphics Support: - 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.1 Version And HDCP 2.3. ** Support For Native HDMI 2.1 TMDS Compatible Ports. - 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz * Support For DisplayPort 1.2 Version And HDCP 2.3 (Graphics Specifications May Vary Depending On CPU Support.) |
| Audio & Microphone | |
| Audio Technology | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel * You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-Channel Audio, Access The Audio Software For Audio Settings. Support For S/PDIF Out |
| Networking & Connectivity | |
| Wireless Connectivity | Intel Wireless- AC 9560 (PCB Rev. 1.0) - WIFI 802.11 A, B, G, N, Ac, Supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.1 - Support 11ac 160MHz Wireless Standard (Actual Data Rate May Vary Depending On Environment And Equipment.) |
| LAN | Realtek 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Ports | |
| Connector | Back Panel Connectors: 1 X PS/2 Keyboard/Mouse Port 1 X USB Type-C Port, With USB 3.2 Gen 2 Support 1 X USB 3.2 Gen 2 Type-A Port (Red) 4 X USB 3.2 Gen 1 Ports 2 X USB 2.0/1.1 Ports 2 X SMA Antenna Connectors (2T2R) 1 X HDMI Port 1 X DisplayPort 1 X RJ-45 Port 3 X Audio Jacks |
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector 2 X 8-Pin ATX 12V Power Connectors 1 X CPU Fan Header 1 X CPU Fan/Water Cooling Pump Header 3 X System Fan Headers 1 X System Fan/Water Cooling Pump Header 2 X Addressable LED Strip Headers 3 X M.2 Socket 3 Connectors 4 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X S/PDIF Out Header 1 X USB Type-C Header, With USB 3.2 Gen 1 Support 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 2 X Thunderbolt Add-In Card Connectors 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 Module Only) 1 X Reset Button 1 X Q-Flash Plus Button 1 X Reset Jumper 1 X Clear CMOS Jumper |
| USB | Chipset: - 1 X USB Type-C Port On The Back Panel, With USB 3.2 Gen 2 Support - 1 X USB Type-C Port With USB 3.2 Gen 1 Support, Available Through The Internal USB Header - 1 X USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel - 6 X USB 3.2 Gen 1 Ports (4 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) - 2 X USB 2.0/1.1 Ports On The Back Panel Chipset+USB 2.0 Hub: - 4 X USB 2.0/1.1 Ports, Available Through The Internal USB Headers |
| Technical Info | |
| Supported OS | Support For Windows 11 64-Bit Support For Windows 10 64-Bit |
| Controller | I/O Controller ITE I/O Controller Chip |
| BIOS | 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Special Features | |
| Features | Support For GIGABYTE Control Center (GCC) Support For Q-Flash Support For Q-Flash Plus Support For Smart Backup |
| Software | Norton Internet Security (OEM Version) LAN Bandwidth Management Software |
| Physical Specification | |
| Form Factor | ATX |
| Expansion Slots | CPU: - 1 X PCI Express X16 Slot, Supporting PCIe 5.0 And Running At X16 (PCIEX16) * The PCIEX16 Slot Can Only Support A Graphics Card Or An NVMe SSD. If Only One Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. Chipset: - 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X4 (PCIEX4) - 2 X PCI Express X16 Slots, Supporting PCIe 3.0 And Running At X1 (PCIEX1_1, PCIEX1_4) - 1 X PCI Express X1 Slot, Supporting PCIe 3.0 And Running At X1 (PCIEX1_3) |
| Dimension | 30.5cm X 24.4cm |
| Warranty Information | |
| Warranty | 3 Years |

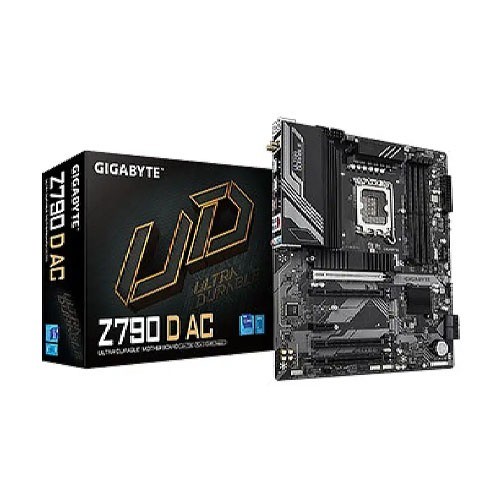

The latest price of GIGABYTE Z790 D AC 14th, 13th, And 12th Gen ATX Motherboard in Bangladesh is 31,770৳ You can buy the GIGABYTE Z790 D AC 14th, 13th, And 12th Gen ATX Motherboard at best price from our Website or visit any of our showrooms.
