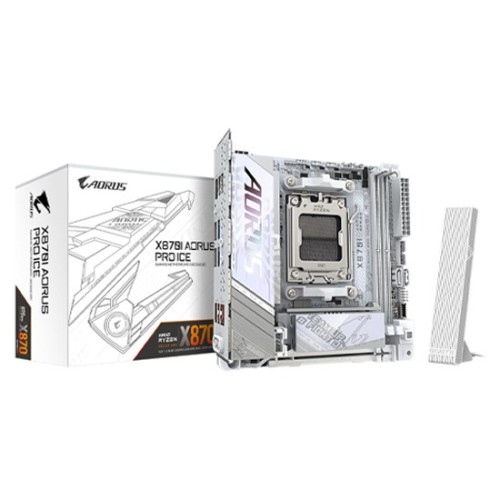

Name: GIGABYTE X870I AORUS PRO ICE AMD Motherboard
Brand: GIGABYTE
Price: 68000.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

GIGABYTE X870I AORUS PRO ICE AMD Motherboard

-1 % In Stock

GIGABYTE X870I AORUS PRO ICE AMD Motherboard

Stock: In Stock
Brand: GIGABYTE
Model: X870I AORUS PRO ICE

Based on 1 reviews. - Write a review

68,000৳

69,000৳

Ex Tax: 68,000৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Chipset: AMD X870
- I/O Controller: iTE® I/O Controller Chip Form
- Factor; Mini-ITX Form Factor: 17.0cm x 17.0cm
- Operating System: Support for Windows 11 64-bit

View More Info

Specification

Basic Information
Supported CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Operating System	Support for Windows 11 64-bit
Chipset
Chipset	AMD X870
Input Devices
Expansion Slot	1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Motherboard
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory	Support for DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modulesB 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
External Features
Expansion Slots	1 x PCI Express x16 slot, integrated in the CPU:V AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Connector & Ports
USB (s)	CPU+ASMedia USB4® controller: - 1 x USB4® USB Type-C® port on the back panel CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek® Wi-Fi 7 RTL8922AE - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no supportdriver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Audio	Realtek® ALC4080 CODEC High Definition Audio 2-channel
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x speaker headerV 1 x front panel audio header (routed from the adapter card on the rear panel) 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x reset jumper 1 x Clear CMOS jumper 1 x chassis intrusion header
Ports & Slots
Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Warranty Information
Warranty	3 Years

Description

GIGABYTE X870I AORUS PRO ICE AMD Motherboard

The GIGABYTE X870I AORUS PRO ICE is a high-performance Mini-ITX AM5 motherboard designed for gamers, content creators, and PC enthusiasts who want exceptional power in a compact form factor. Equipped with the AMD X870 chipset, it supports the latest AMD Ryzen 9000, 8000, and 7000 Series processors, delivering outstanding next-generation performance with advanced efficiency and speed. Despite its small 17 cm x 17 cm size, this motherboard offers premium-grade components and cutting-edge connectivity, making it ideal for small form factor (SFF) PC builds. With dual DDR5 DIMM slots, the board supports up to 128GB of ultra-fast DDR5 memory, reaching speeds as high as 8400MHz (OC). This ensures smooth multitasking, faster application performance, and improved gaming stability. Its powerful PCIe expansion slot supports PCIe 5.0, providing maximum bandwidth for modern graphics cards or NVMe SSDs. For connectivity, the X870I AORUS PRO ICE stands out with USB4 Type-C, offering ultra-fast data transfer and DisplayPort output up to 3840x2160 at 240Hz. Additionally, it includes HDMI 2.1, multiple USB 3.2 ports, and internal USB Type-C support, ensuring excellent device compatibility. Its networking features include Realtek 2.5GbE LAN and the latest Wi-Fi 7 with Bluetooth 5.4, providing ultra-low latency and future-proof wireless performance. Storage flexibility is ensured with two M.2 PCIe slots and dual SATA 6Gb/s ports, allowing for high-speed NVMe SSD configurations. The Realtek ALC4080 audio codec ensures crisp and immersive high-definition sound for gaming and entertainment. The motherboard also supports RGB customization through ARGB Gen2 and RGB headers, along with features like Q-Flash Plus, Smart Backup, and GIGABYTE’s powerful Control Center software.
