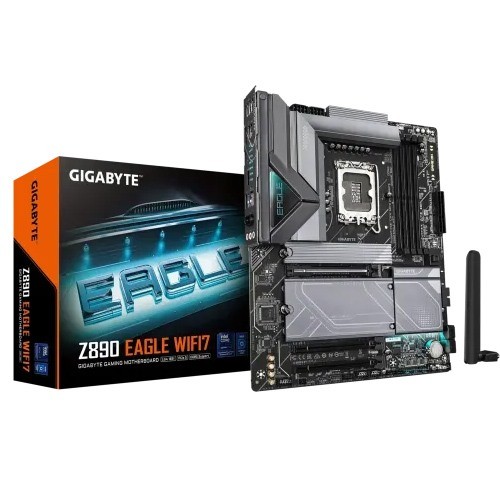

Name: Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard
Brand: GIGABYTE
Price: 37000.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard

-1 % In Stock

Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard

Stock: In Stock
Brand: GIGABYTE
Model: Z890 EAGLE WIFI7

Based on 1 reviews. - Write a review

37,000৳

37,500৳

Ex Tax: 37,000৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- Supported CPU: Intel Core Ultra Processors (Series 2)
- Supported RAM: 4x DDR5
- Graphics Output: 1x DisplayPort, 1x USB4 Type-C (DP)
- Features: 4x M.2, Intel Wi-Fi 7, Bluetooth 5.4

View More Info

Specification

Physical Specification
Slots	4 x DIMM
Supported Memory	Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Maximum Memory	256GB (64 GB single DIMM capacity) of system memory
Basic Information
Supported CPU	Intel Core Ultra Processors(Series 2)
Chipset	Intel Z890 Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Type	DDR5
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
M.2 Socket	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
Graphics
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version (Graphics specifications may vary depending on CPU support.)
Connector & Ports
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Display Port (s)	- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version
LAN Port (s)	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors
Audio	1 x front panel audio header 3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x USB4® USB Type-C® port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others Information
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Warranty Information
Warranty	3 Year Warranty

Description

Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard

The Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard is a powerful, future-ready platform designed to support Intel’s latest Core Ultra Series 2 processors, delivering next-level performance for gamers, creators, and professionals. Powered by the advanced Intel Z890 chipset, this motherboard ensures excellent system stability, high-speed data handling, and optimized power delivery for demanding workflows. With support for DDR5 memory speeds up to 9200MHz (O.C.), the Z890 EAGLE enables ultra-fast multitasking and improved latency, making it ideal for high-end gaming and productivity setups. The board includes four DIMM slots, allowing up to 256GB of RAM, ensuring exceptional performance scalability. For storage, the motherboard features a robust configuration of four M.2 slots, including one PCIe 5.0 x4 slot for next-gen NVMe SSDs, delivering extremely fast boot-up and application load times. Additional PCIe 4.0 M.2 slots and four SATA ports ensure wide compatibility for various storage devices, along with RAID 0/1/5/10 support for added performance and data protection. Graphics flexibility is enhanced by multiple display options, including USB4 Type-C with DisplayPort, and DisplayPort 2.1, supporting up to 3840×2160@144Hz for smooth, high-resolution visuals. A PCIe 5.0 x16 slot ensures full bandwidth for modern GPUs, maximizing gaming and rendering performance. Connectivity is one of the motherboard’s strongest features, with Wi-Fi 7, Bluetooth 5.4, and Realtek 2.5GbE LAN, delivering fast, low-latency networking for online gaming and streaming. The board includes numerous USB ports, including USB 3.2 Gen 2, USB 3.2 Gen 1, and USB4, ensuring excellent compatibility with modern peripherals. Additional features like Q-Flash Plus, Smart Backup, multiple RGB and ARGB headers, and high-quality Realtek audio further enhance customization and usability. The Gigabyte Z890 EAGLE WIFI7 stands as a reliable, versatile, and performance-focused motherboard for next-generation PC builds.

Features Of Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard

Supports Intel Core Ultra Series 2 Processors: Designed for the latest LGA 1851 CPUs, ensuring high performance for gaming, content creation, and professional workloads.
High-Speed DDR5 Memory Support: Equipped with 4 DIMM slots, supporting up to DDR5 9200(O.C.) and a maximum 256GB capacity, enabling smooth multitasking and advanced computing performance.
Next-Gen Graphics Output: Features 1 DisplayPort and USB4 Type-C port with DisplayPort support, delivering ultra-clear visuals at 3840×2160@144Hz, ideal for gaming and professional displays.
Ultra-Fast Storage Options: Includes 4 M.2 slots, supporting PCIe 5.0 and PCIe 4.0 SSDs, and 4 SATA 6Gb/s ports, with RAID 0/1/5/10 support for high-speed, reliable storage solutions.
Advanced Wireless and Wired Connectivity: Integrated Intel Wi-Fi 7, Bluetooth 5.4, and Realtek 2.5GbE LAN for fast, low-latency network performance suitable for online gaming and streaming.
Robust Expansion and I/O: Offers PCIe 5.0 x16 slot, multiple USB 3.2 Gen 2/Gen 1 ports, USB Type-C, Thunderbolt connectors, and TPM header for secure and versatile system expansion.
Premium Audio and System Controls: Powered by Realtek ALC1220 high-definition audio, multiple RGB/ARGB headers, Q-Flash Plus, and Smart Backup, allowing complete system customization and high-quality audio experience.
