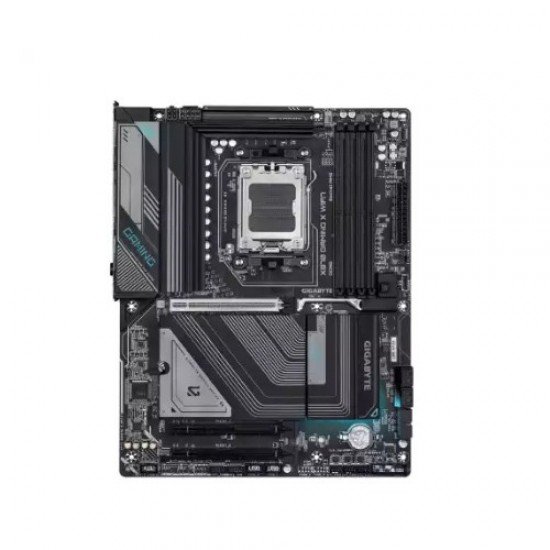

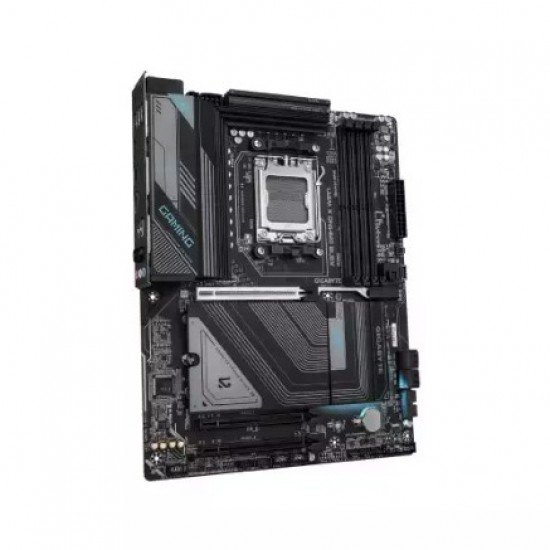

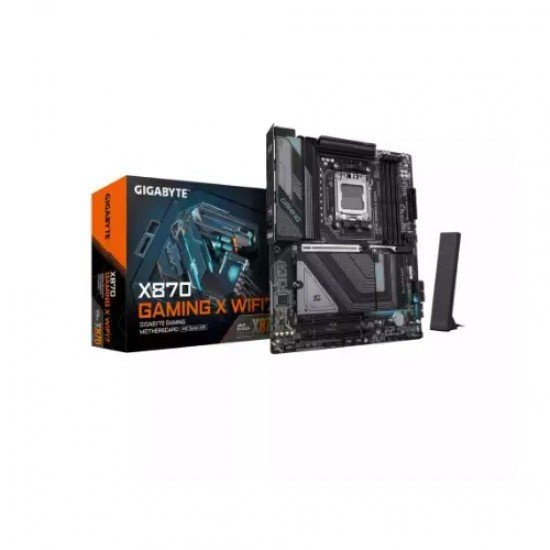

Name: Gigabyte X870 GAMING X WIFI7 AM5 DDR5 ATX Motherboard
Brand: Gigabyte
Price: 37000.00 BDT
Availability: OutOfStock
Rating: 5 (1 reviews)

Gigabyte X870 GAMING X WIFI7 AM5 DDR5 ATX Motherboard

-1 % In Stock

Gigabyte X870 GAMING X WIFI7 AM5 DDR5 ATX Motherboard

Stock: In Stock
Brand: Gigabyte
Model: X870 GAMING X WIFI7

Based on 1 reviews. - Write a review

37,000৳

37,500৳

Ex Tax: 37,000৳

Qty

Buy Now

Buy Now Add to Compare

Add to Wish List Compare this Product

Key Features

- CPU: AMD Socket AM5
- Chipset: AMD X870
- Memory: Support for DDR5
- Storage: 1 x M.2 connector

View More Info

Specification

Physical Specification
Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Basic Information
Supported CPU	AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors
Chipset	AMD X870
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory	Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Operating System	Support for Windows 11 64-bit
Graphics
Graphics	Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Input Devices

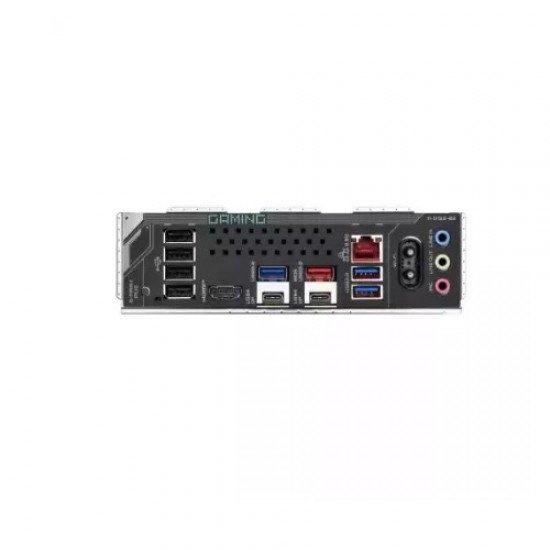

External I/O Ports	1 x Q-Flash Plus button 2 x antenna connectors (2T2R) 1 x HDMI port(Note) 2 x USB4 USB Type-C ports (DisplayPort) 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Connectivity
USB	CPU+ASMedia USB4 controller: - 2 x USB4 USB Type-C ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB 3.2 Gen 1 port on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers
Connector & Ports
HDMI	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
RAID	4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Network & Connectivity
Bluetooth	- BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WiFi	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
Physical Specification
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Others Information
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup I/O Controller iTE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
Warranty Information
Warranty	03 years

Description

Gigabyte X870 GAMING X WIFI7 AM5 DDR5 ATX Motherboard

The Gigabyte X870 GAMING X WIFI7 AM5 DDR5 ATX Motherboard is a next-generation performance platform designed for gamers, creators, and power users who demand cutting-edge speed, stability, and future-ready technology. Powered by the advanced AMD X870 chipset, it supports the latest AMD Ryzen 9000, 8000, and 7000 Series processors, ensuring outstanding compute performance for gaming, productivity, and heavy workloads. With four DDR5 DIMM slots supporting speeds up to 8200+ MHz (OC) and a total capacity of 256GB, this motherboard delivers exceptional memory bandwidth, smooth multitasking, and powerful overclocking capabilities with AMD EXPO and Intel XMP profiles. For storage, the board includes three high-speed M.2 slots supporting PCIe 5.0 and PCIe 4.0 SSDs, along with four SATA 6Gb/s ports for flexible expansion. PCIe 5.0 graphics card support ensures maximum GPU performance, making it ideal for high-end gaming builds. The integrated graphics system provides HDMI and dual USB4 Type-C DisplayPort outputs, supporting resolutions up to 4K and 8K, perfect for content creators and multi-display setups. Connectivity is a major highlight with Realtek 2.5GbE LAN, WiFi 7, and Bluetooth 5.4, offering ultra-fast networking, low latency, and seamless wireless performance. The Realtek HD Audio codec brings immersive 7.1-channel sound quality, enhancing gaming and entertainment experiences. The motherboard includes multiple fan headers, RGB headers, water pump support, and comprehensive temperature sensors to maintain superior thermal control. Additional premium features include Q-Flash Plus, Smart Backup, and full compatibility with Windows 11 64-bit.

Features Of Gigabyte X870 GAMING X WIFI7 AM5 DDR5 ATX Motherboard

Powerful AM5 CPU Support: Compatible with AMD Ryzen 9000, 8000, and 7000 Series processors, ensuring exceptional performance for gaming, rendering, and multitasking.
Advanced AMD X870 Chipset: Provides enhanced stability, improved bandwidth, and next-generation connectivity for high-end computing performance.
High-Speed DDR5 Memory Support: Includes 4 DDR5 DIMM slots supporting up to 256GB and speeds up to 8200+ MHz (OC) with both AMD EXPO and Intel XMP profiles.
Ultra-Fast Storage Options: Offers three M.2 slots supporting PCIe 5.0/4.0 SSDs and four SATA 6Gb/s ports for faster boot times and flexible storage expansion.
Cutting-edge Graphics & Display Support: Features dual USB4 Type-C DisplayPort outputs and HDMI, supporting high-resolution 4K/8K displays for content creation and multi-monitor setups.
Next-Level Wireless & Wired Networking: Equipped with WiFi 7, Bluetooth 5.4, and 2.5GbE LAN for ultra-fast, low-latency online gaming and reliable data transfer.
Premium Build & Smart Utilities: Includes Q-Flash Plus, Smart Backup, advanced thermal monitoring, multiple RGB headers, and full support for Windows 11 64-bit.
