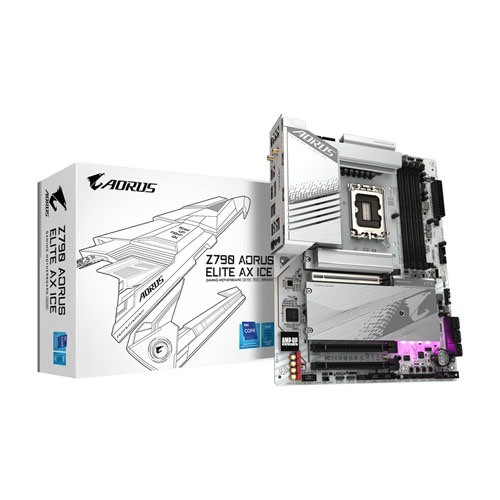

GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX MOTHERBOARD

 GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX MOTHERBOARD
 GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX MOTHERBOARD
 GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX MOTHERBOARD
 GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX MOTHERBOARD
 GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX MOTHERBOARD
 GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX MOTHERBOARD
 GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX MOTHERBOARD
 GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX MOTHERBOARD
 GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX MOTHERBOARD
 GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX MOTHERBOARD
GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX MOTHERBOARD
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: Z790 AORUS ELITE AX ICE
44,184৳
Ex Tax: 44,184৳

Key Features

Description

Processor
Supported CPU LGA1700 Socket: Support For The 13th And 12th Generation Intel Core
Pentium Gold And Celeron Processors
L3 Cache Varies With CPU
Mainboard
Chipset Intel Z790 Express Chipset
Memory
Memory Support For DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) /
6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 Memory Modules
4 X DDR5 DIMM Sockets Supporting Up To 192 GB (48 GB Single DIMM Capacity) Of System Memory
Dual Channel Memory Architecture
Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode)
Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules
Support For Extreme Memory Profile (XMP) Memory Modules
Storage
Supported Storage CPU:
1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU)
Chipset:
2 X M.2 Connectors (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2P_SB, M2Q_SB)
1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 SATA And PCIe 4.0 X4 SSD Support) (M2M_SB)
6 X SATA 6Gb/S Connectors
RAID 0, RAID 1, RAID 5, And RAID 10 Support For NVMe SSD Storage Devices
RAID 0, RAID 1, RAID 5, And RAID 10 Support For SATA Storage Devices
Graphics
Graphics 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz
* Support For HDMI 2.0 Version And HDCP 2.3.
1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60
* Support For DisplayPort 1.2 Version And HDCP 2.3
Audio & Microphone
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-Channel
Support For S/PDIF Out
Networking & Connectivity
LAN Realtek 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps)
WiFi Intel® Wi-Fi 6E AX211 (PCB Rev. 1.0)
WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands
Support For 11ax 160MHz Wireless Standard And Up To 2.4 Gbps Data Rate
Realtek® Wi-Fi 6E RTL8852CE (PCB Rev. 1.1)
WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands
Support For 11ax 160MHz Wireless Standard And Up To 2.4 Gbps Data Rate
Bluetooth BLUETOOTH 5.3
Ports
Slots CPU:
1 X PCI Express X16 Slot, Supporting PCIe 5.0 And Running At X16 (PCIEX16)
* For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot.
Chipset:
1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X4 (PCIEX4_1)
1 X PCI Express X16 Slot, Supporting PCIe 3.0 And Running At X4 (PCIEX4_2)
Internal I/O Ports 1 X 24-Pin ATX Main Power Connector
2 X 8-Pin ATX 12V Power Connectors
1 X CPU Fan Header
1 X Water Cooling CPU Fan Header
3 X System Fan Headers
1 X System Fan/Water Cooling Pump Header
2 X Addressable LED Strip Headers
2 X RGB LED Strip Headers
4 X M.2 Socket 3 Connectors
6 X SATA 6Gb/S Connectors
1 X Front Panel Header
1 X Front Panel Audio Header
1 X USB Type-C® Header, With USB 3.2 Gen 2 Support
1 X USB 3.2 Gen 1 Header
2 X USB 2.0/1.1 Headers
2 X Thunderbolt™ Add-In Card Connectors
1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only)
1 X Reset Button
1 X Q-Flash Plus Button
1 X Clear CMOS Button
1 X Reset Jumper
1 X Clear CMOS Jumper
ITE® I/O Controller Chip
External I/O Ports 1 X USB Type-C® Port, With USB 3.2 Gen 2x2 Support
2 X USB 3.2 Gen 2 Type-A Ports (Red)
3 X USB 3.2 Gen 1 Ports
4 X USB 2.0/1.1 Ports
2 X SMA Antenna Connectors (2T2R)
1 X HDMI 2.0 Port
1 X DisplayPort
1 X RJ-45 Port
1 X Optical S/PDIF Out Connector
2 X Audio Jacks
USB Chipset:
1 X USB Type-C® Port On The Back Panel, With USB 3.2 Gen 2x2 Support
1 X USB Type-C® Port With USB 3.2 Gen 2 Support, Available Through The Internal USB Header
2 X USB 3.2 Gen 2 Type-A Ports (Red) On The Back Panel
5 X USB 3.2 Gen 1 Ports (3 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header)
Chipset+2 USB 2.0 Hubs:
8 X USB 2.0/1.1 Ports (4 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers)
HDMI 1 X HDMI Port
Technical Info
BIOS 1 X 256 Mbit Flash
Use Of Licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features
Special Features Support For GIGABYTE Control Center (GCC)
Support For Q-Flash
Support For Q-Flash Plus
Support For Smart Backup
Software Features Norton Internet Security (OEM Version)
LAN Bandwidth Management Software
Support For Windows 11 64-Bit
Support For Windows 10 64-Bit
Physical Specification
Form Factor ATX
Dimension 30.5cm X 24.4cm
Others
Other Features H/W Monitoring:
Voltage Detection
Temperature Detection
Fan Speed Detection
Water Cooling Flow Rate Detection
Fan Fail Warning
Fan Speed Control
Warranty Information
Warranty 03 Years Warranty


GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX MOTHERBOARD

Unleash the full potential of your system with the GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX Motherboard. This motherboard is designed for top-tier performance, featuring support for 13th and 12th Generation Intel Core processors through its LGA1700 socket. Its Intel Z790 Express Chipset provides a powerful foundation, and it offers a wide range of DDR5 memory support for incredibly fast data rates. The integrated Intel HD Graphics provide stunning visuals through HDMI and DisplayPort connections. Additionally, this motherboard incorporates Realtek Audio and 2.5GbE LAN for high-quality audio and network connectivity. With a range of expansion slots and M.2 connectors, it's ready for high-speed storage and expansion. The GIGABYTE BIOS, management software, and various unique features make system management a breeze. Plus, it's backed by a 3-year warranty, ensuring your system's performance and reliability. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Gigabyte Motherboard available at Techland BD is well recognized. The large selection of Motherboard available at Techland BD is well recognized.
